L08147 General Lighting IP20

Aluminium die-casting material and powder coating. Built-in LED Driver version. High level of visual comfort. Dimmable. CRI>90

Fixing SMD surface mounted downlight for general lighting, recessed light source. Uniform distribution. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. I OSRAM LED3030 CRI>90 I Built-in LED Driver version I Die casting aluminium housing, powder coated. metal baffle and the end cap, the milky pc diffuser optical 110° I Easy installation, suitable for ceiling mounted or pendant installations. I Standard color finishing: Matt white color I Matt black color I Customized color finishing, power changes are possible depending on the request and the quantity. I It is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

1400-2700lm
Built-in LED Driver
Aluminium die-casting lighting fixture, powder coated. PC diffuser
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V dimming
Ceiling Mounted
OSRAM LED3030 CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

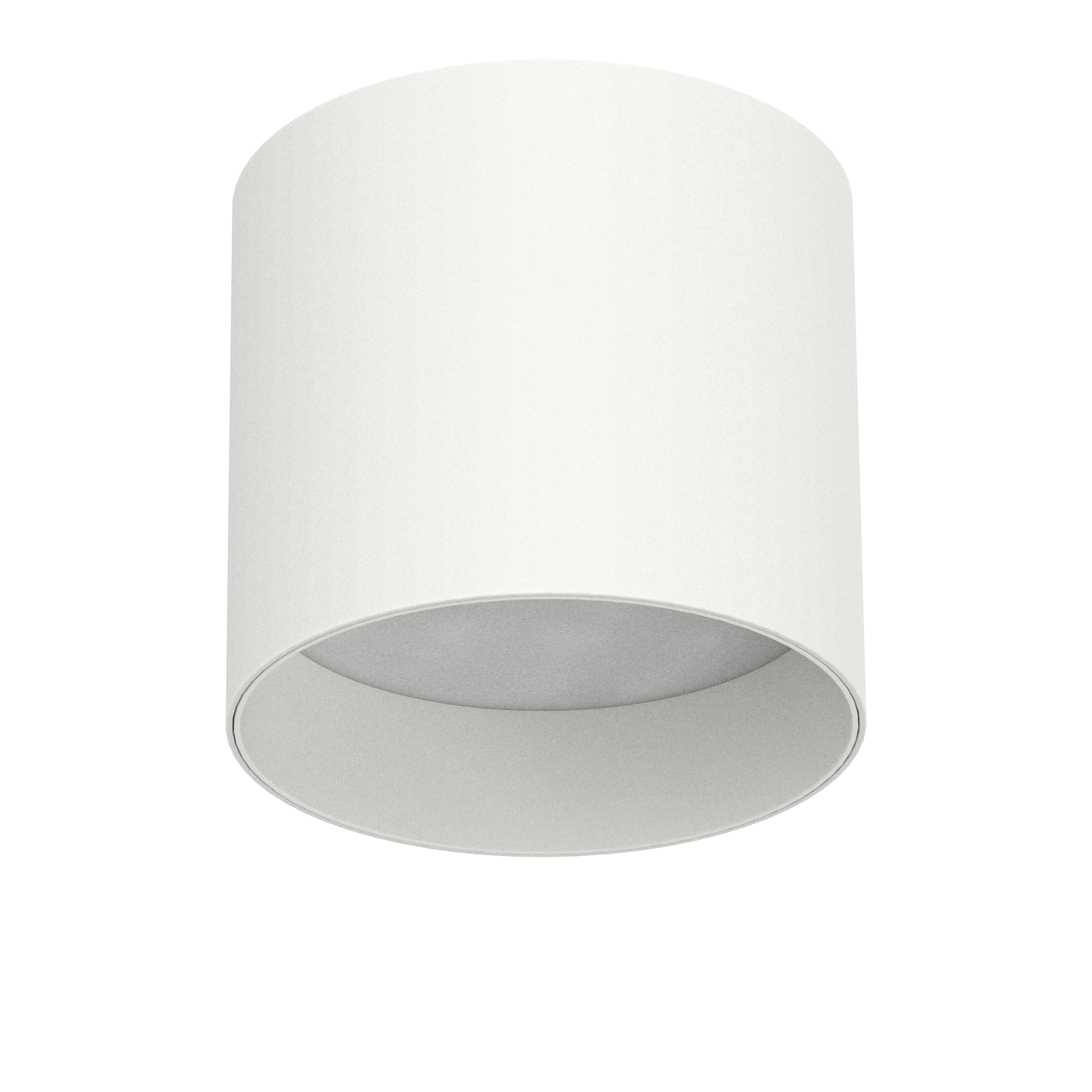

INTERIOR LED SURFACE MOUNTED DOWNLIGHT

L08147

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

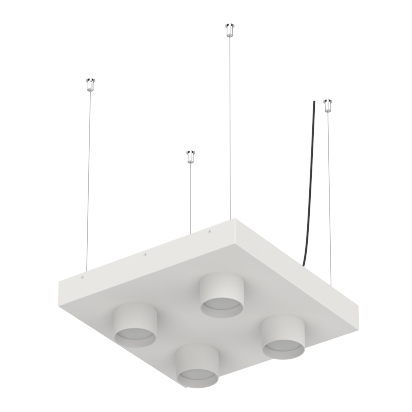

Ceiling mounted I Pendant

400-600mm cable with quick connector

OSRAM LED3030 3SDCM

Flicker Free, Built-in LED Driver version. PF0.95

Recessed light source. Visual comfort

0/1-10V I Triac I DALI dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

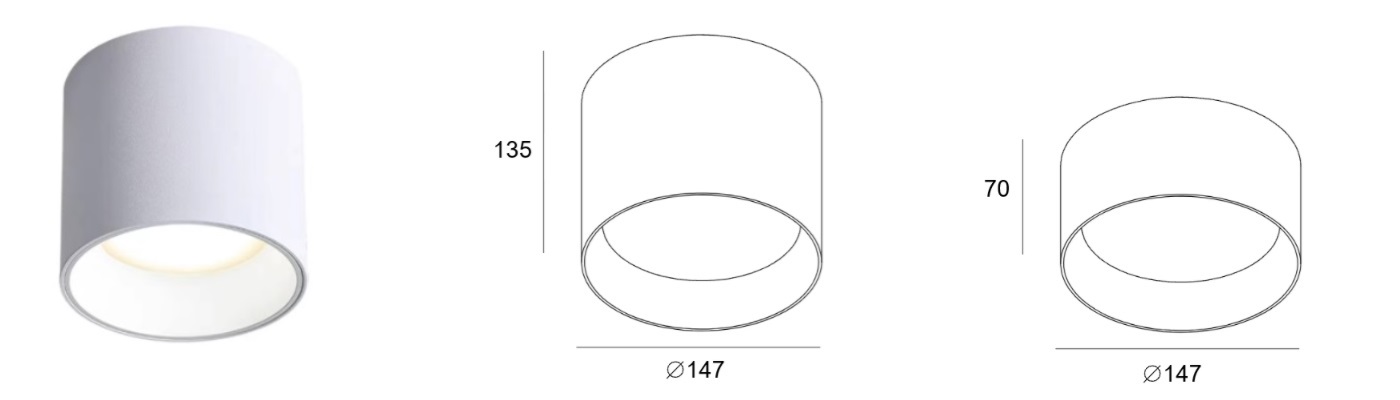

Dimension
mm

Cut Hole
mm

Power Supply
mA


L08147-15	15W	1400lm	147xH70mm	mm	350mA


L08147-30	30W	2700lm	147xH135mm	mm	700mA

FEATURES

Fixing SMD surface mounted downlight for general lighting, recessed light source. Uniform distribution. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. I OSRAM LED3030 CRI>90 I Built-in LED Driver version I Die casting aluminium housing, powder coated. metal baffle and the end cap, the milky pc diffuser optical 110° I Easy installation, suitable for ceiling mounted or pendant installations. I Standard color finishing: Matt white color I Matt black color I Customized color finishing, power changes are possible depending on the request and the quantity. I It is presented to its customers as a clean and non-dazzling product.

Built-in LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
15W 350mA 30W 700mA
