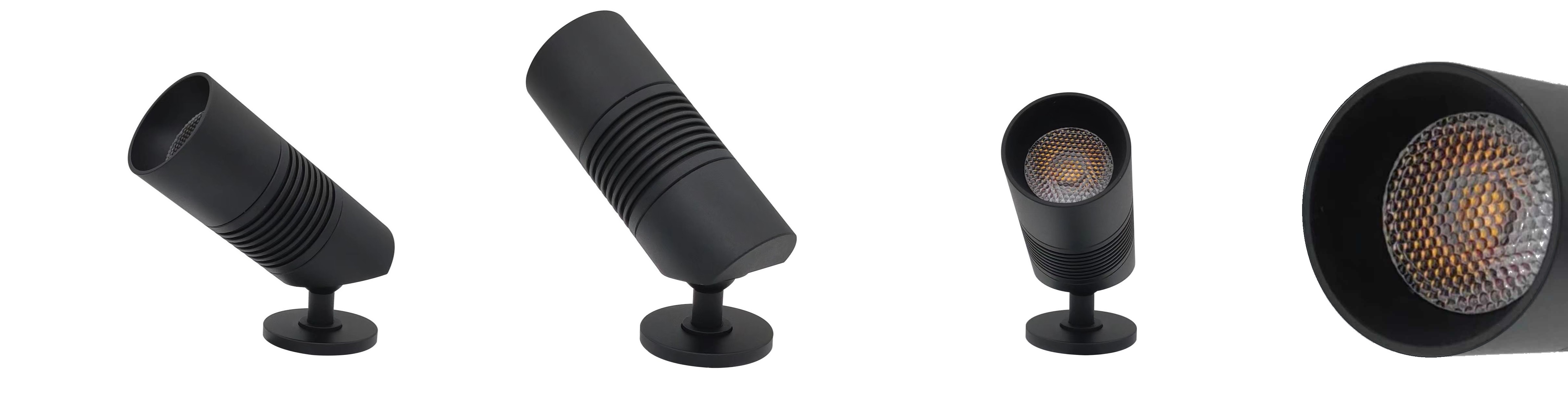

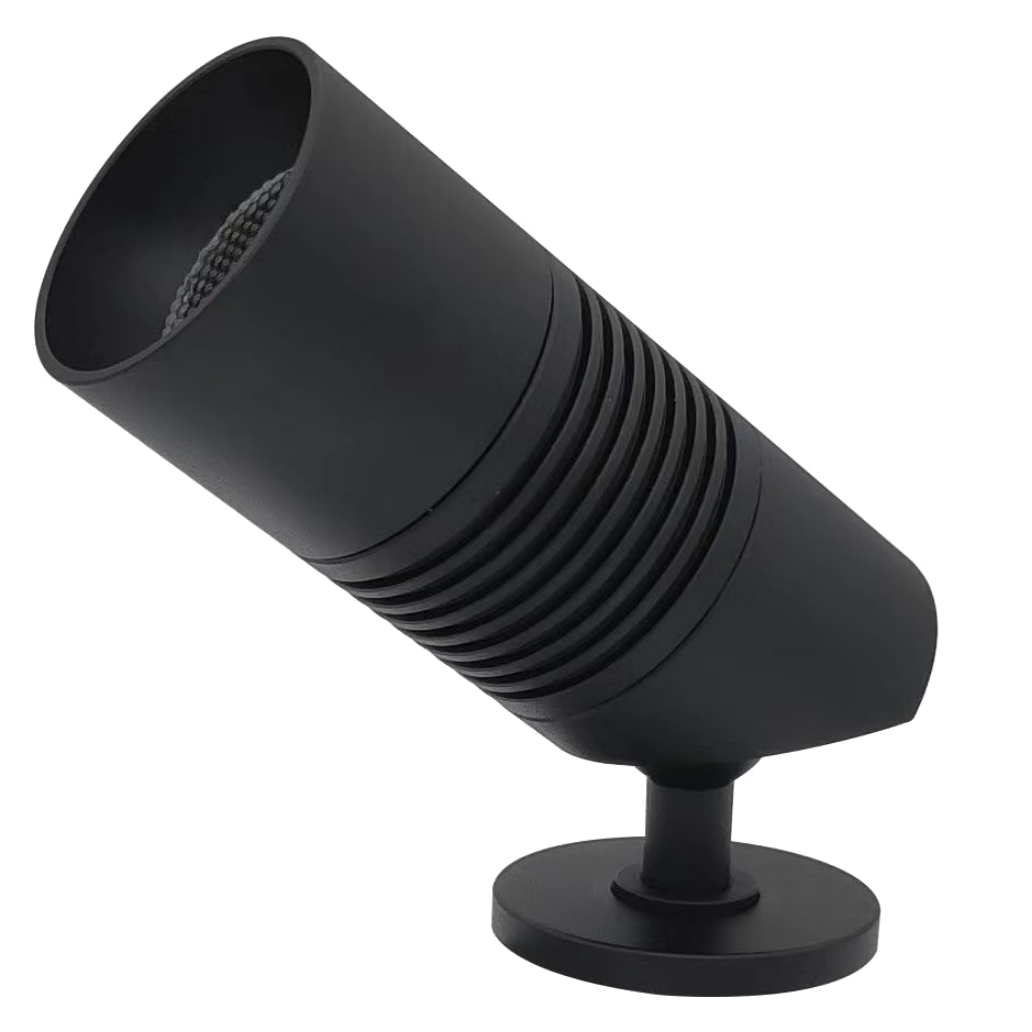

L70103 Spotlight IP65

An ideal accent lighting in residential or commercial places. Aluminium material, Flicker-Free, OSRAM LED, DC12-24V

Adjustable LED spot lighting, IP65 available for outdoor using too. Aluminium materials (#.6063) - black color finishing as standard. Customized color finishing, is possible depending on the request and the quantity. - Matched main dimming and Dali dimming. surface mounted installation as standard. Insert into the ground or recessed can be customized. Lens version,30degree output for a better visual comfort. lighting fixture is 80° adjustable and 355°rotatable, suitable for light up anyway where. 35000hours life time.

TECHICAL DATA

190-400lm
Remote LED Driver
Aluminium lighting fixture, Oxidation black color finishing
Flicker Free CRI90+ UGR<19
DALI dimmable
Surface Mounted as standard
Famous brand LED chips,- CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED SPOTLIGHT

L70103

IP65

CLASS III

Surface Mounted Installation

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM SMD LED

Europe Standard & CE Certificate. DC12-24V.

400-600mm cable with quick connector

DALI I Triac I 0/1-10V dimmable

An ideal accent lighting in residential or commercial places

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L70103-3	3W	190lm	25xH60mm	mm	500mA


L70103-5	5W	400lm	25xH60mm	mm	600mA

FEATURES

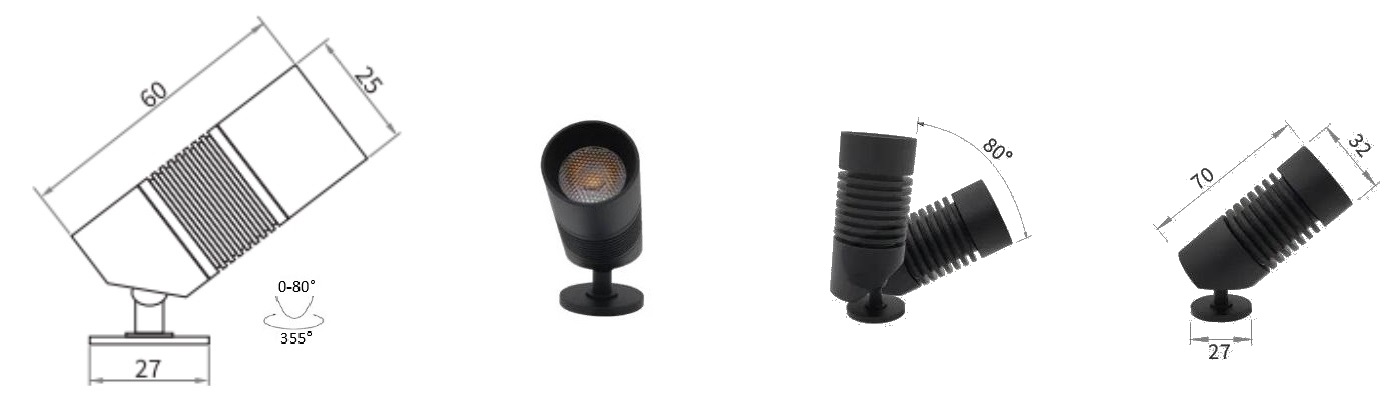

The IP65 lighting fixture matched 80° adjustable and 355°rotatable, suitable for light up anywhere. Lens version, 30° output for a better visual comfort. Osram branded LED. CRI>90.Aluminium materials (#.6063) - black color finishing as standard. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Matched main dimming and Dali dimming. Surface mounted installation as standard. Insert into the ground or recessed installation can be customized. 35000hours life time. DC12-24V.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
3W 500mA 5W 600mA
