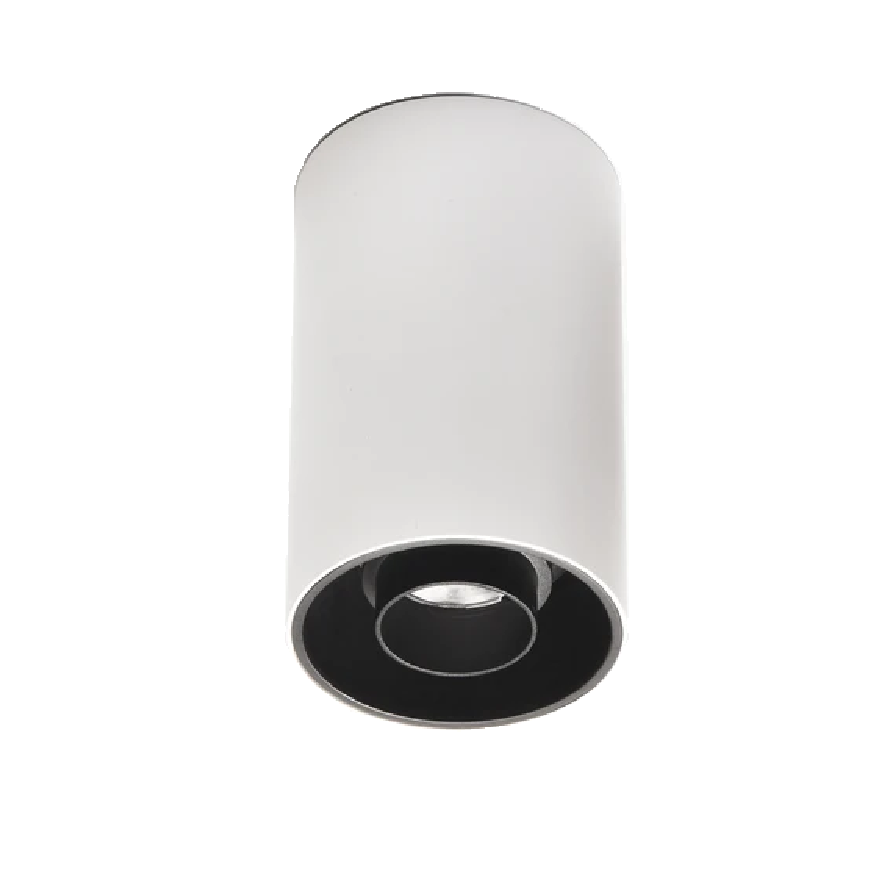

L08502 Spotlight IP20

Aluminium die-casting housing and PMMA diffuser, powder coated

The surface mounted ceilling luminaire matched double adjustability 25°adjustable 355°rotation,the new lens optic creates homogeneous lighting.An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of the body and baffle are possible depending on the request and the quantity. Achieved DALl dimmable. The standard product including on/off LED Driver.

TECHICAL DATA

850-1050lm
Built-in LED Driver
Double adjustability 25°adjustable 355°rotation.
Flicker Free CRI90+ UGR<19
300-400mm cable with quick connector.
Surface Mounted
Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L08502

IP20

CLASS III

Surface Mounted

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI97 3SDCM CITIZEN COB LED

Europe Standard & CE Certificate. 220-240V 50/60Hz

400-600mm cable with quick connector

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

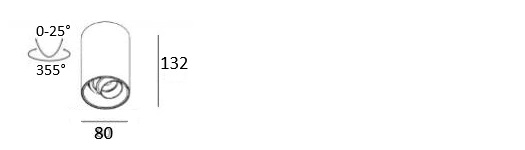

L08502-10	10W	850lm	80xH132mm	mm	250mA


L08502-12	12W	1050lm	80xH132mm	mm	300mA

FEATURES

Aluminium die-casting housing and PMMA diffuser, powder coated, The surface mounted ceilling luminaire matched double adjustability 25°adjustable 355°rotation,the new lens optic creates homogeneous lighting.An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of the body and baffle are possible depending on the request and the quantity. Achieved DALl dimmable. The standard product including on/off LED Driver.

Built-in LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 12W 300mA
