Ø70

L03252 Spotlight    IP20

Aluminium Die casting material, Flicker-Free, fixing spot light, surface mounted

Fixing Surface Mounted Spotlight. An ideal lighting solution in residential or commercial projects, High Definition optical lenses in thermoplastic material . aluminum-coated secondary reflector; -Uniform distribution. passive cooling through optimized heat sink; no visible screws; powder-coated die-cast body; standard product comes into White color or Black color, RAL colors on request; DALI dimmable, easy installation. It is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 800-420lm
  • Built-in LED Driver
  • Integrated Aluminium die casting lighting fixture,
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming
  • Surface Mounted I Pendant
  • Famous brand LED chips CRI90+ 3steps

Product is Europe Standard & CE Certificate.

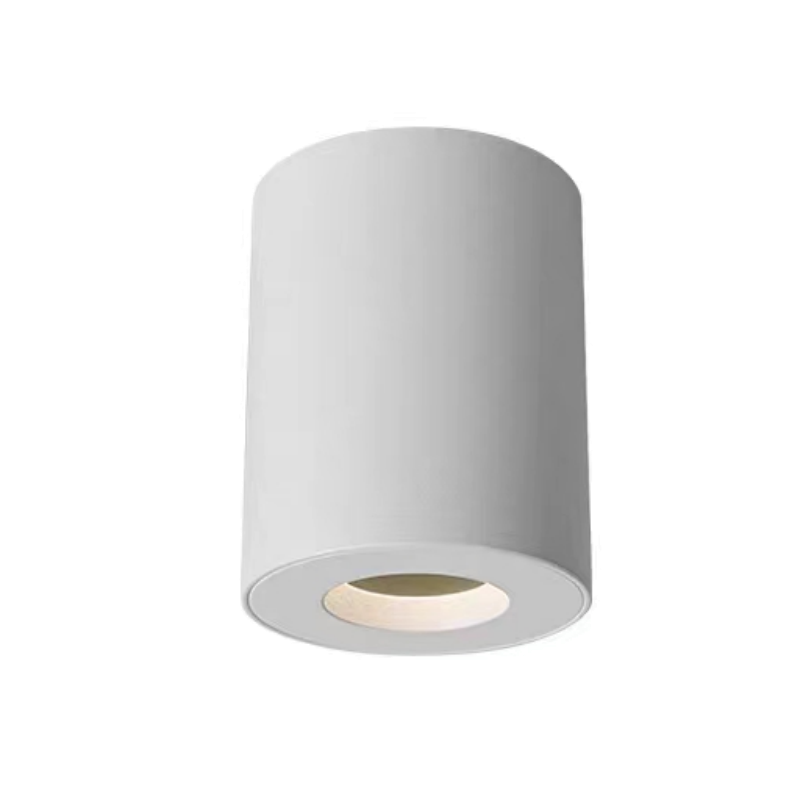

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L03252

IP20

CLASS III

Surface Mounted I Pendant

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM Famous brand COB LED

Europe Standard & CE Certificate. 220-240V 50/60Hz

400-600mm cable with quick connector

Warranty 5 Years

UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03252-12 12W 800lm
70xH90mm
mm		 300mA
L03252-7 7W 420lm
70xH90mm
mm		 130mA

FEATURES

Fixing Surface Mounted Spotlight. An ideal lighting solution in residential or commercial projects, High Definition optical lenses in thermoplastic material . aluminum-coated secondary reflector; -Uniform distribution. passive cooling through optimized heat sink; no visible screws; powder-coated die-cast body; standard product comes into White color or Black color, RAL colors on request; DALI dimmable, easy installation. It is presented to its customers as a clean and non-dazzling product.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
7W   130mA
