L02174 Spotlight    IP20

Aluminium Die-casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

The spotlight comprise a LED light module Ø35 , a metal baffle and a metal mounting frame. 25°adjustable 355°rotation, Its principle is equivalent to modularity and flexibility at its best. One housing, multiple options, with different light distributions for a wide varirty of applications, Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. Easy installations. It also facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the lighting modules in further finishing of the room, as the modules can be clicked into the frame afterwards.The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. dimmable, dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 560lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. I Trimless version
  • COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02174

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating I Trimless

65x65mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

UNIFORM DISTRIBUTION DIRECTIONAL LIGHTING

Code System Power
W
Output Lumen
lm

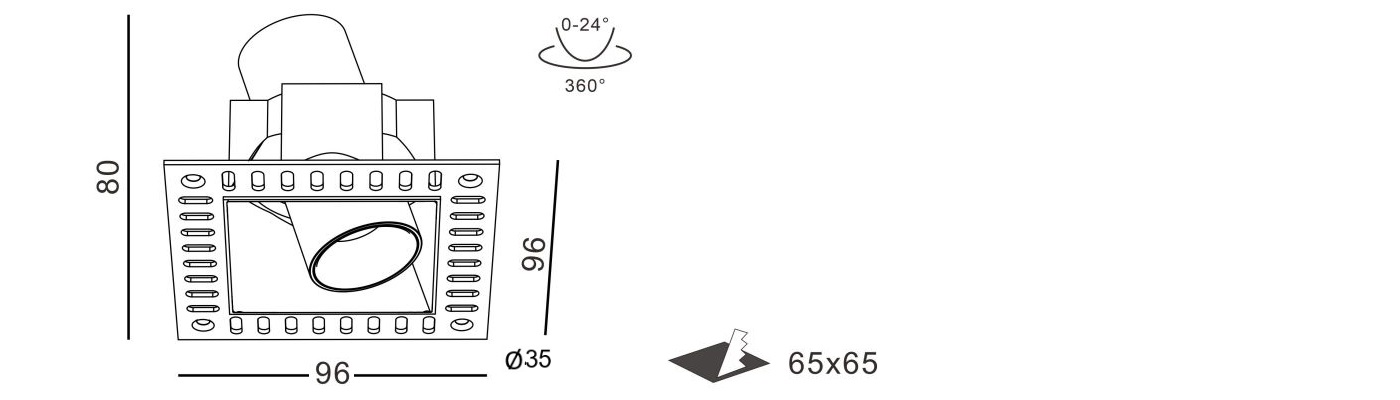

Dimension
mm
Cut Hole
mm
Power Supply
mA
L02174-7 7W 560lm
96x96xH80mm
65x65mm
200mA

FEATURES

The spotlight comprise a LED light module Ø35 , a metal baffle and a metal mounting frame. 25°adjustable 355°rotation, Its principle is equivalent to modularity and flexibility at its best. One housing, multiple options, with different light distributions for a wide varirty of applications, Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. Easy installations. It also facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the lighting modules in further finishing of the room, as the modules can be clicked into the frame afterwards.The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. dimmable, dimming from 0~100%, down to 0.01%.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   200mA


>
