FIXED SMD

L03220 General Lighting    IP44

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort.

Fixing square downlight, general lighting , Remote LED Driver OSRAM 2835, Easy installations. Recessed light source. PMMA diffuser, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable, Trim, Die casting aluminium materials, Available for three different size, 口105mm I 口145mm I 口185mm

TECHICAL DATA

  • 1080-2250lm
  • Remote LED Driver
  • Aluminium die casting material and powder coating.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • CRI90 OSRAM LED#.2835

Product is Europe Standard & CE Certificate.

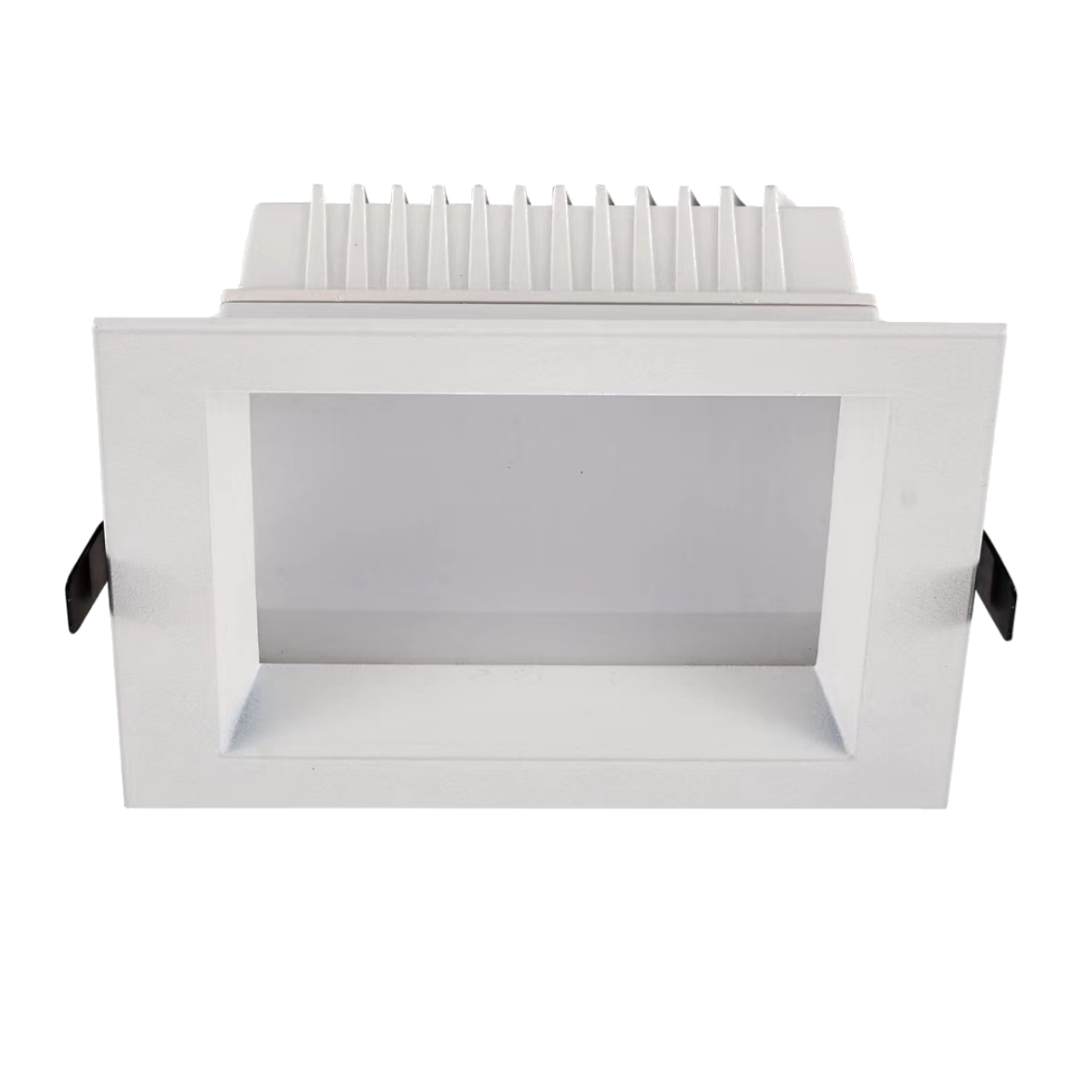

INTERIOR LED RECESSED DOWN LIGHT

L03220

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating.

Ceiling recessed, with trim,

5years warranty

OSRAM LED 2835 CRI90 back lit

Flicker Free, Remote LED Driver version. PF0.95

Recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI Tunable white dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

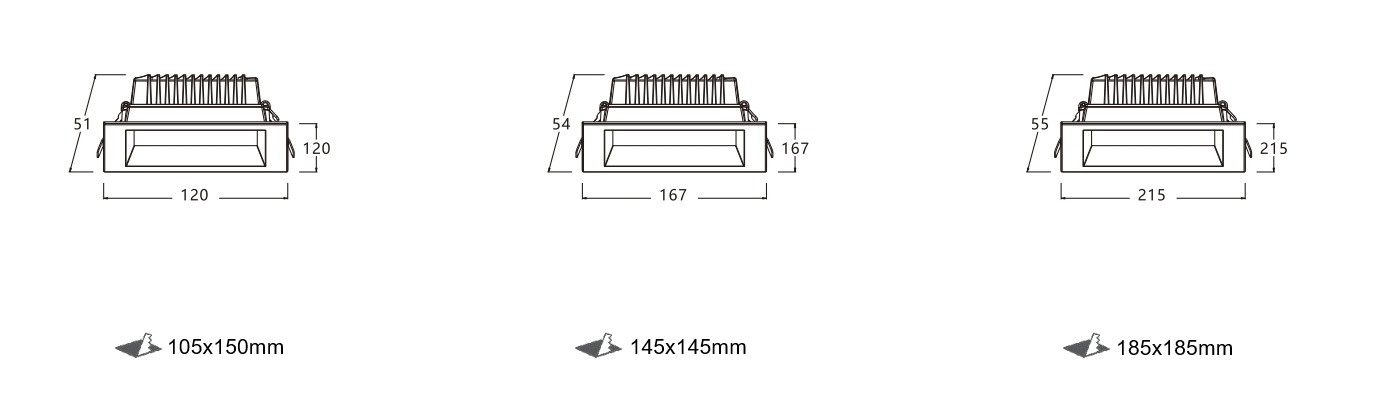

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03220-12 12W 1080lm
L120xW120xH51mm
105x105mm		 300mA
L03220-20 20W 1800lm
L167xW167xH54mm
145x145mm		 500mA
L03220-25 25W 2250lm
L215xW215xH55mm
185x185mm		 600mA

FEATURES

Fixing square downlight, general lighting , Remote LED Driver OSRAM 2835, Easy installations. Recessed light source. PMMA diffuser, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable, Trim, Die casting aluminium materials, Available for three different size, 口105mm I 口145mm I 口185mm

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
20W   500mA
25W   600mA
