L08095 Spotlight IP20

Aluminium integrated lamp body and powder coated. Standard length of cable L1500mm

The dia91/75/52 spot was designed for real high quality lighting, High CRl, built-in LED driver version. High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialized optical filters can be ordered.- the metal baffle can be finished with the white I black I gold, and the spot family comes in length of 230/250mm, it's a range of spotlights to fit any purpose, it offer multiple beam angles too. standard products come in the RAL9005 black I RAL9016 white.

TECHICAL DATA

2250-1350lm
Built-in Driver
Aluminium integrated lamp body and powder coated.
CITIZEN COB LED CRI90 3SDCM
Ceiling Suspended
90lm/W Softing lens version
DALI I Triac I 0/1-10V I TW Dimmable

Product is Europe Standard & CE Certificate.

. (4653).jpg

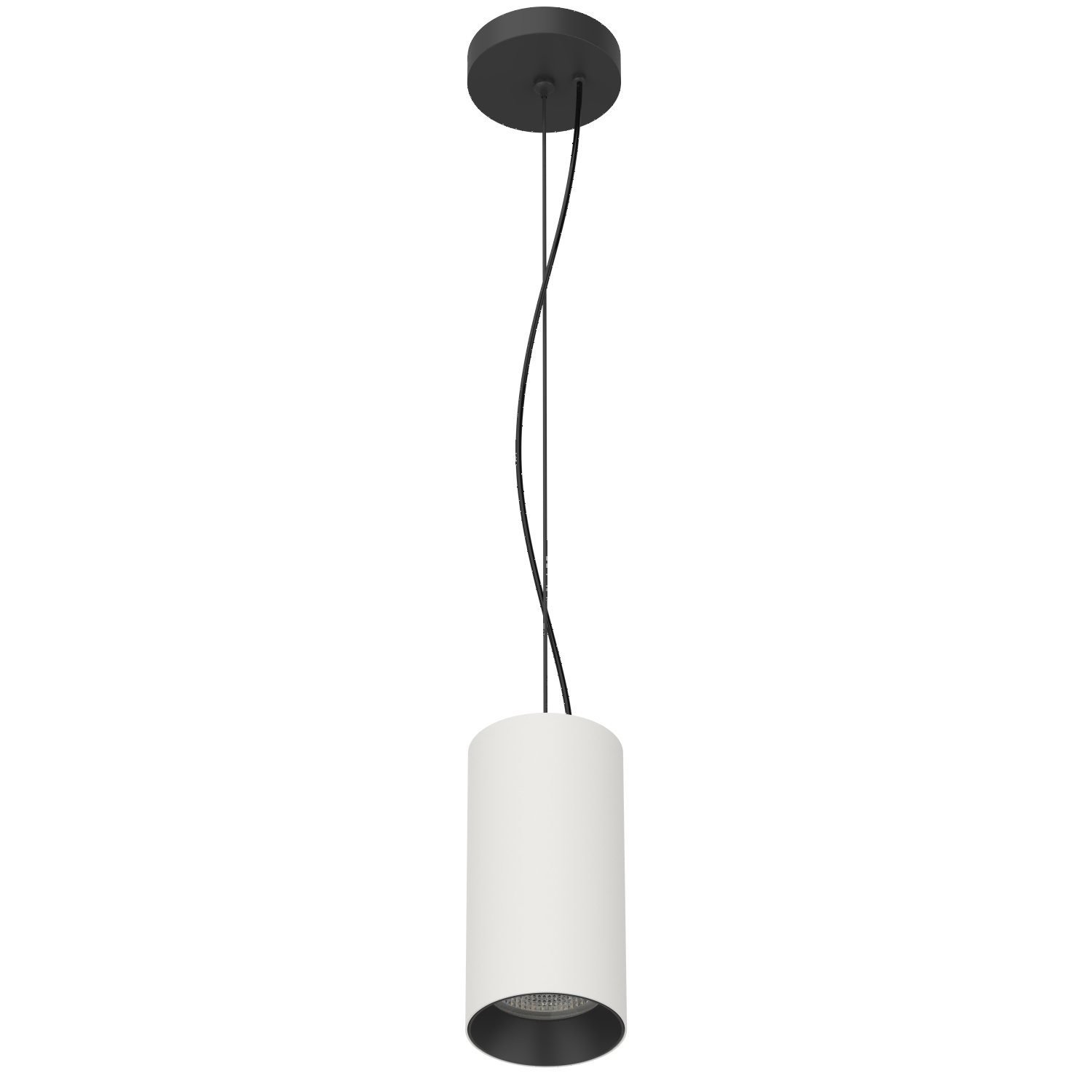

INTERIOR LED SUSPENDED SPOTLIGHT

L08095

IP20

CLASS III

Ceiling Suspended

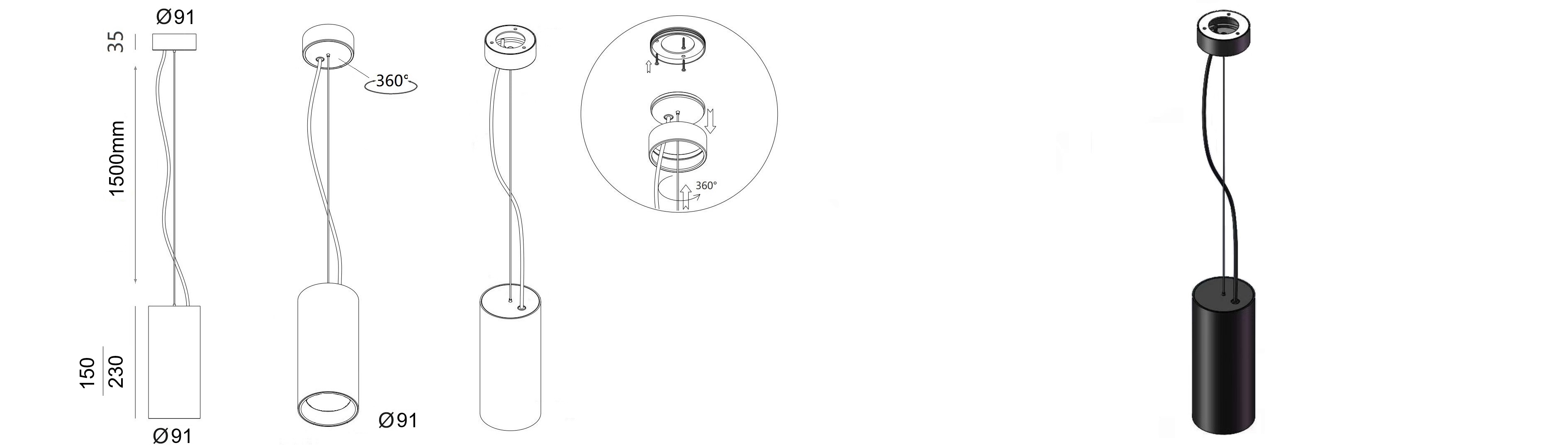

Standard length of cable L1500mm

Aluminium integrated lamp body and powder coated.

Eyes friendly CE certificate RoHS standard

CITIZEN COB LED CRI90 3SDCM

Triac I 0/1-10V I DALI TW dimmable

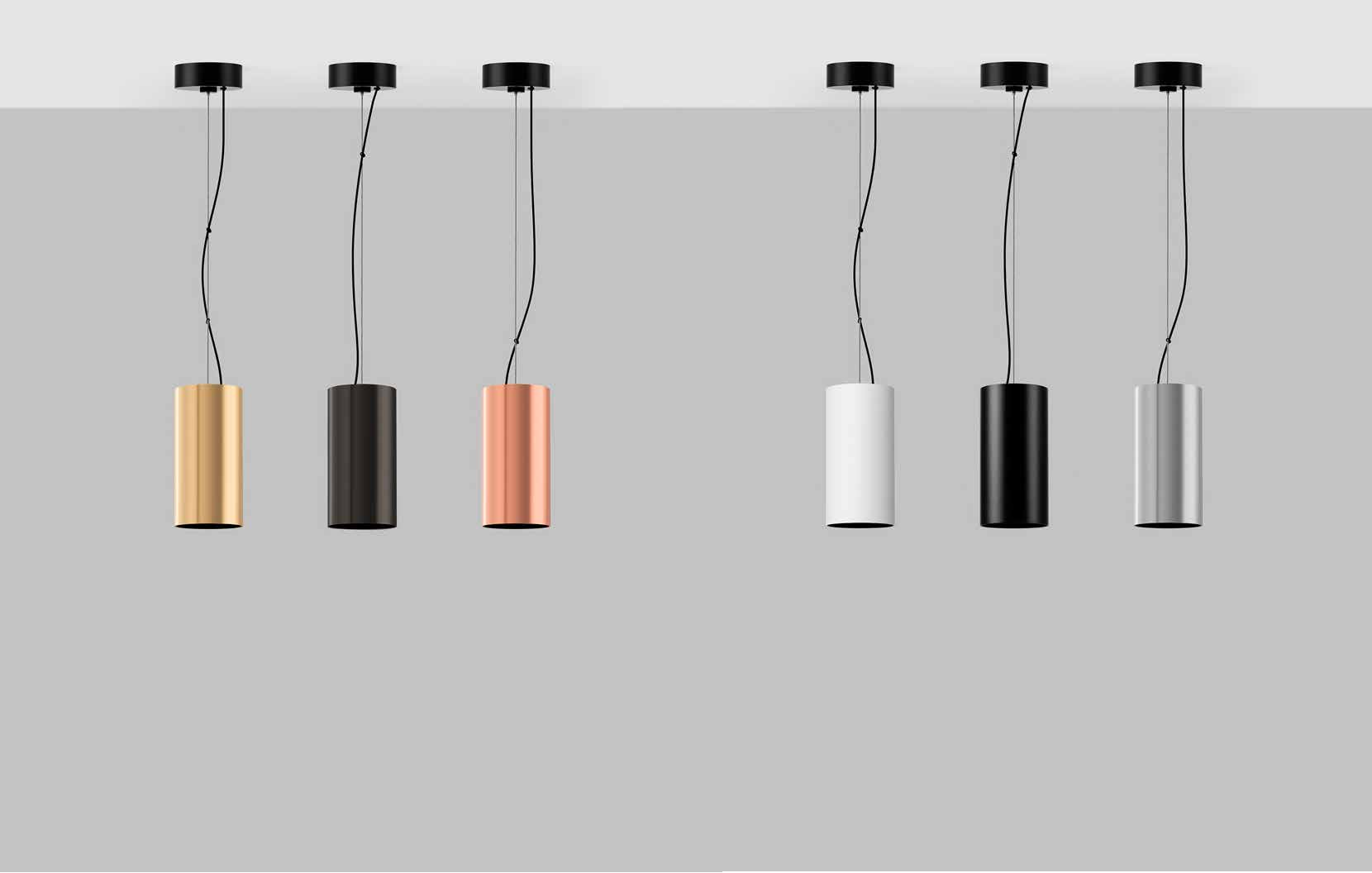

Customized color finishing is acceptable

Warranty 5 Years

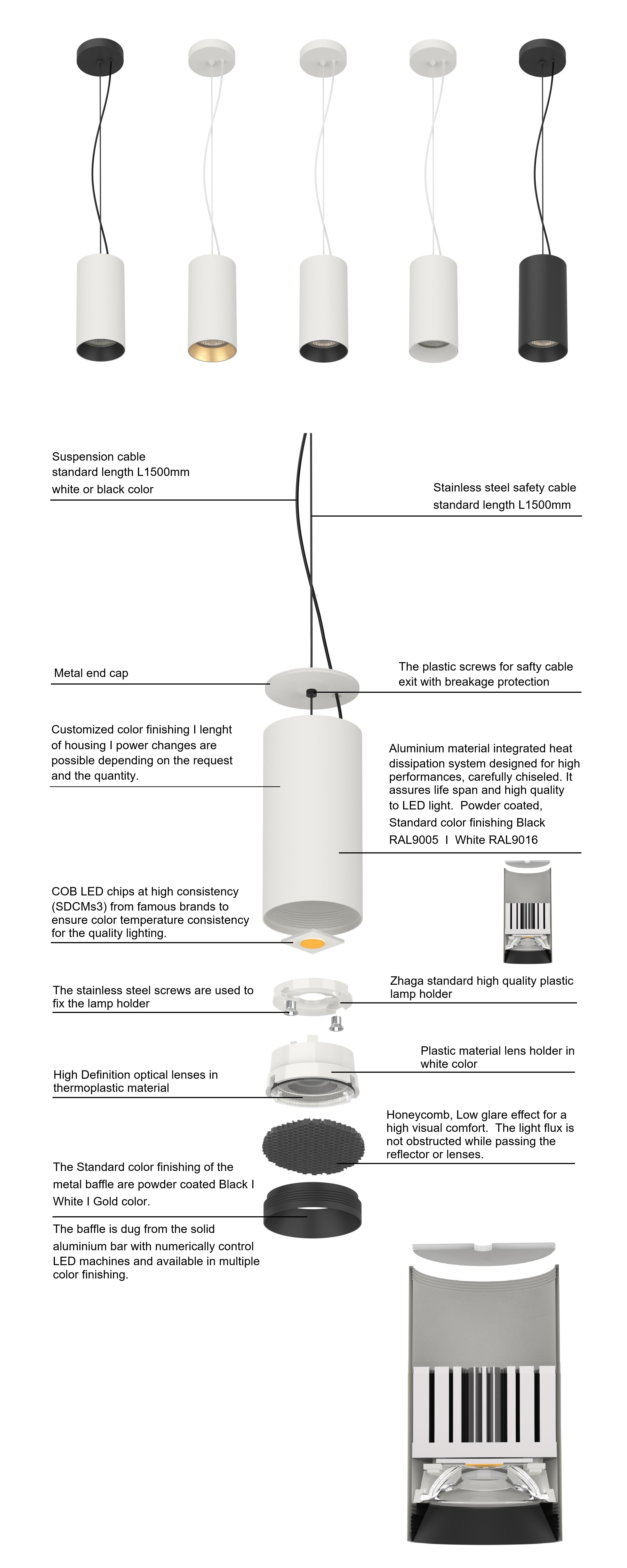

High Definition optical lenses Uniform distribution

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L08095-25	25W	2250lm	91xH230mm	mm	650mA


L08095-20	20W	1800lm	75xH250mm	mm	500mA

FEATURES

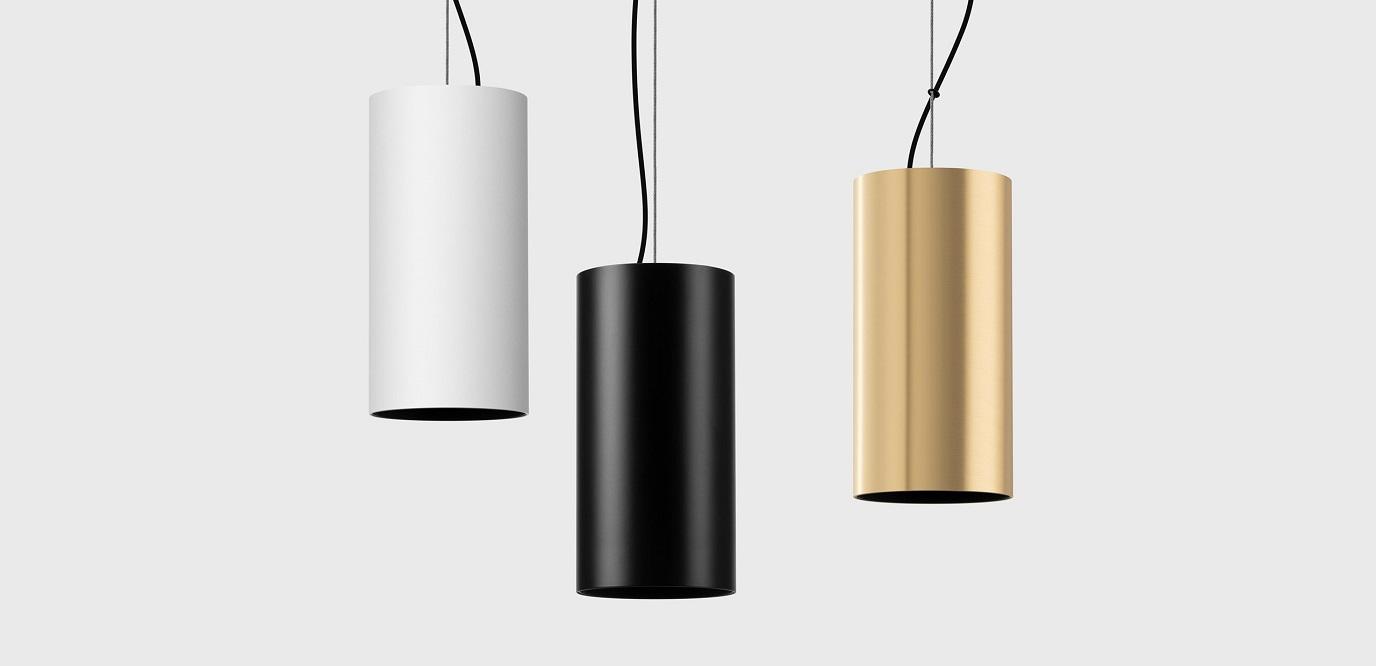

The dia91/75/52 spot was designed for real high quality lighting, High CRl, built-in LED driver version. High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialized optical filters can be ordered.- the metal baffle can be finished with the white I black I gold, and the spot family comes in length of 230/250mm, it's a range of spotlights to fit any purpose, it offer Tunable White (2700-6500K CCT) in multiple beam angles too. standard products come in the RAL9005 black I RAL9016 white.

Built-in Driver	Accessoires	Beam Angle	Color Temperature	Finishes
25W 650mA 20W 500mA

Data Sheet
