口78x78 I 8W

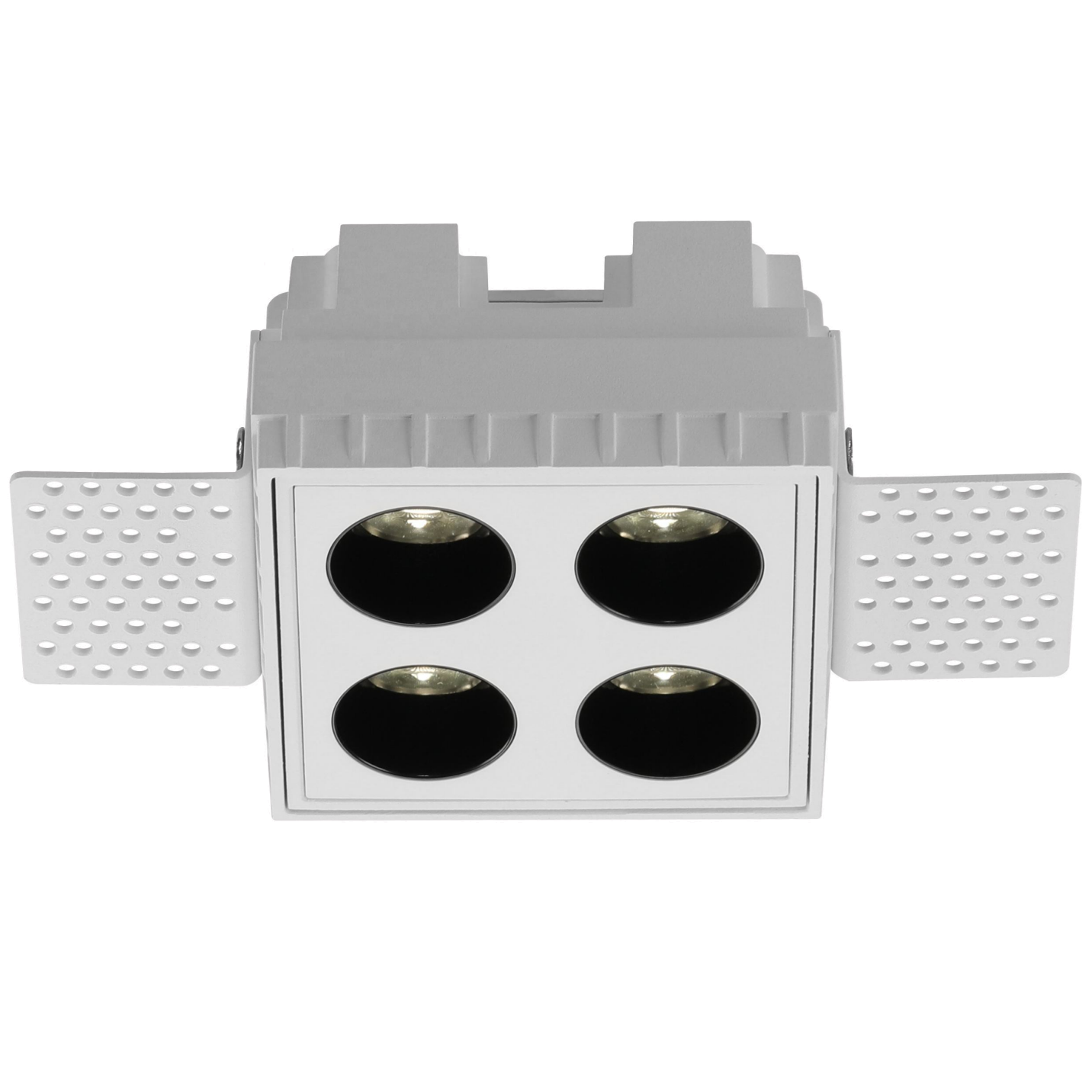

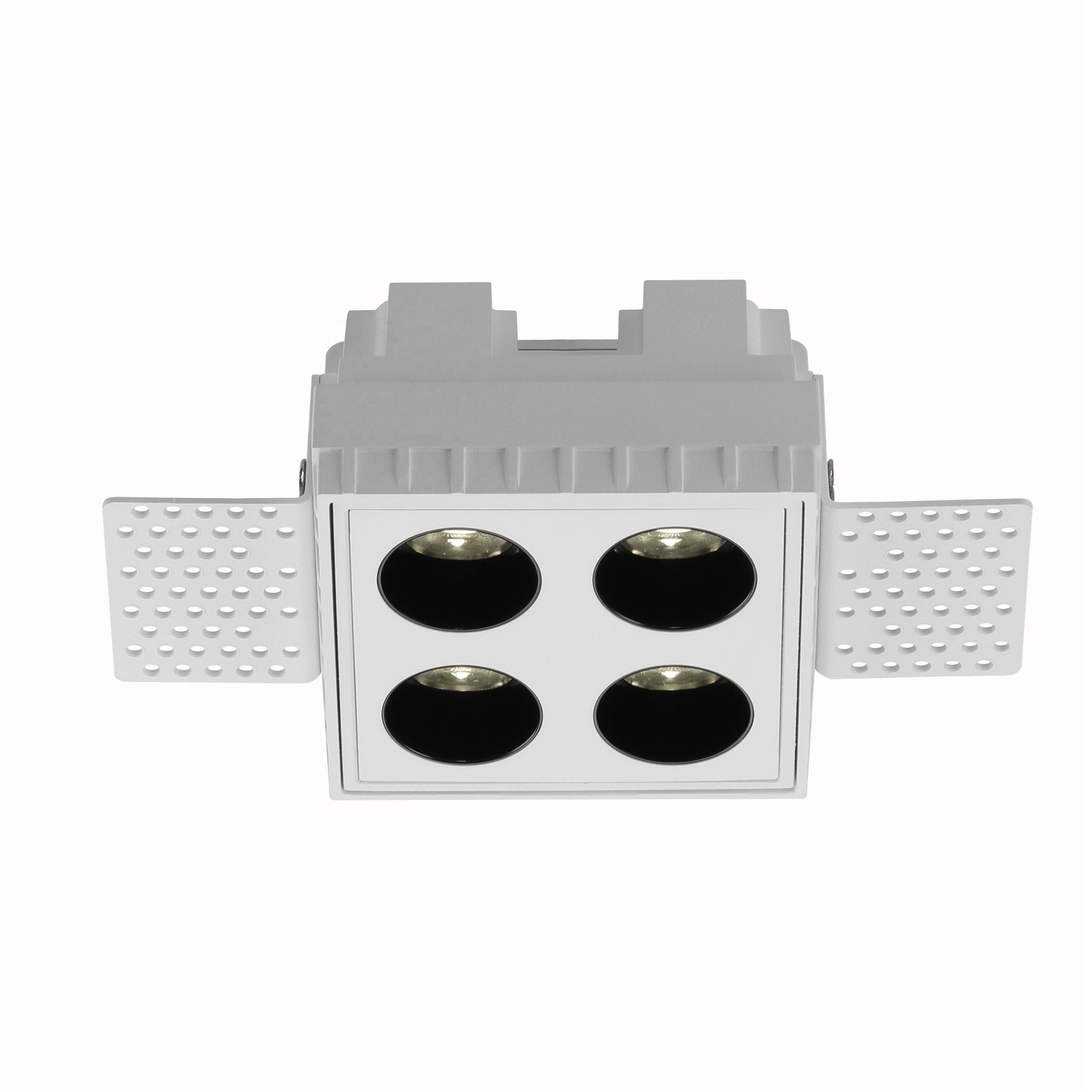

L07023 Spotlight    IP20

Trimless. spotlight, aluminium die-casting material and powder coating. -Remote LED driver version. Flicker-Free

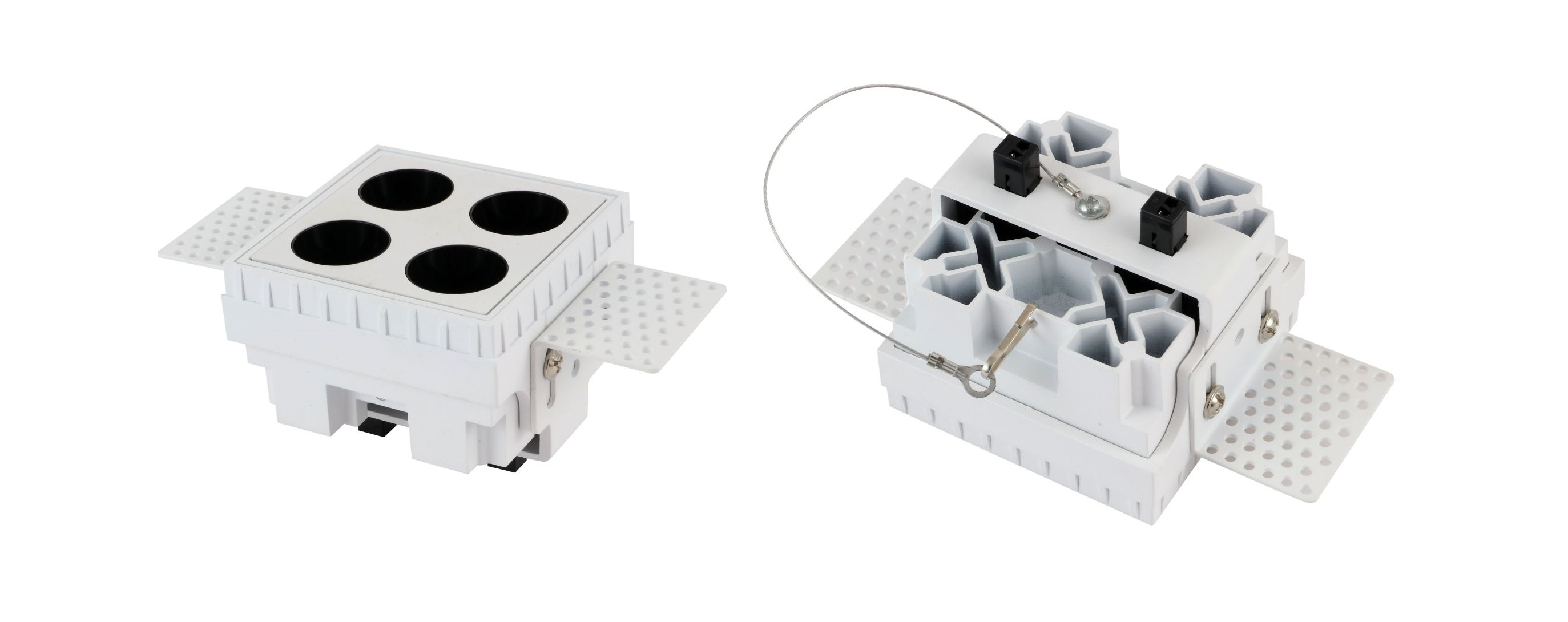

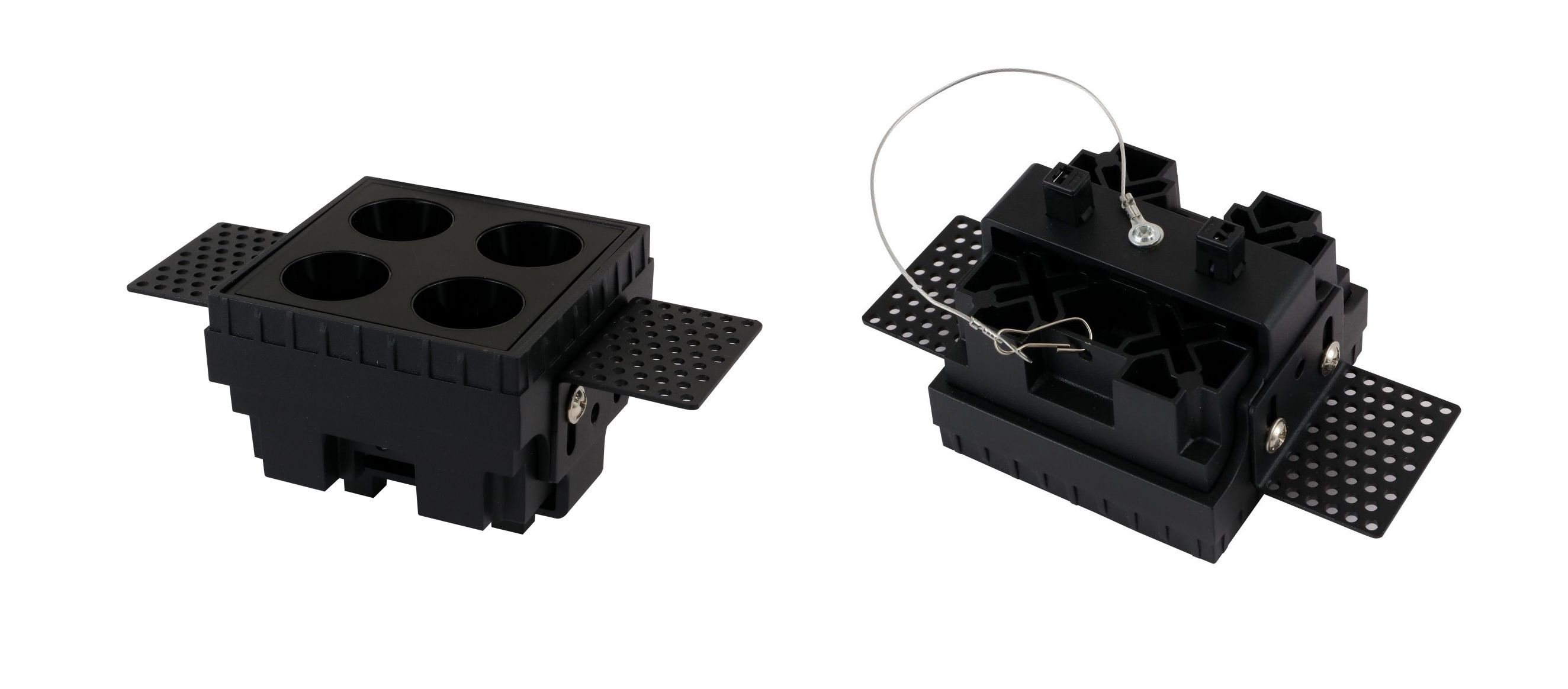

Fixed spot, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight, ABS secondary reflector and a metal mounting frame. Easy installations. It facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the LED spotlight in further finishing of the room, as the spotlight can be fixed into the metal installation frame afterwards by push-in action. and push again to take the spotlight out off the metal frame. Visual comfort low glare optic with deeply recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. Uniform distribution. 4LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 480lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free High CRI Low glare
  • DALI I Triac I 0/1-10V I Tunable white dimming

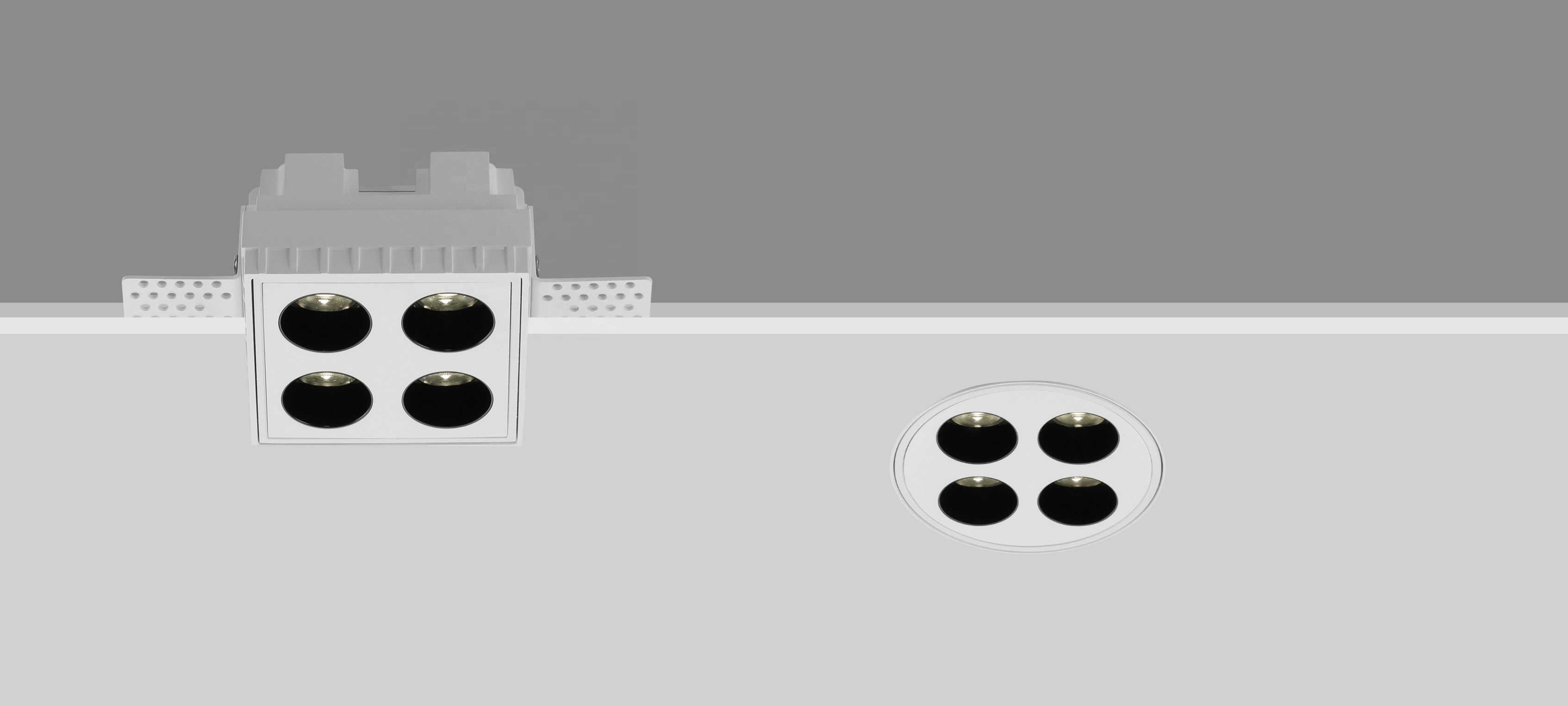

  • CEILING RECESSED I TRIMLESS
  • Famous brand LED chips High CRI Dimmable

Product is Europe Standard & CE Certificate.



INTERIOR LED RECESSED DOWN SPOTLIGHT

L07023

IP20

CLASS III

CEILING RECESSED I TRIMLESS

400-600mm cable with quick connector.

78x78mm

Eyes friendly CE certificate RoHS standard

OSRAM branded SMD LED #.3030

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION I EASY INSTALLATIONS

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L07023-8 4x2W 480lm

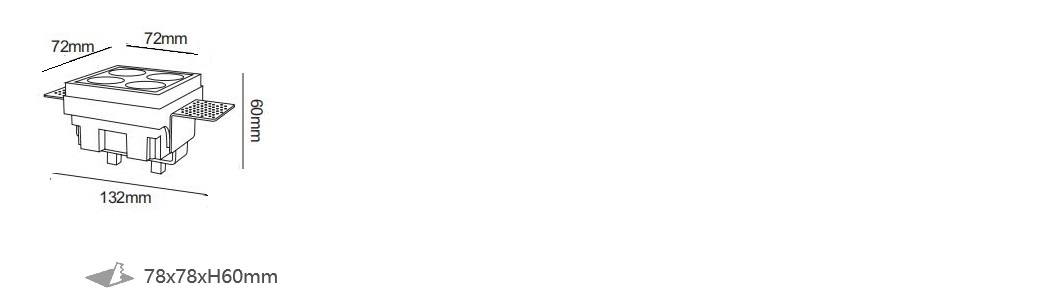

72x72xH60mm
78x78mm		 600mA

FEATURES

Fixed spot, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight, ABS secondary reflector and a metal mounting frame. Easy installations. It facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the LED spotlight in further finishing of the room, as the spotlight can be fixed into the metal installation frame afterwards by push-in action. and push again to take the spotlight out off the metal frame. Visual comfort low glare optic with deeply recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. Uniform distribution. 4LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable 8W 12V 600mA

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
