Ø25 I Ø35

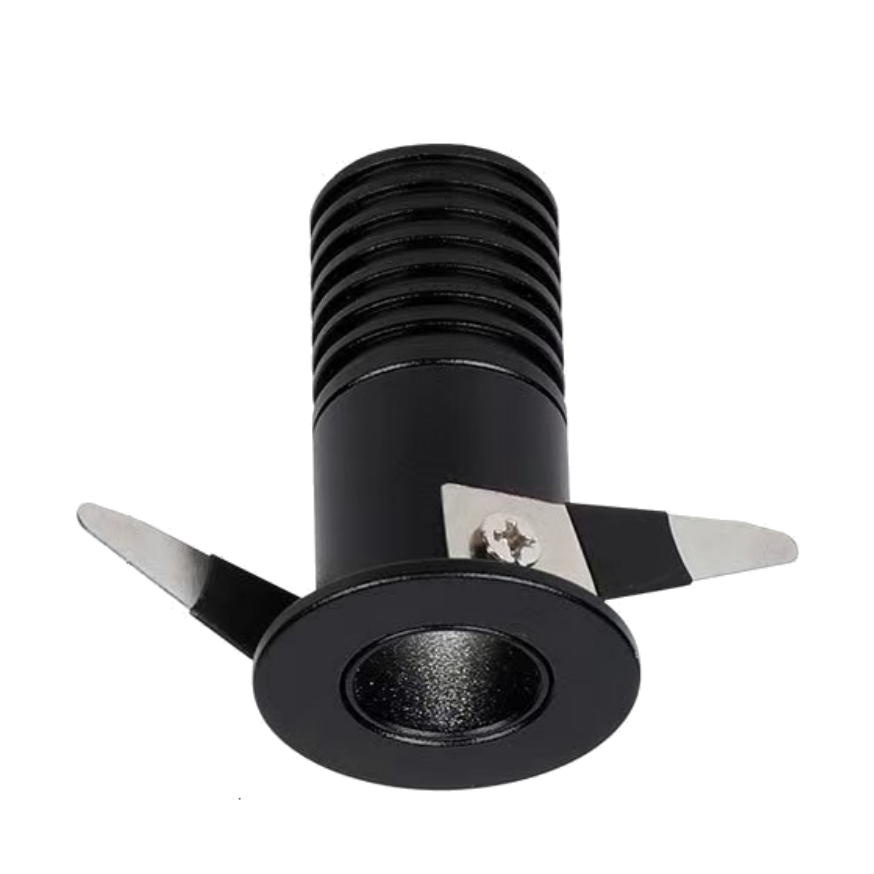

L01002 Spotlight    IP20

Aluminium electroplating lighting fixture, Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

Fixed spotlight with trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. Easy to highlight the beauty. Create your customized light atmosphere ,Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 90-160lm
  • Remote LED Driver
  • Aluminium lighting fixture
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V dimming
  • Ceiling, wall recessed.
  • OSRAM LED CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L01002

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium electroplating lighting fixture

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

OSRAM LED 3535

Flicker Free, Remote LED Driver version. High PF

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

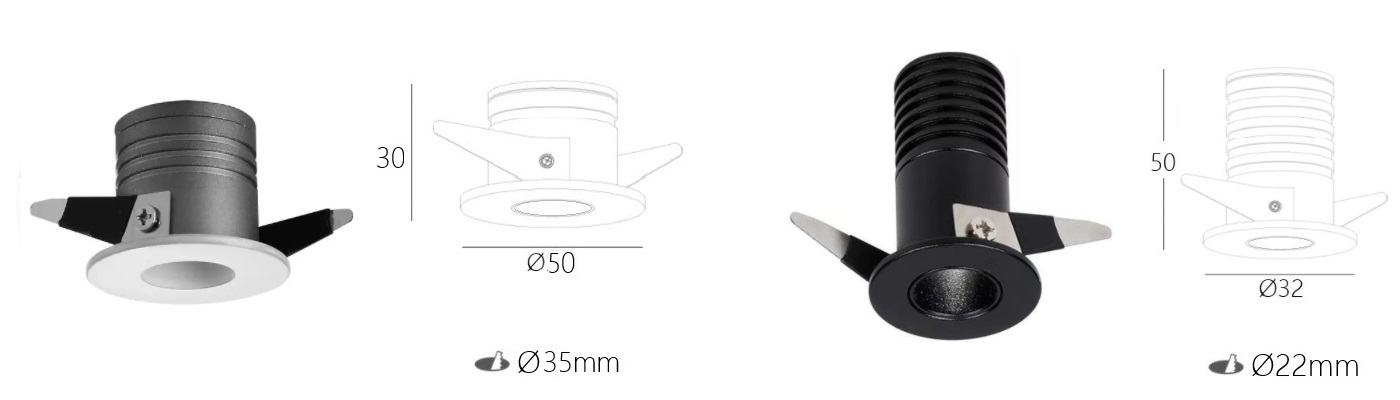

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L01002-2 2W 90lm
32xH50mm
25mm		 700mA
L01002-3 3W 160lm
50xH30mm
35mm		 700mA

FEATURES

Fixed spotlight with trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. Easy to highlight the beauty. Create your customized light atmosphere ,Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   700mA
3W   700mA
