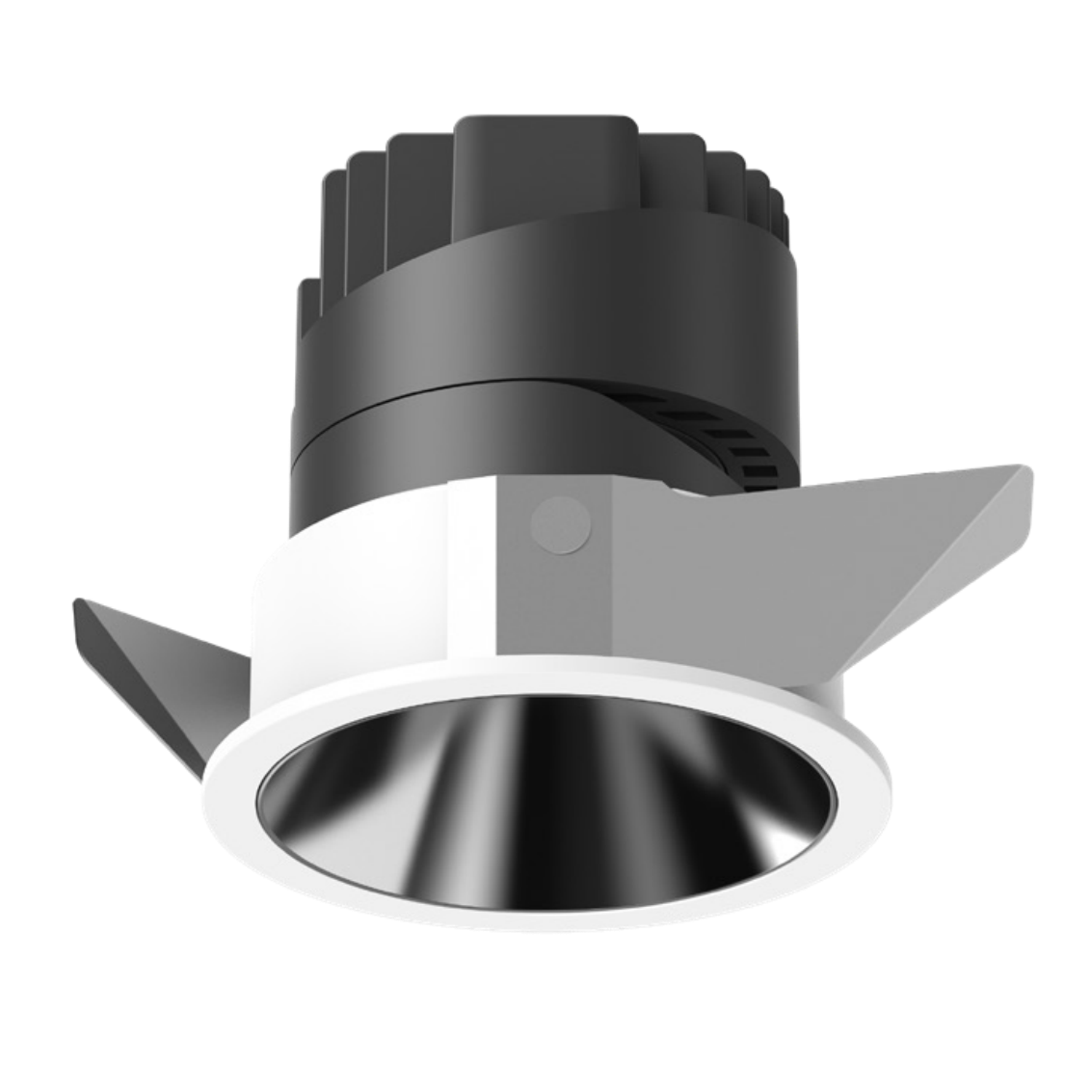

L06734 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Inviting and stylish lighting creates comfort and ambience for a sense of well-being.

Adjustable spotlight with slim trim, visual comfort low glare optic. Uniform distribution. High quality LENES ，Available for a few different output beams 10/15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

450-550lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated. RAL9010
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06734

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

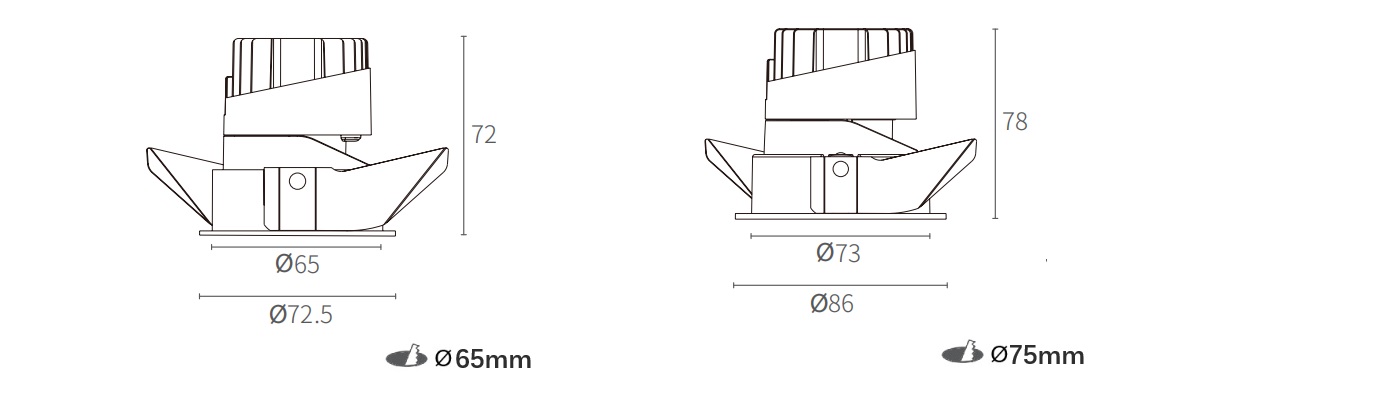

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06734-10	10W	450lm	73xH75mm	65mm	250mA


L06734-12	12W	550lm	86xH83mm	75mm	300mA

FEATURES

The adjustable spotlight with slim trim, visual comfort low glare optic. Uniform distribution. High quality LENES ，Available for a few different output beams 10/15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. Remote LED driver version. High level of visual comfort. Dimmable. CRI97 3SDCM. Recessed installation.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 12W 300mA

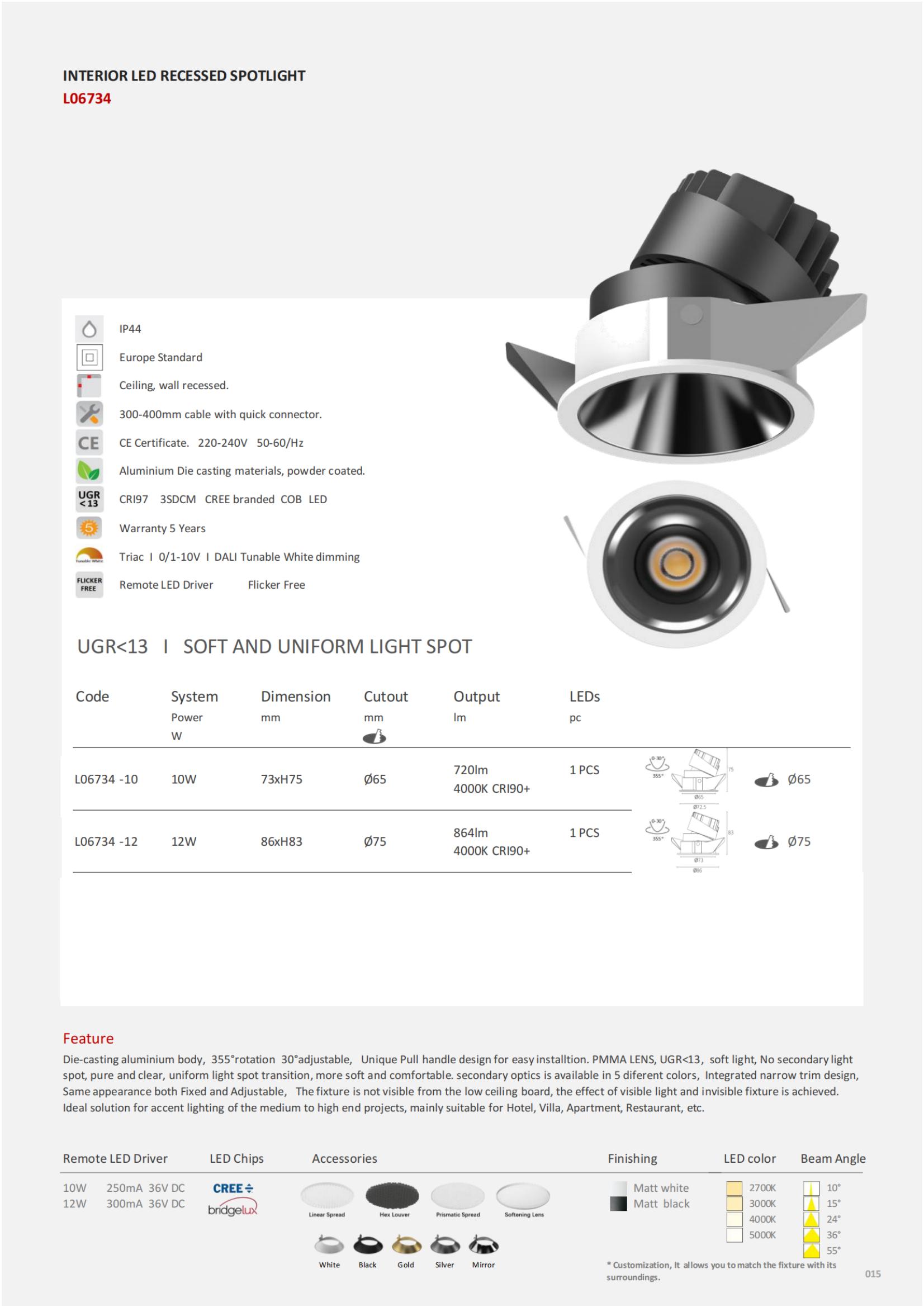

Data Sheet
