Ø55-75-95 pull-out

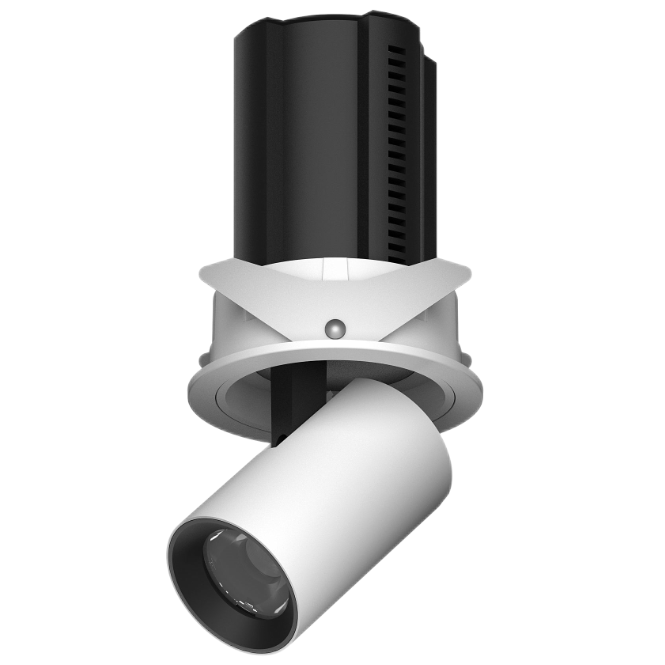

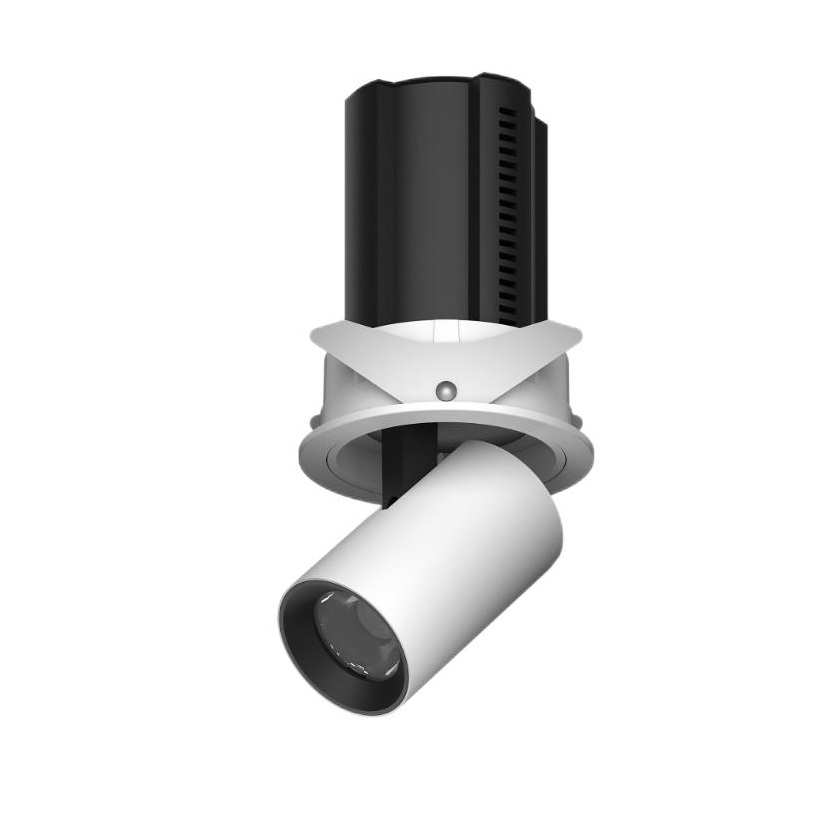

L04208 Spotlight    IP44

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

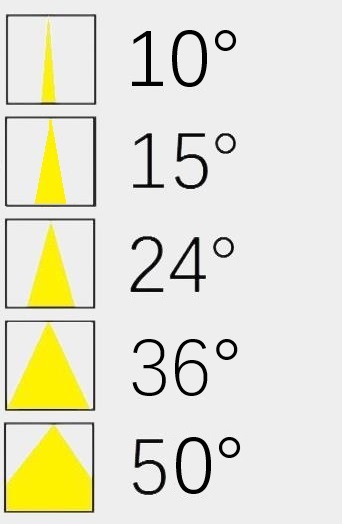

Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , recessed light source. available for five different output beams 10/15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation trimless or with spring, A small downlight characterized by innovative and surprising solutions.The possibility to take it out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body of trimmed style can either be completely hidden into the ceiling or fully visible to aim it wherever you want. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

  • 630-2250lm
  • Remote LED Driver
  • 90°adjustable 355°rotation, pull-out
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling Recessed Installation
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L04208

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed Installation

400-600mm cable with quick connector

COB LED I 3SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version.

90°adjustable 355°rotation, pull-out

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

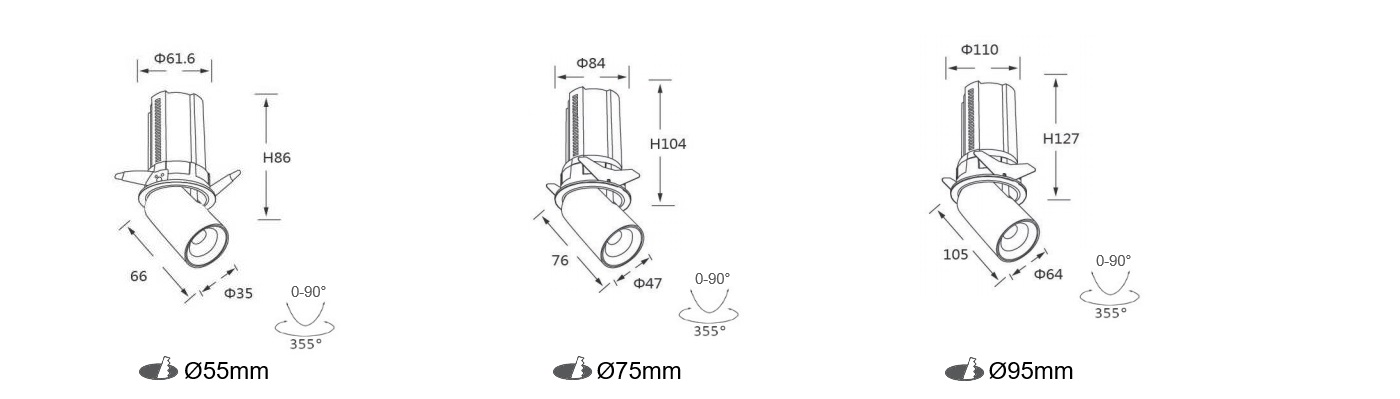

L04208-7 7W 630lm
62xH86mm
55mm
150mA
L04208-12 12W 1050lm
84xH104mm
75mm
300mA
L04208-25 25W 2250lm
110xH127mm
95mm
600mA

FEATURES

Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , A small downlight characterized by innovative and surprising solutions. The possibility to take it out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle. It is ideal for lighting architectural and artistic details up. The body of trimmed style can either be completely hidden into the ceiling or fully visible to aim it wherever you want.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   300mA
25W   600mA
