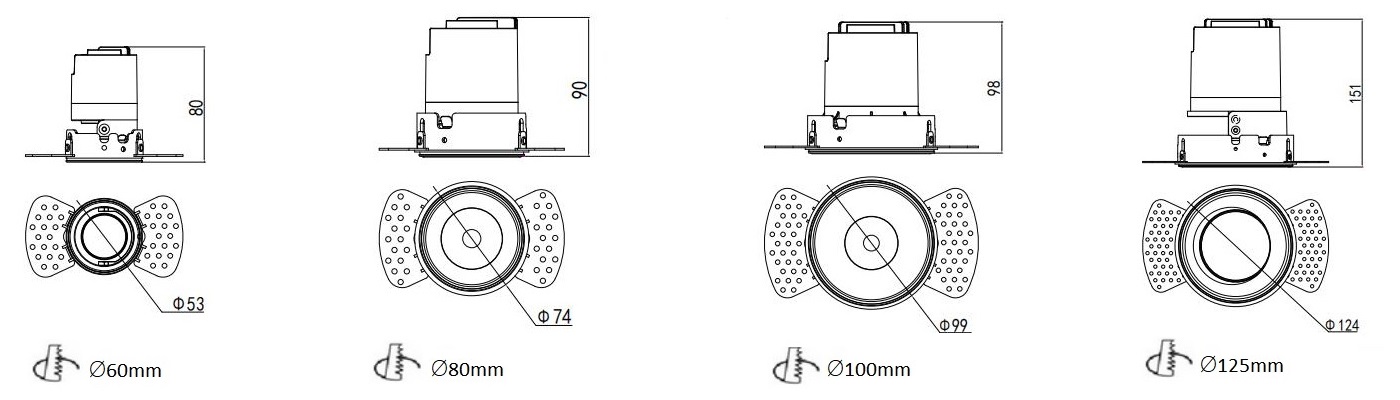

Ø60 Ø80 Ø100

L03044 Spotlight    IP54

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. CRI97+

The fixing trimless spot lights offer multiple optic distributions. Easy installations Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. Specialised optics and optical filters can be ordered. uniform distribution. 5years warranty. Flicker-Free. Dimmable. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. It is presented to its customers as a clean and non-dazzling product. Remote LED driver version. High level of visual comfort. CRI97 ,300-400mm cable with quick connector.,DALI I Triac I 0/1-10V I Tunable

TECHICAL DATA

  • 810-2700lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWNLIGHT TRIMLESS

L03044

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating.

Ceiling recessed, Plaster-in.

Ceiling thickness 3-25mm.

CITIZEN COB LED 3SDCM

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI Tunable white dimming.

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03044-9 9W 810lm
53xH80mm
60mm
200mA
L03044-15 15W 1350lm
74xH90mm
80mm
350mA
L03044-18 18W 1620lm
99xH98mm
100mm
500mA
L03044-30 30W 2700lm
124xH151mm
125mm
700mA

FEATURES

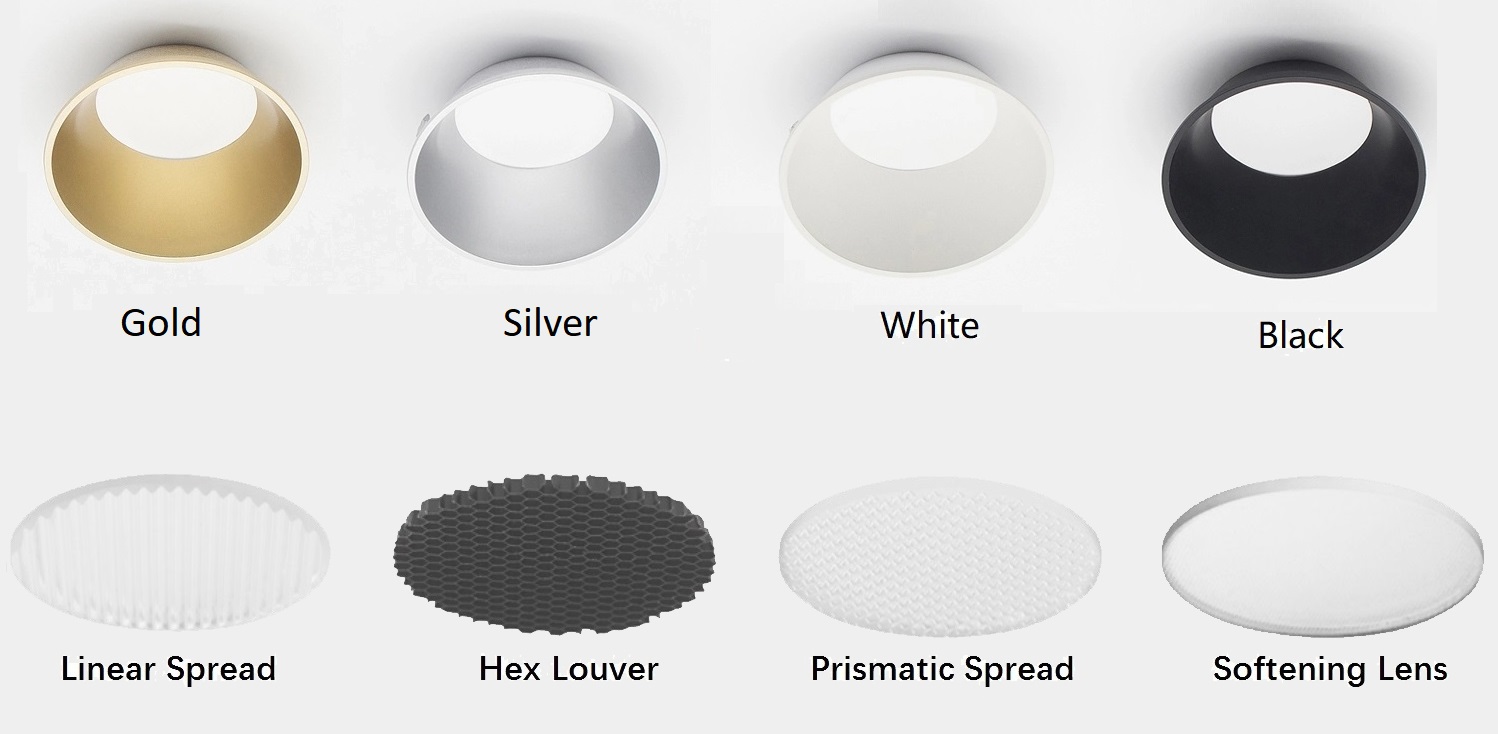

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
9W   200mA
15W   350mA
18W   500mA
30W   700mA
