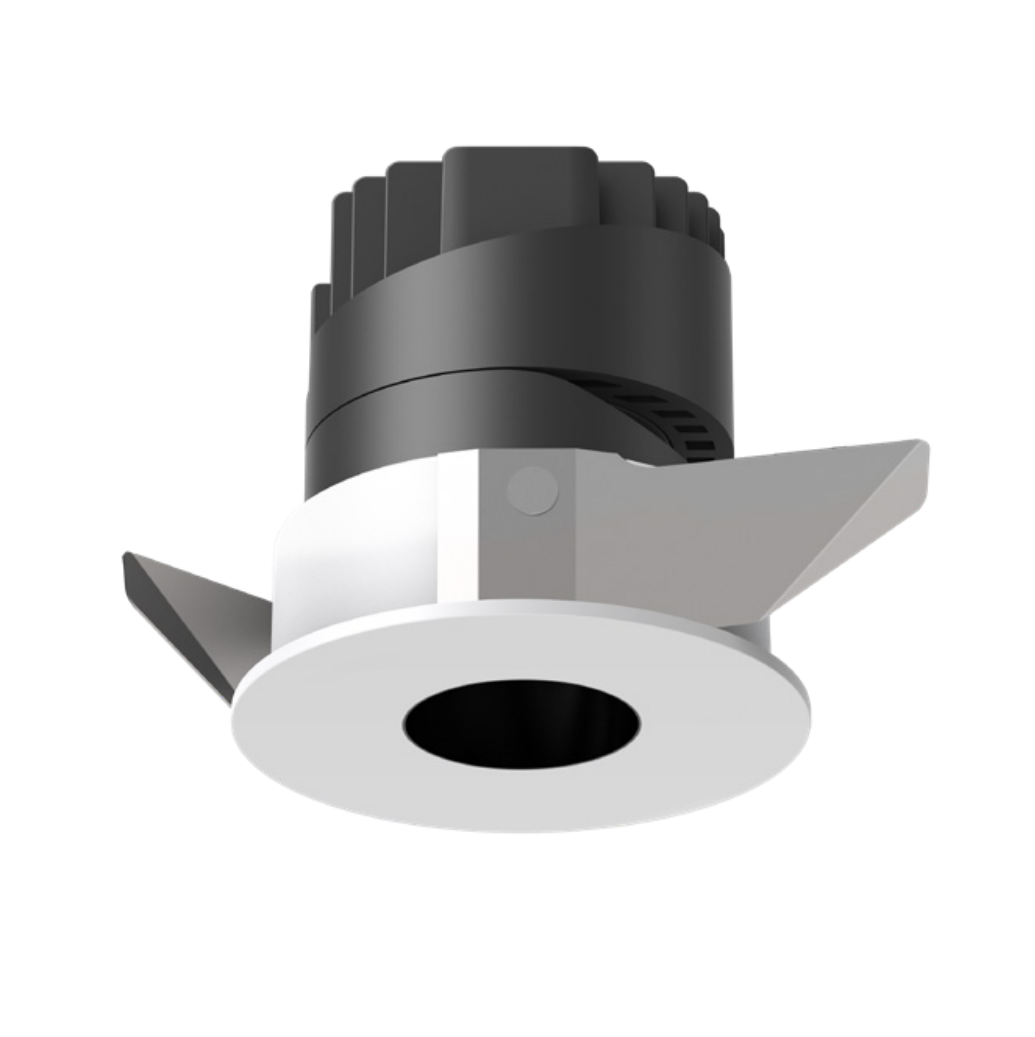

L06750 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing pinhole spotlight, visual comfort low glare optic. Uniform distribution. High quality LENES ，Available for a few different output beams 15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

850-1050lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated. RAL9010
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06750

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06750-10	10W	850lm	73xH73mm	65mm	250mA


L06750-12	12W	1050lm	86xH78mm	75mm	350mA

FEATURES

The fixing pinhole spotlight, visual comfort low glare optic. Uniform distribution. High quality LENES ，Available for a few different output beams 15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. Remote LED driver version. High level of visual comfort. Dimmable. CRI90 3SDCM. Recessed installation.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 12W 350mA
