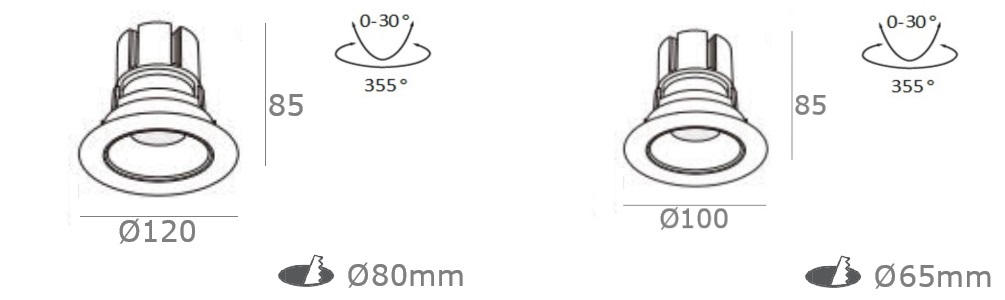

Ø80 I Ø65

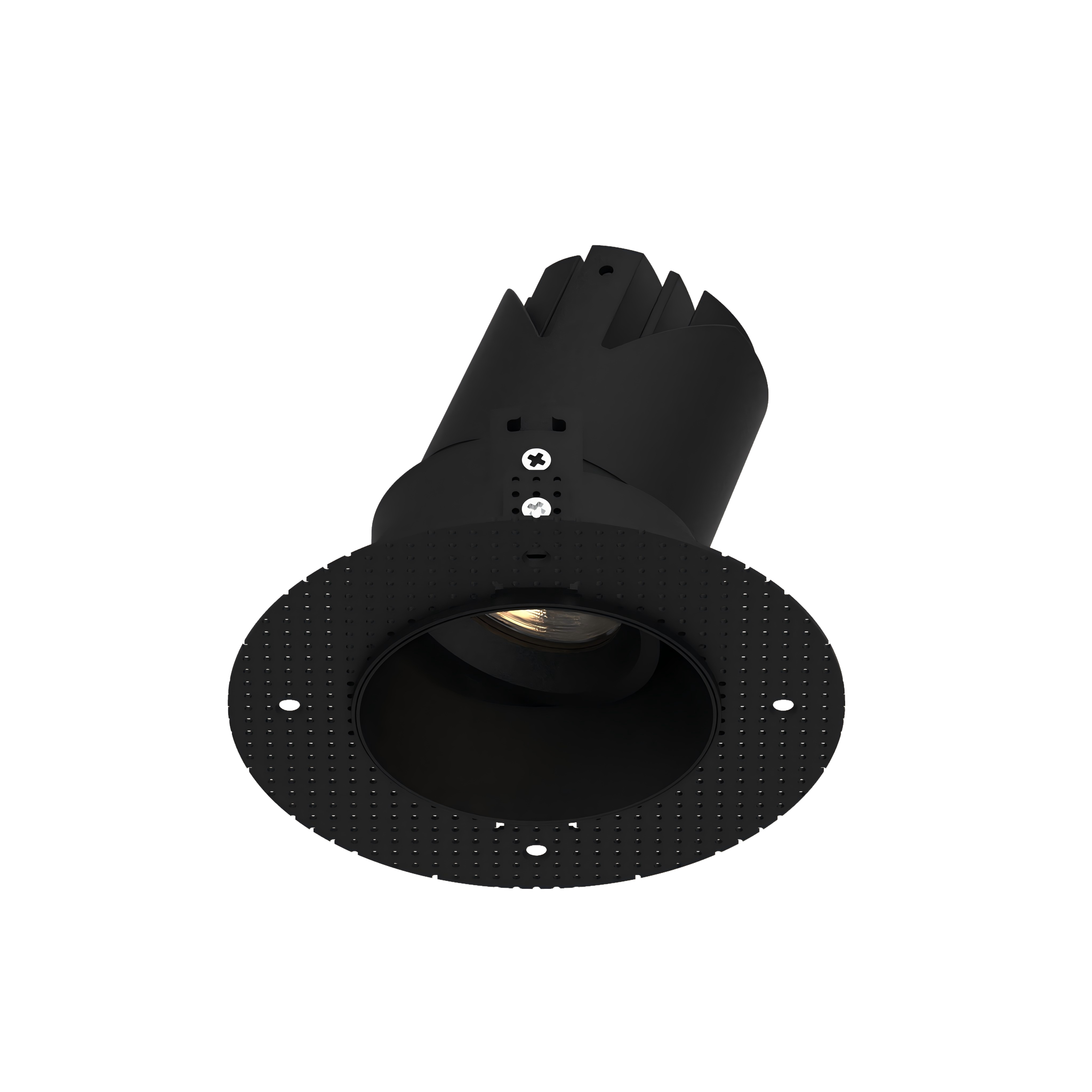

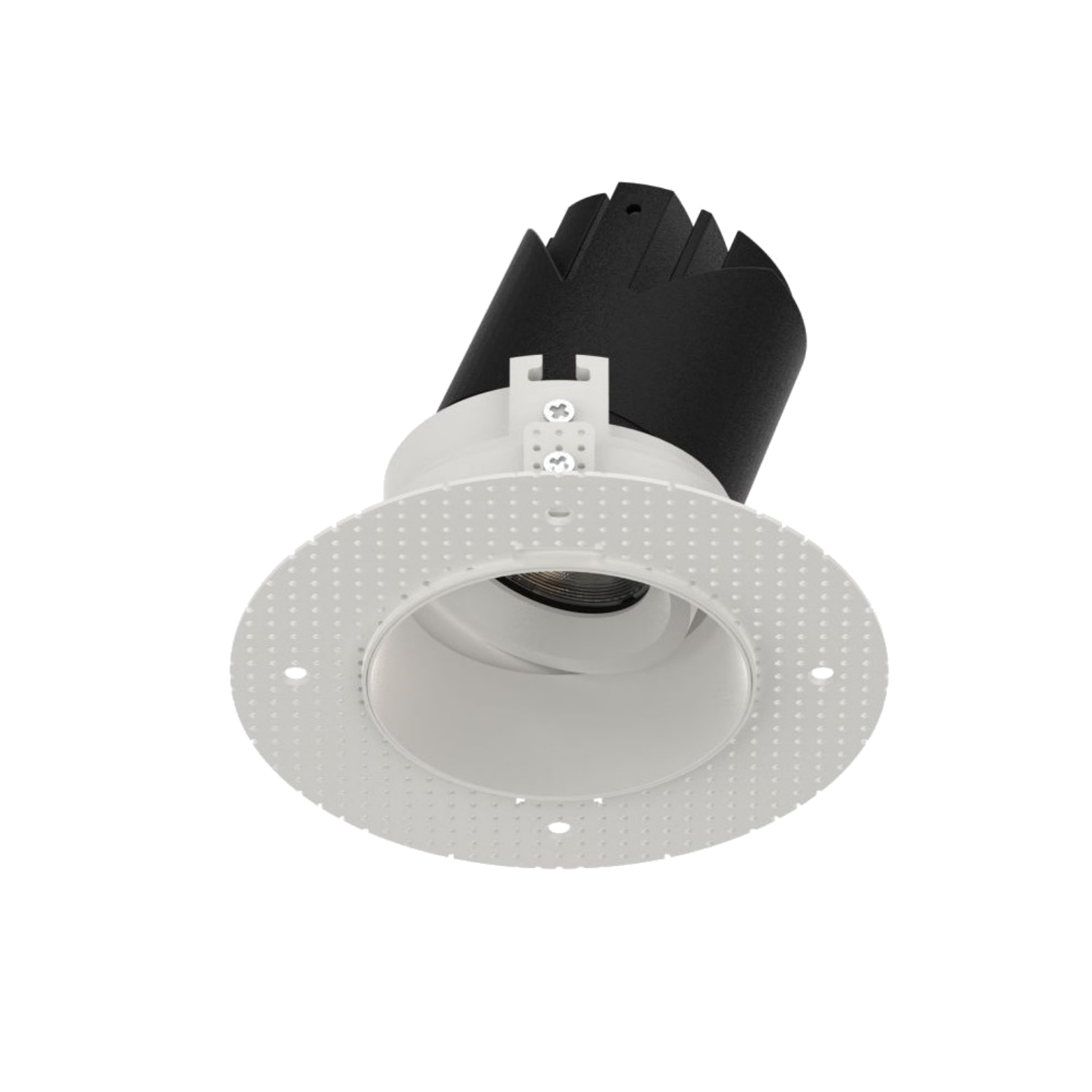

L03214 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort.

Adjustable trimless spotlight, LED modular design, comprise a LED light module, a metal baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. it's easy to take the spotlight out from it's frame, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 756-1120lm
  • Remote LED Driver
  • Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. Trimless
  • CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03214

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling recessed, Trimless

5years warranty

COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version. PF0.95

Recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI Tunable white dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03214-7 7W 756lm
65xH85mm
65mm		 150mA
L03214-12 12W 1212lm
80xH85mm
80mm		 300mA
L03214-14 14W 1120lm
80xH85mm
80mm		 350mA

FEATURES

Adjustable trimless spotlight, LED modular design, comprise a LED light module, a metal baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. it's easy to take the spotlight out from it's frame, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   300mA
14W   350mA
