Ø45 I Ø55 I Ø65 I DALI

L09110 Spotlight    IP20

Aluminium material cold forging process and powder coating. -Integrated LED Driver -Flicker-Free-

European Standard Track spotlight, aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a special adaptor integrated Dali dimm Driver. Achieved DALI dimmable, An ideal solution for accent lighting. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI>90, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 960-600lm
  • Integrated LED Driver
  • Aluminium Integrated lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • 3-phase Track or DALI Track Rails
  • Famous brand LED chips,- CRI90+ 3steps-Dimmable-

Product is Europe Standard & CE Certificate.

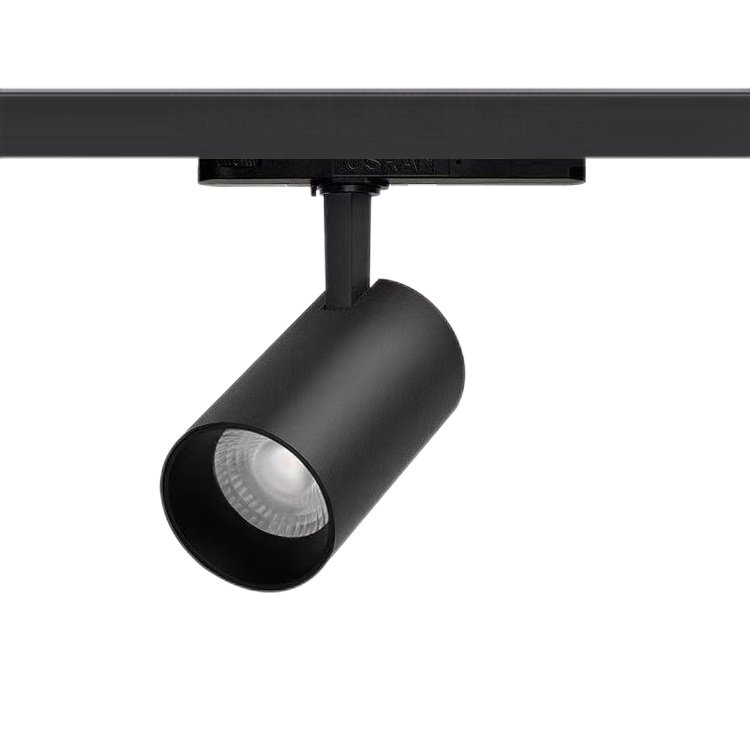

INTERIOR LED TRACK SPOTLIGHT

L09110

IP20

CLASS III

3-phase European Standard Track or DALI Track Rails

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90 2-3SDCM Famous brand COB LED

Triac I 0/1-10V I DALI dimmable

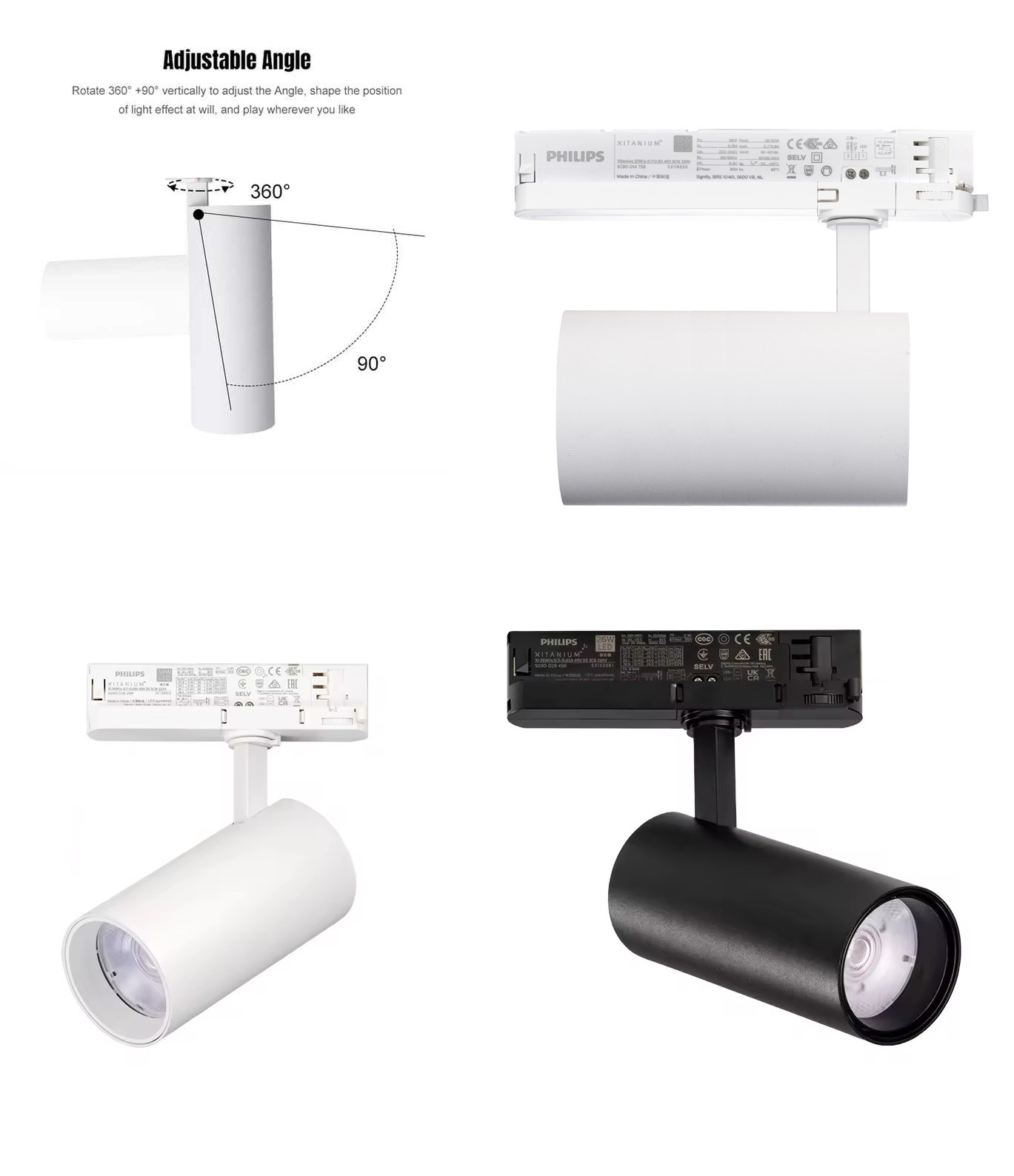

90°adjustable 355° rotation

Warranty 5 Years

An ideal solution for accent lighting

Code System Power
W
Output Lumen
lm

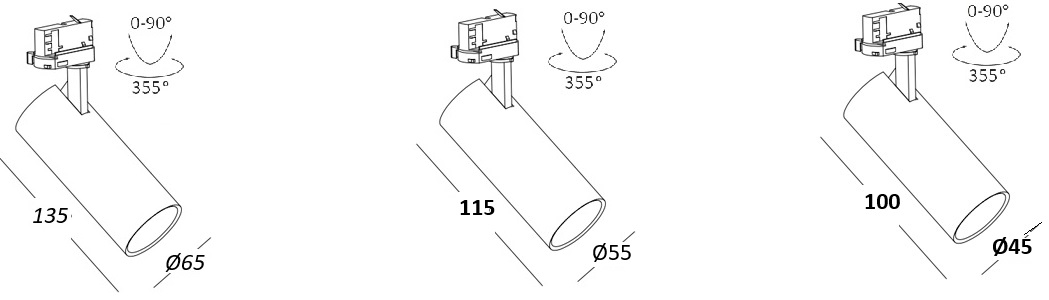

Dimension
mm
Cut Hole
mm
Power Supply
mA
L09110-12 12W 960lm
45xH100mm
mm
280mA
L09110-18 18W 1440lm
55xH115mm
mm
450mA
L09110-25 25W 2000lm
65xH135mm
mm
650mA

FEATURES

Track spotlight, aluminium lighting fixture, Integrated cooling system to ensure the spotlight long lifetime. Achieved DALI dimmable, An ideal solution for accent lighting. The fixture allows 360°rotation and 90° adjustable make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM CRI>90, The standard product comes in RAL 9005 Black I RAL 9016 White. Customized power changes are possible depending on the request and the quantity.

Integrated LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   280mA
18W   450mA
25W   650mA


>
