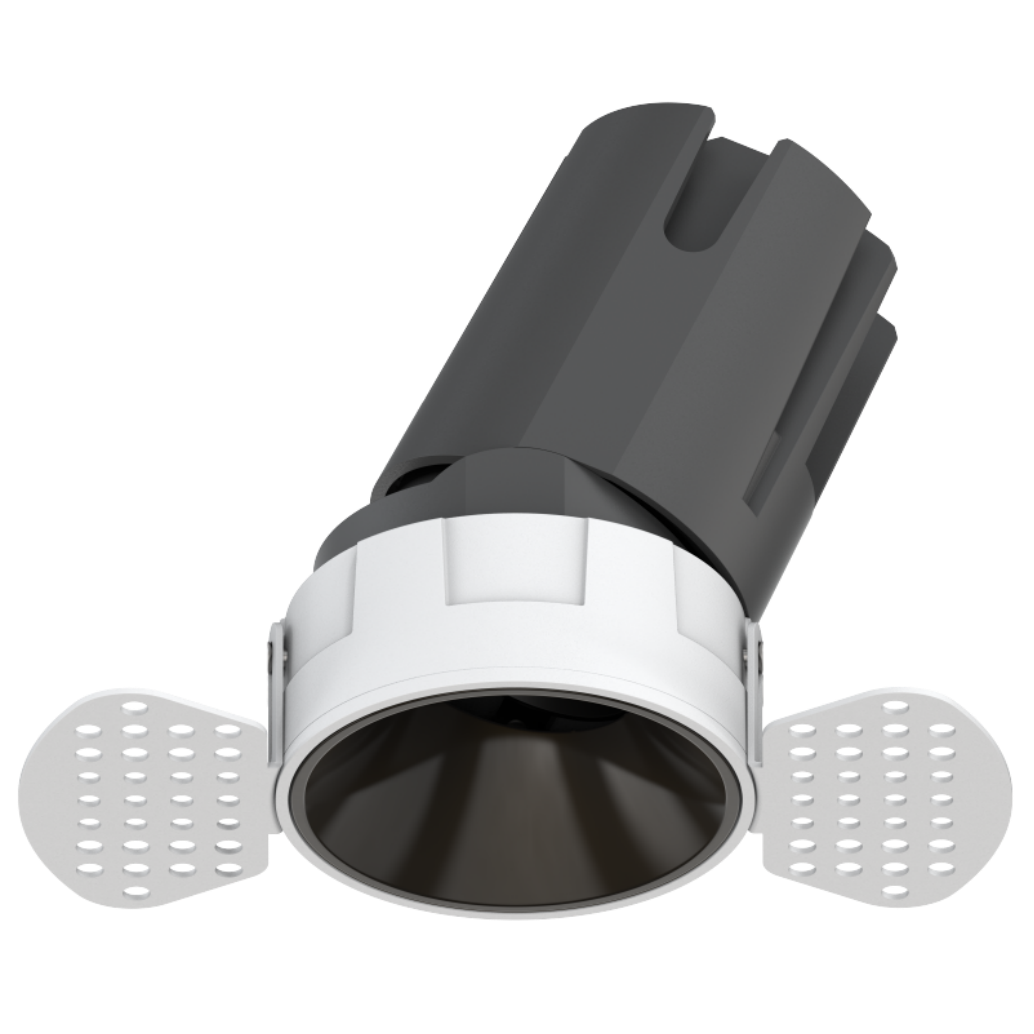

L06704 Spotlight IP65

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 30°adjustable 355°rotation

Trimless Adjustable spotlight , uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/60°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden I Silver. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

680-1900lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DTW dimming
Ceiling Recessed I Trimless
COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06704

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Trimless I Plaster-in

400-600mm cable with quick connector

COB LED I 3SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version.

The lighting fixture is 30°adjustable 355°rotation

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

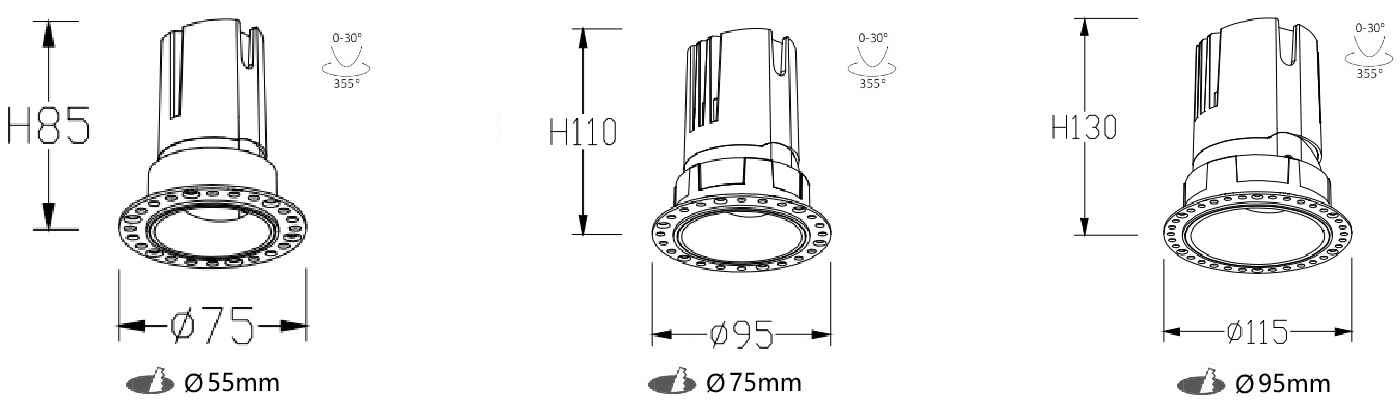

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06704-10	10W	680lm	57xH85mm	55mm	250mA


L06704-20	20W	1350lm	77xH110mm	75mm	500mA


L06704-30	30W	1900lm	97xH130mm	95mm	750mA

FEATURES

The trimless adjustable spotlight offer uniform distribution. Visual comfort low glare optic with recessed light source. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden I Silver. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. IP RATED, it can be used in bathroom or other damp locations.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 20W 500mA 30W 750mA

COB LED Chips I 3SDCM I CRI90 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation One housing, multiple options, with different light distributions for a wide varirty of applications, The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.

Data Sheet
