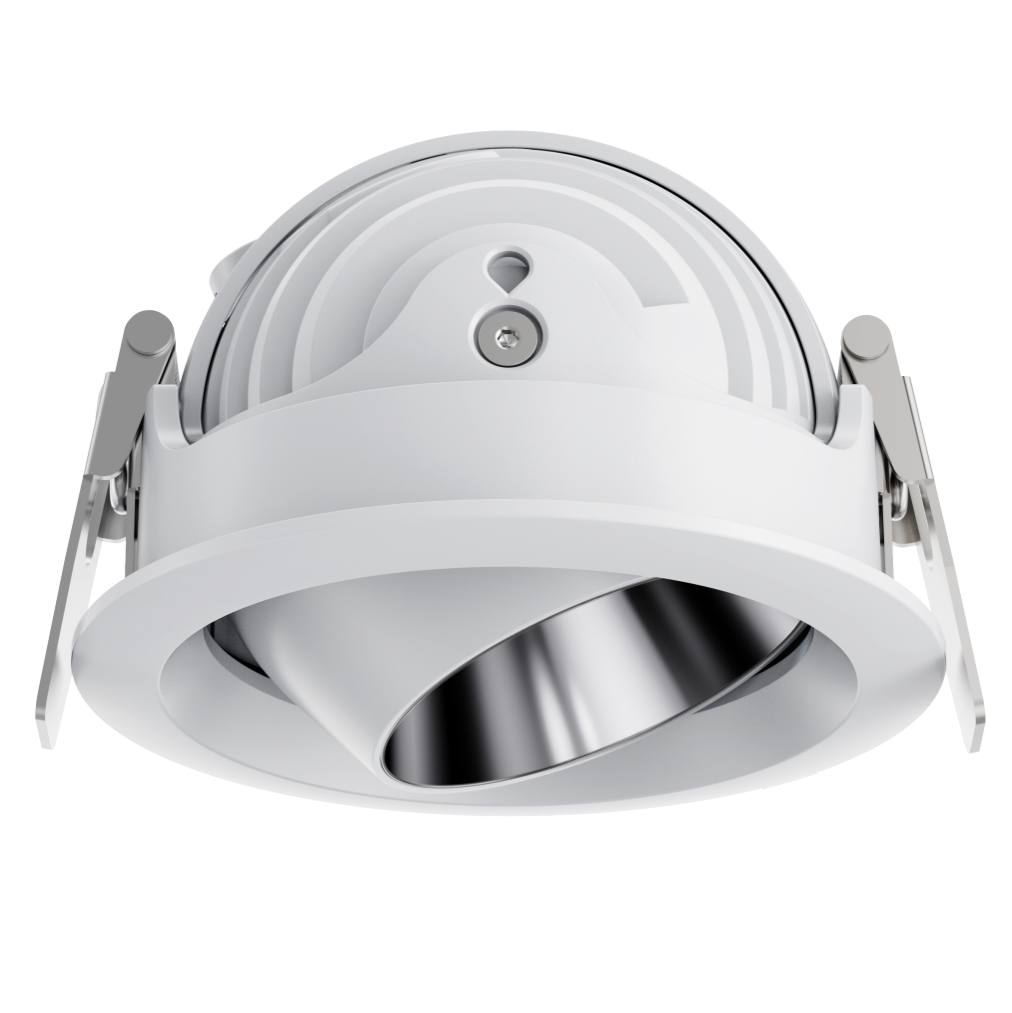

L03721 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 30°adjustable 355°rotation. Height reduced.

The Adjustable spotlight with slim trim, Uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

850-1000lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DTW dimming
Ceiling, wall recessed.
COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03721

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed I Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED I 3SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version

Lighting fixture is 30°adjustable 355°rotation

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

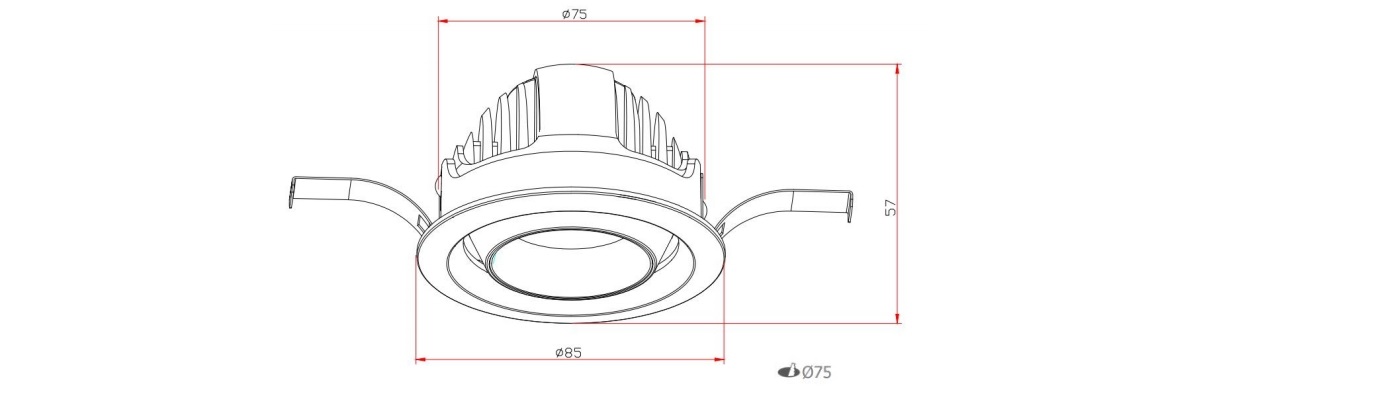

L03721-10	10W	850lm	85xH57mm	75mm	250mA


L03721-12	12W	1000lm	85xH57mm	75mm	350mA

FEATURES

The spotlight with slim trim, 30°adjustable 355°rotation. Visual comfort low glare optic with recessed light source. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. The spotlight is IP RATED, it can be used in bathroom or other damp locations.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 12W 350mA

COB LED Chips I 3SDCM I CRI90 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation One housing, multiple options, with different light distributions for a wide varirty of applications, The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.
