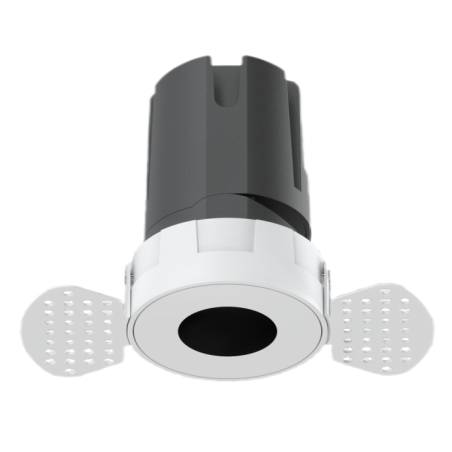

L06747 Spotlight    IP65

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The spotlight offered uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/60°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 300-850lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • Fixing Spotlight I Trimless I IP Rated
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06747

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting lighting fixture, powder coated.

Ceiling Recessed Installation

300-400mm cable with quick connector.

COB LED CRI90 3SDCM

Flicker Free I Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

DALI I Triac I 0/1-10V I DTW dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L06747-7 7W 300lm
77xH110mm
77mm
150mA
L06747-15 15W 600lm
77xH110mm
77mm
350mA
L06747-20 20W 850lm
77xH110mm
77mm
500mA

FEATURES

The spotlight offered uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/60°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
15W   350mA
20W   500mA
