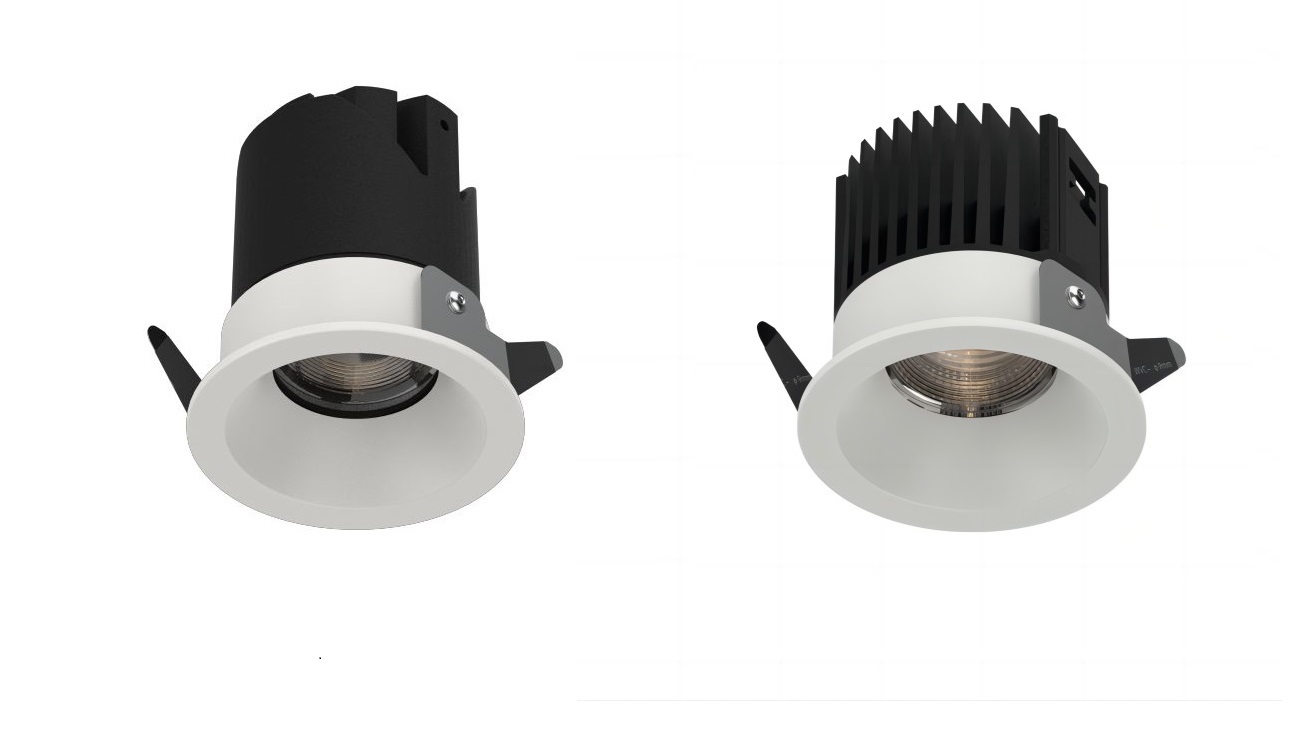

L03522 Spotlight    IP54

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

Fixed spotlight with trim version, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, the IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Meanwhile, the spot light also achieved high-quality mixing effect. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 1350-1100lm
  • Remote LED Driver
  • Ceiling Recessed
  • 300-400mm cable with quick connector.
  • L03522DDW - DALI Dimm to Warm 1800K-4000K CCT 36° I 55°
  • L03522DTW - DALI Tunable White 2700K-6500K CCT 36° I 55°
  • Bridgelux branded LED chips CRI>90 3SDCM

Product is Europe Standard & CE Certificate.

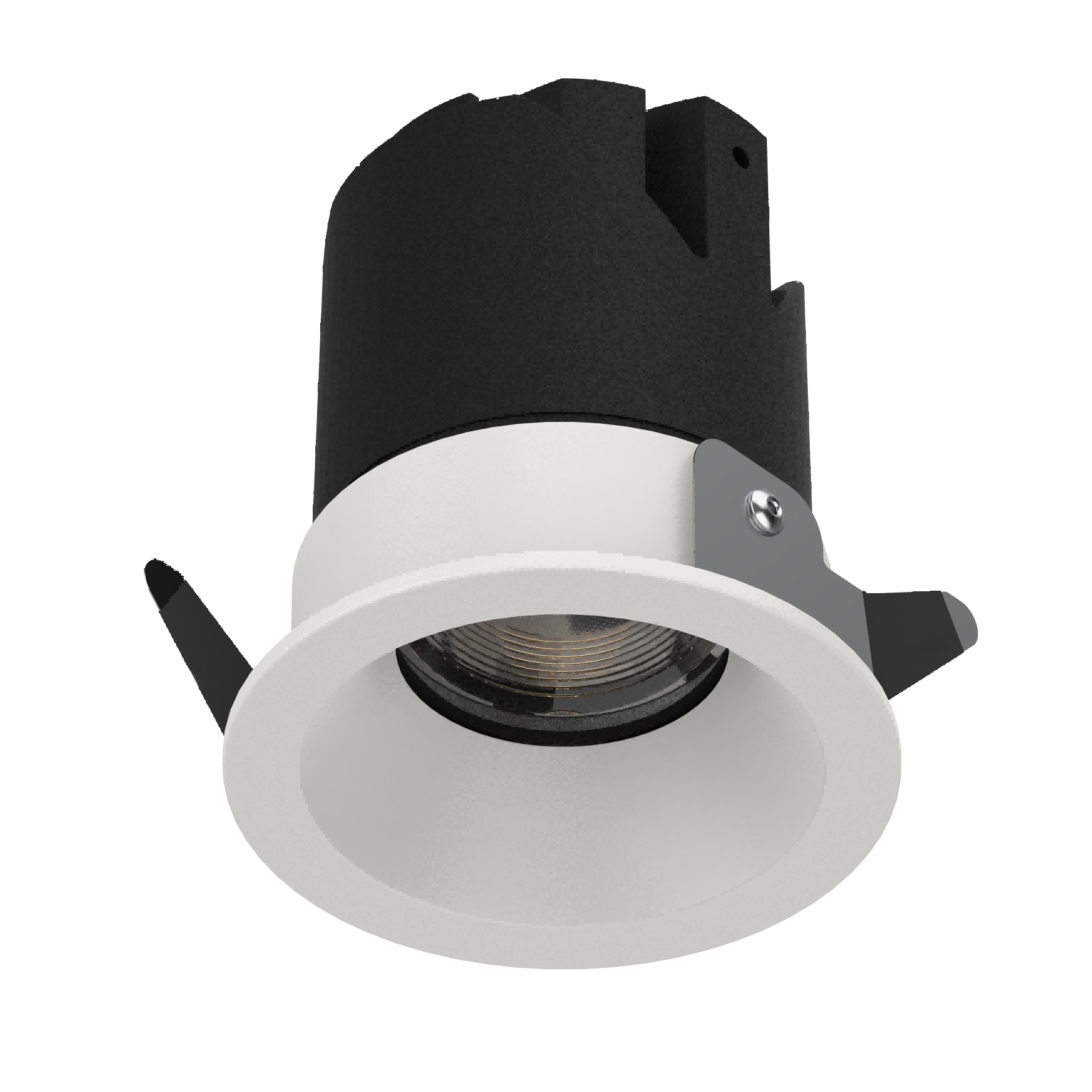

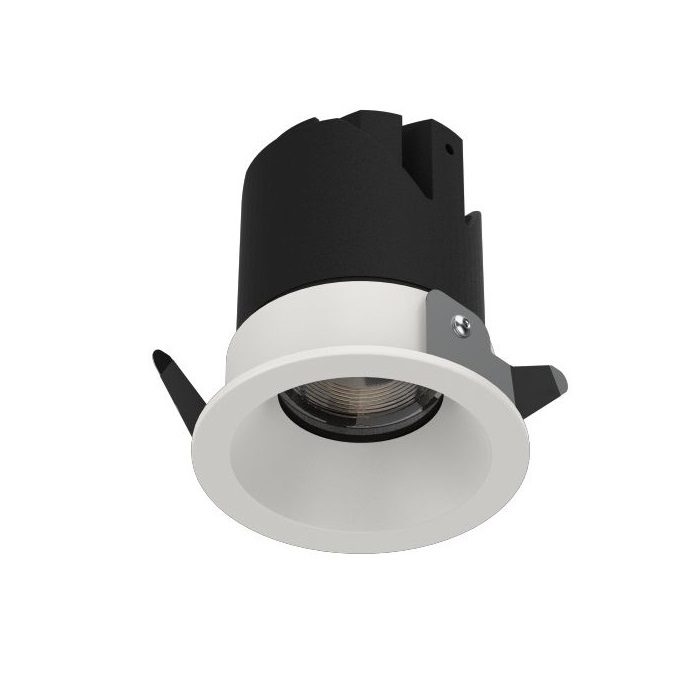

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03522

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Bridgelux branded LED chips CRI>90 3SDCM

Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

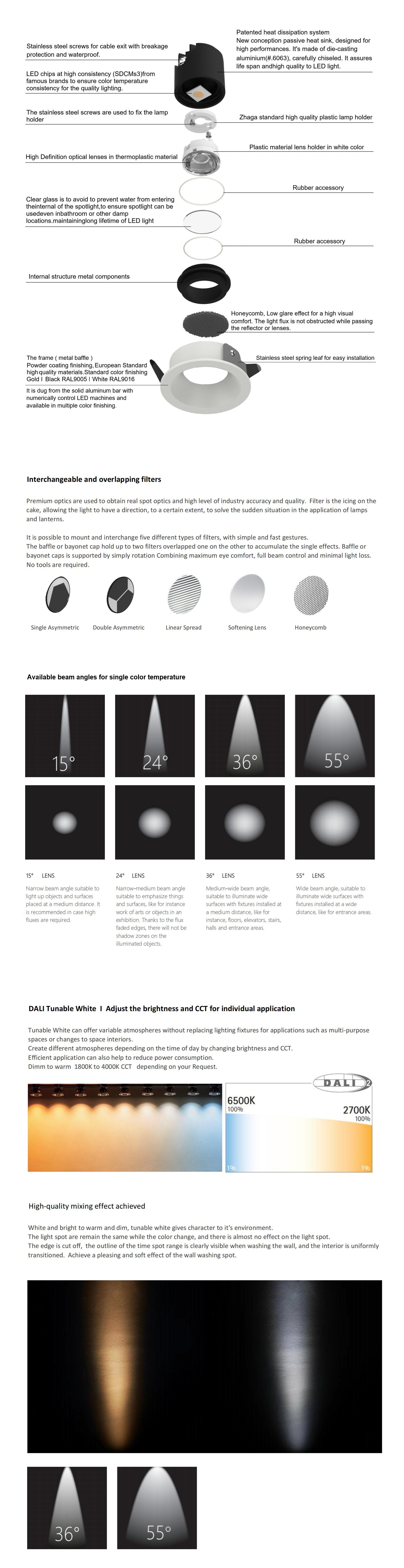

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

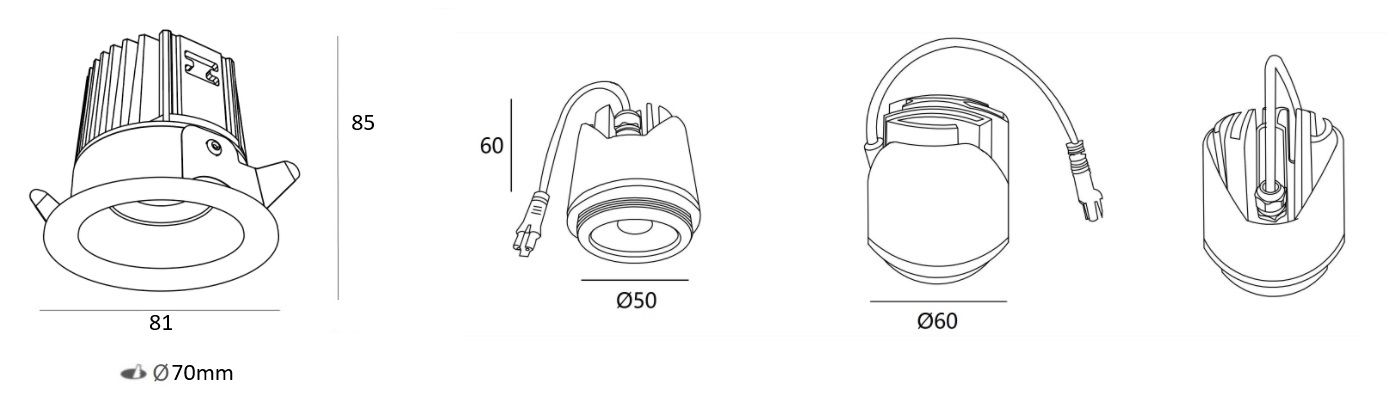

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03522 -15 15W 1350lm
81xH95mm
70mm
350mA
L03522-12 12W 1100lm
81xH95mm
70mm
300mA

FEATURES

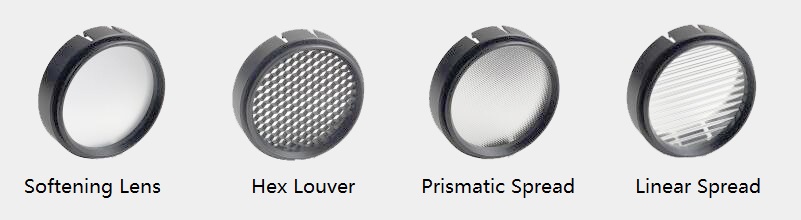

Fixed spotlight , recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, it meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High-quality mixing effect achieved. Dimming from 0~100%, down to 0.01%. High Definition optical lenses in thermoplastic material Ø45mm. Specialized optics and optical filters can be ordered. The standard product comes in RAL 9005 Black I RAL 9016 White. Customized color finishing, power changes are possible depending on the request and the quantity. IP54 It means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
12W   300mA


>
