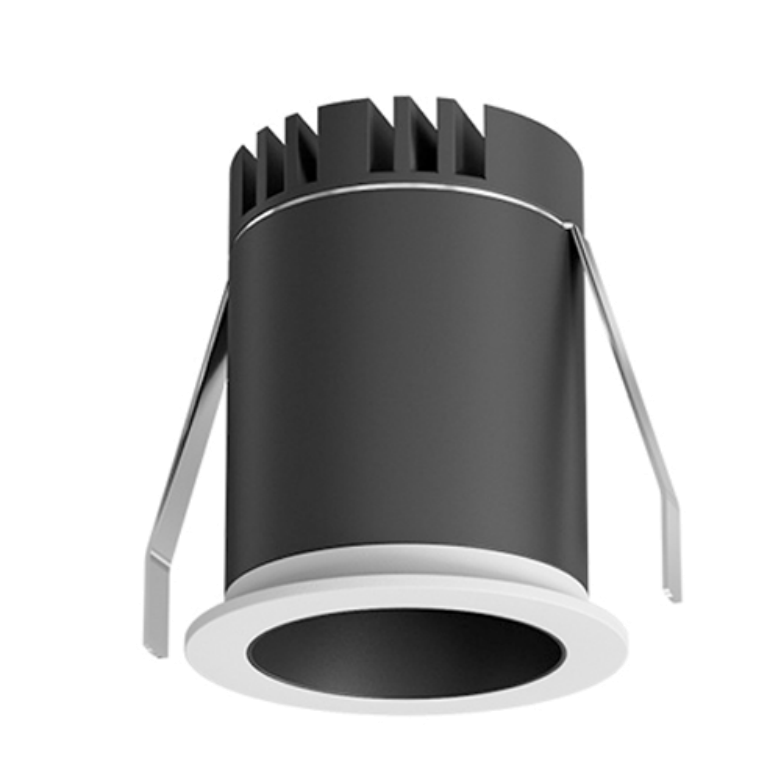

L01010 Spotlight IP20

Aluminium materials powder coating lighting fixture, Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

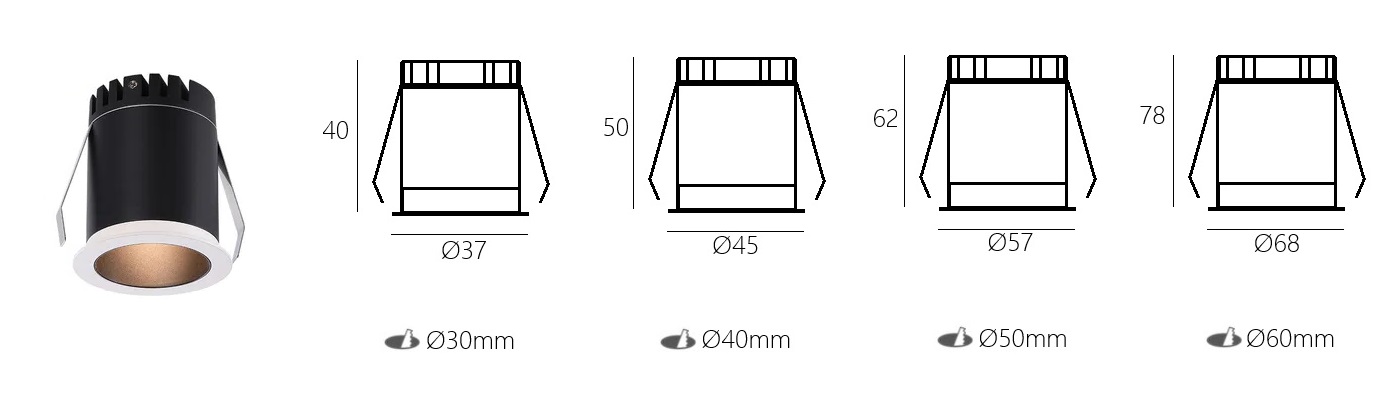

Fixed spotlight with trim, visual comfort low glare optic with deeply recessed light source. Uniform distribution and soft light. Spring for easy installation. Easy to highlight the beauty. Create your customized light atmosphere ,Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. cutout:Ø30mm I 25° cutout:Ø40mm I 25° cutout:Ø50mm I 15° 24° 36° cutout:Ø60mm I 24° 36°

TECHICAL DATA

190-550lm
Remote LED Driver
Aluminium materials powder coating lighting fixture,
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V dimming
Ceiling, wall recessed.
OSRAM LED CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L01010

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium electroplating lighting fixture

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

OSRAM LED 3535

Flicker Free, Remote LED Driver version. High PF

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI TW dimming

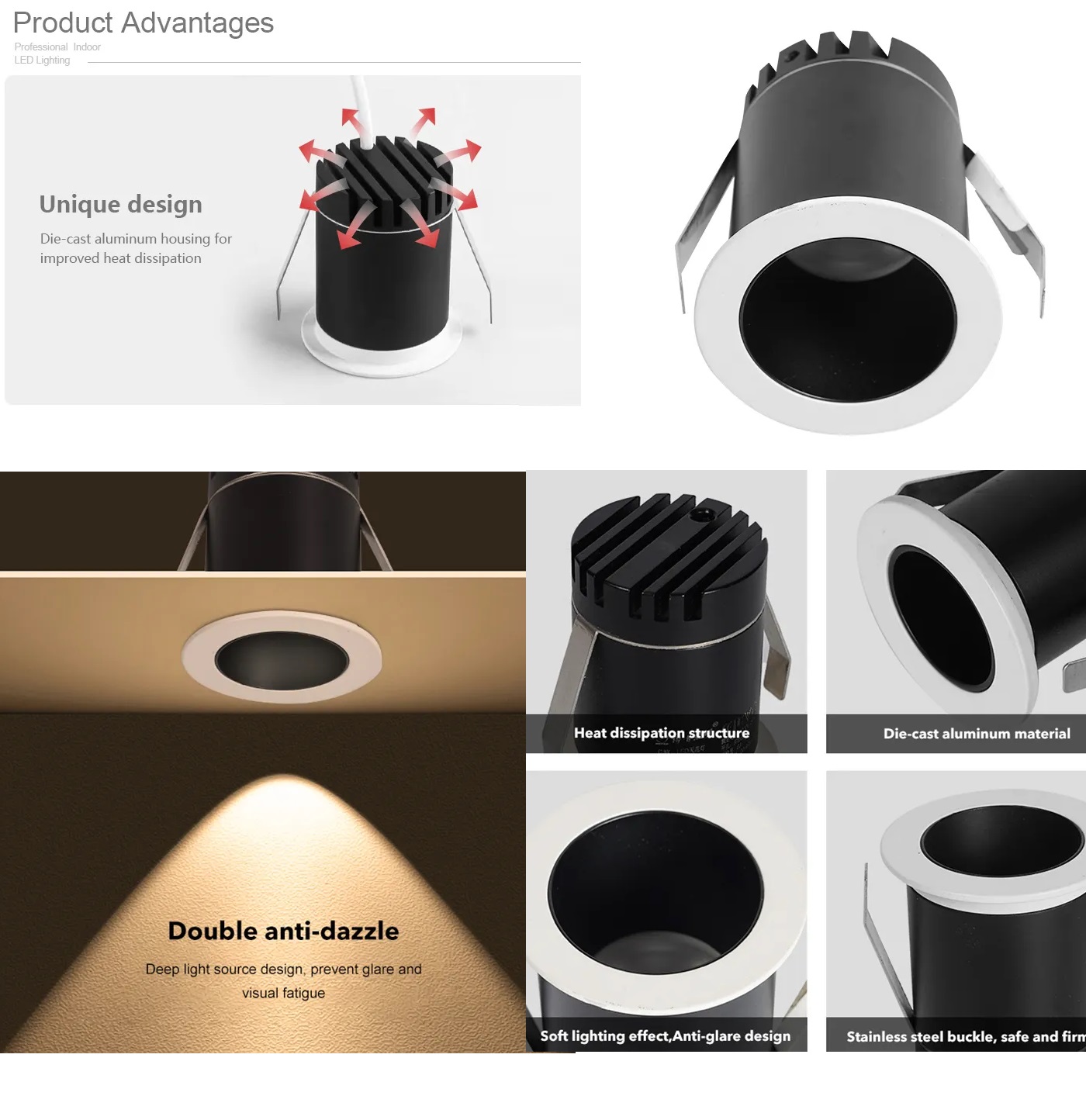

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L01010-3	3W	190lm	37xH40mm	30mm	700mA


L01010-5	5W	230lm	45xH50mm	40mm	100mA


L01010-7	7W	420lm	57xH62mm	50mm	150mA


L01010-10	10W	550lm	68xH78mm	60mm	250mA

FEATURES

Famous brand OSRAM LED Chips I High CRI I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation I mini spot

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
3W 700mA 5W 100mA 7W 150mA 10W 250mA

Data Sheet
