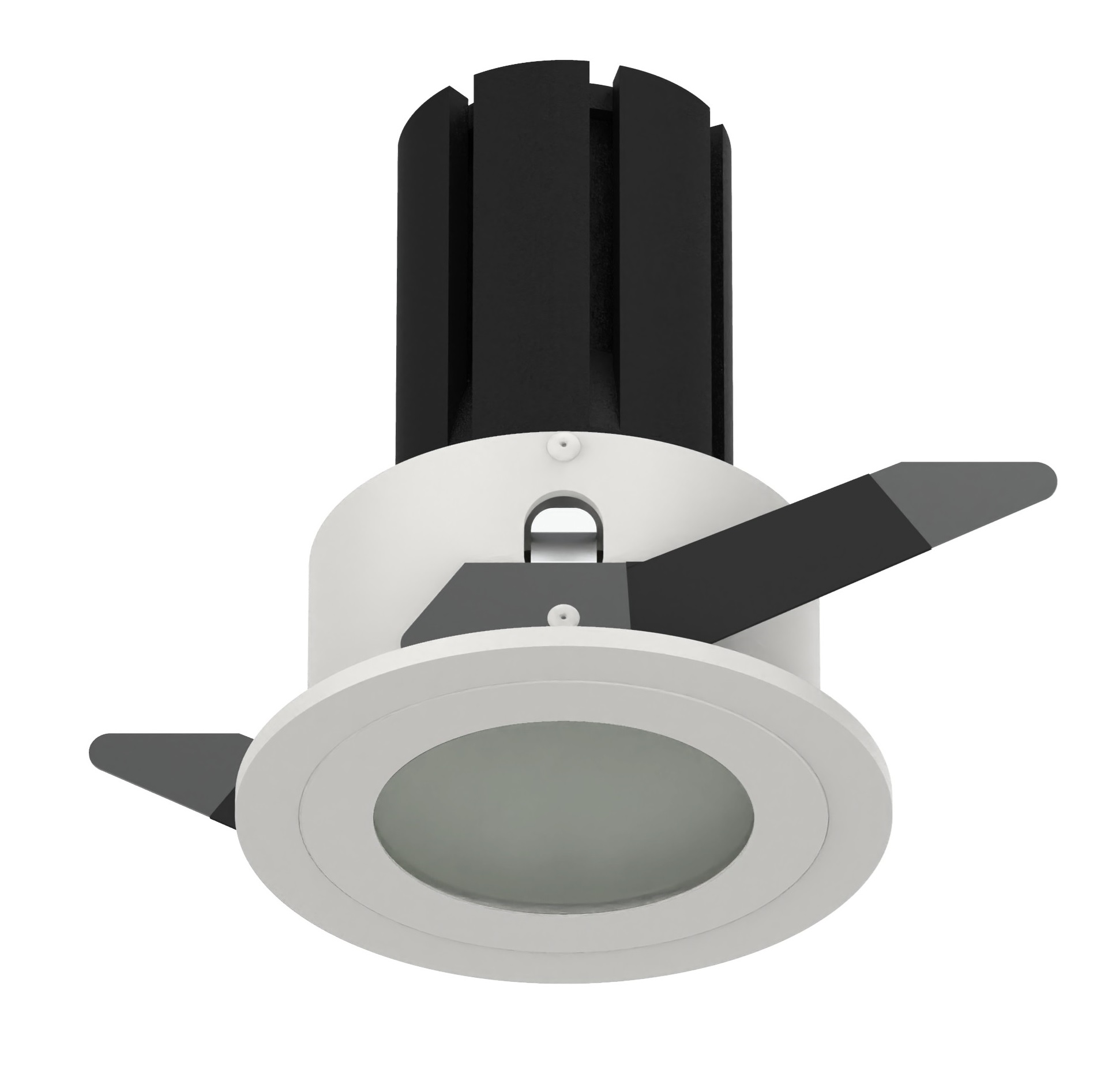

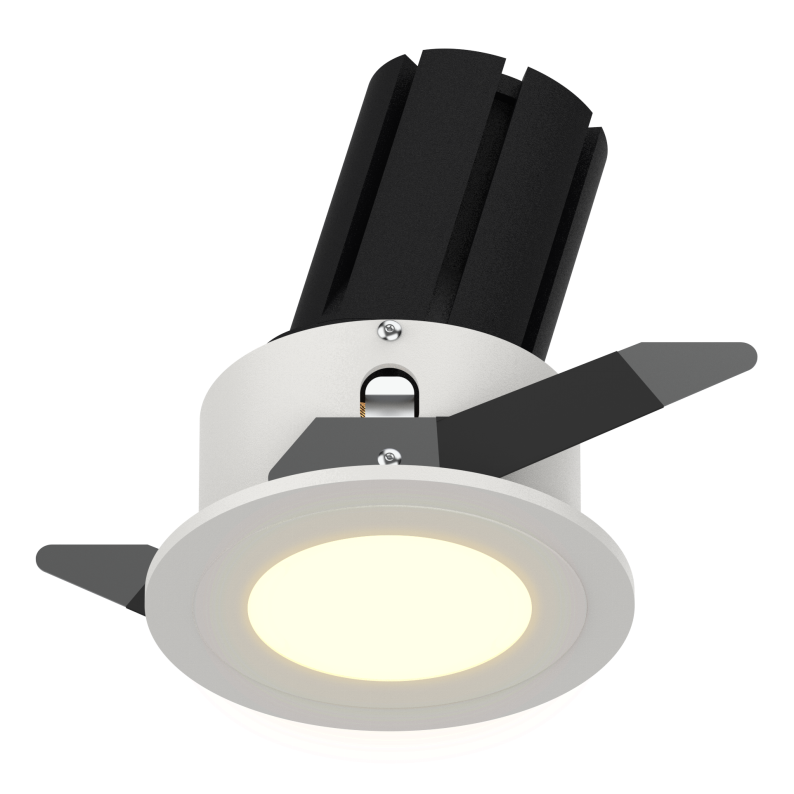

L03235 Down Lighting IP54

Aluminium die-casting material and powder coating. Remote LED driver version. Dimmable. The standard product comes in RAL 9005 Black I RAL 9016 White I IP54 I DALI

The LED light comprise a LED light module(F5445) and a metal mounting frame. Diffuser optical. The downlight offer homogeneous and uniform light distribution. Excellent colour rendering for general lighting, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. DALI Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

550-900lm
Remote LED Driver
Aluminium die-casting lighting fixture, PC diffuser, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DALI dimming
Ceiling, wall recessed.
Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03235

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

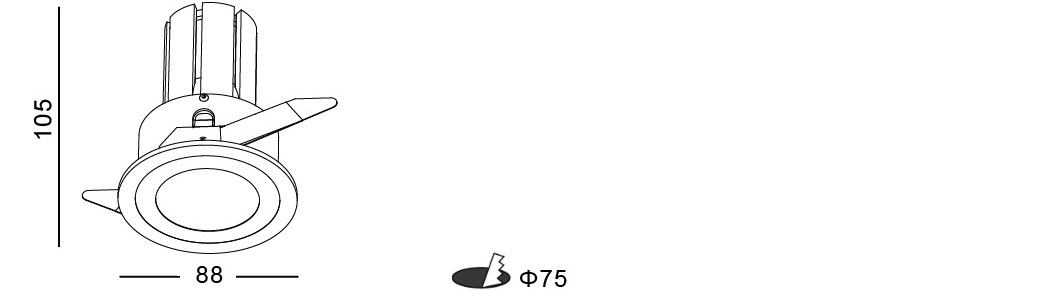

Ø75mm

0/1-10V I Triac I DALI dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03235-7	7W	550lm	88xH75mm	75mm	150mA


L03235-12	12W	900lm	88xH105mm	75mm	300mA

FEATURES

The LED light comprise a LED light module(F5445) and a metal mounting frame. Diffuser optical. The downlight offer homogeneous and uniform light distribution. Excellent colour rendering for general lighting, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. DALI Dimming from 0~100%, down to 0.01%.

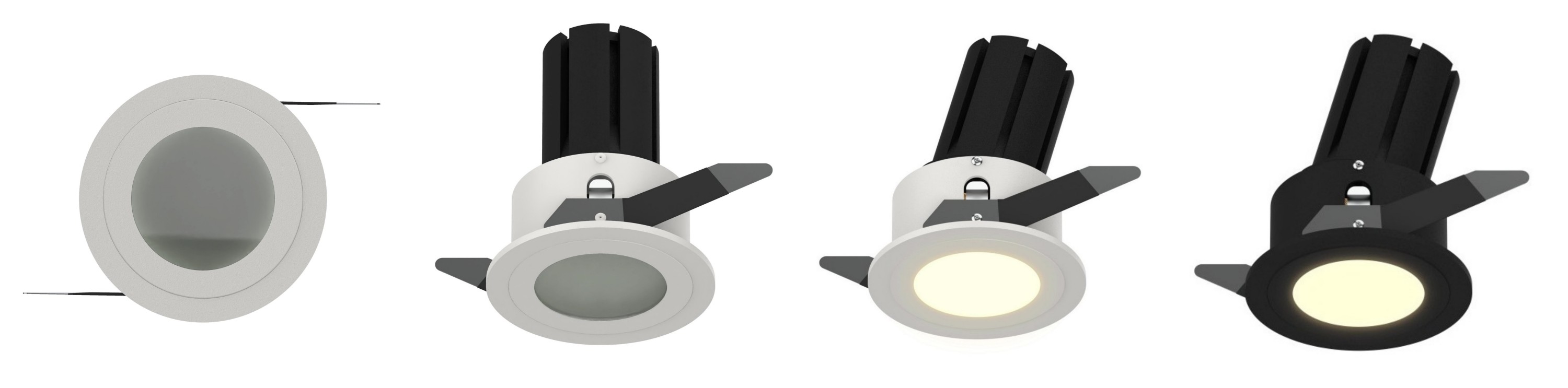

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
7W 150mA 12W 300mA
