7-12W I Ø75

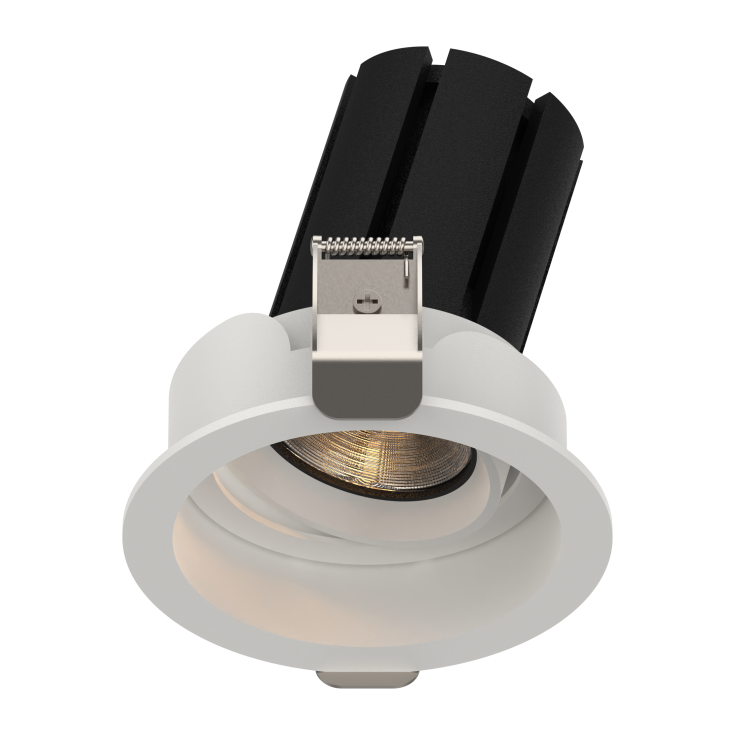

L03237 Spotlight    IP44

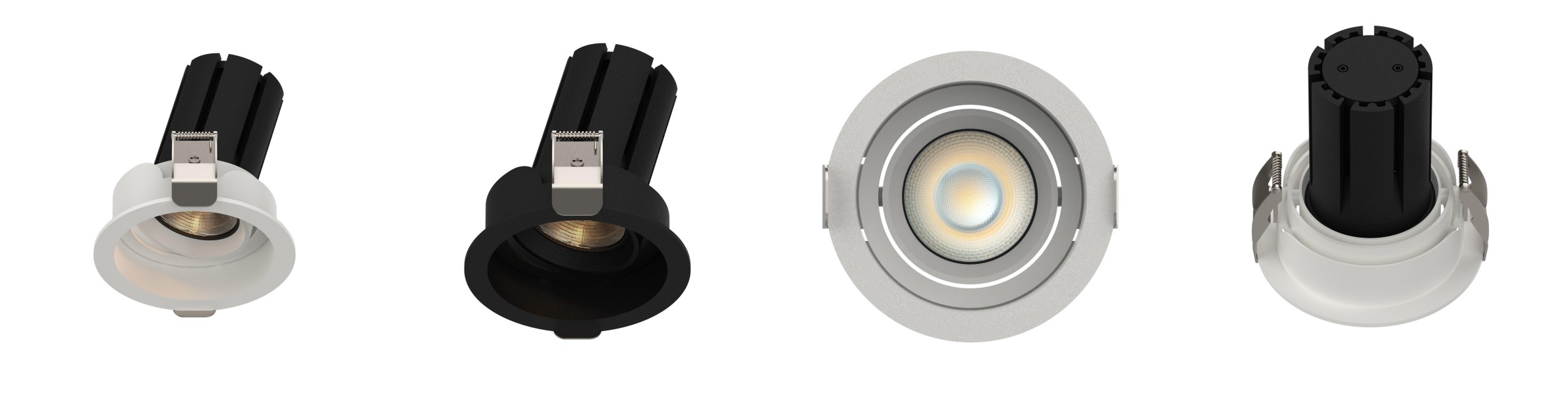

Aluminium die-casting material and powder coating. Remote LED driver version. Dimmable. The standard product comes in RAL 9005 Black I RAL 9016 White I IP44 I DTW dimming

The spotlight comprise a LED light module(A4445) and a metal mounting frame. The spotlight achieved 25°adjustable 355°rotation, Its principle is equivalent to modularity and flexibility at its best. it also facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the lighting modules in further finishing of the room, as the modules can be clicked into the frame afterwards. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. Homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP44 (customized IP54)rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Moreover, the spotlight is compatible with LED light module (A4445TW), high-quality mixing effect achieved. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 650-1150lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03237

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CREE branded COB LED 3SDCM CRI90+

Ø75mm

Remote LED Driver

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

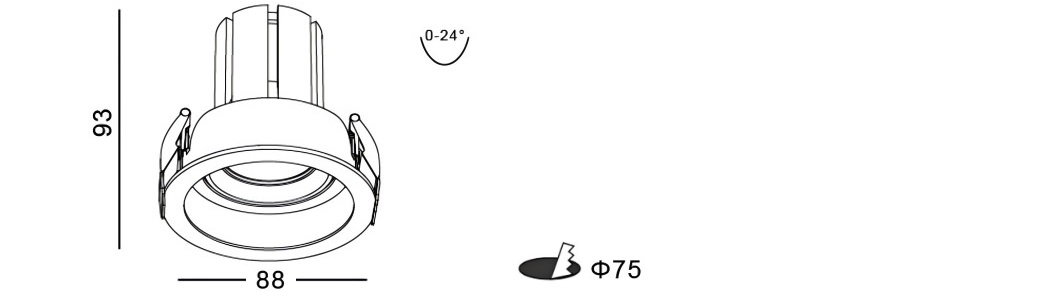

L03237-7 7W 650lm
88xH70mm
75mm
150mA
L03237-12 12W 1150lm
88xH93mm
75mm
300mA

FEATURES

Aluminium die-casting material and powder coating. Remote LED driver version. The spotlight comprise a LED light module(A4445) and a metal mounting frame. The spotlight achieved 25°adjustable 355°rotation, Its principle is equivalent to modularity and flexibility at its best. it also facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the lighting modules in further finishing of the room, as the modules can be clicked into the frame afterwards. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. Homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black I RAL 9016 White, On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP44 (customized IP54)rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   300mA
