Ø81 I Ø90

L03085 Spotlight    IP54

Aluminium die-casting material and powder coating. Remote LED driver version. Dimmable. The standard product comes in RAL 9005 Black I RAL 9016 White I IP54 I DTW dimming

20° adjustable 355°rotation spotlight, it comprise LED light module(F5445) and a metal mounting frame. Remote LED Driver version. Super slim trim, High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. The spotlight offer homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 1100-1350lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • CREE brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03085

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CREE branded COB LED 3SDCM CRI90+

20° adjustable 355°rotation

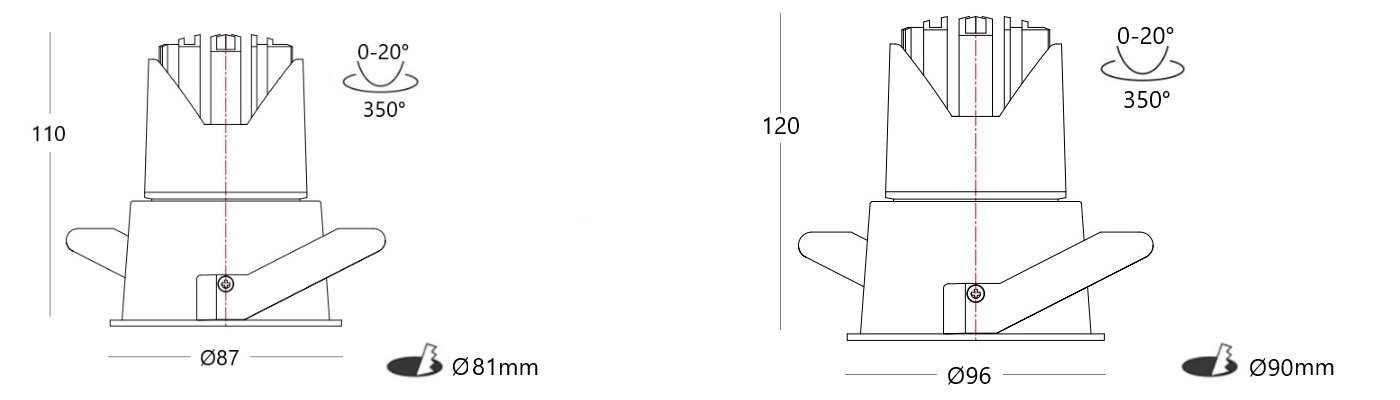

Ø81mm I Ø90mm

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03085-12 12W 1100lm
87xH110mm
81mm		 300mA
L03085-14 14W 1250lm
87xH110mm
81mm		 350mA
L03085-15 15W 1350lm
96xH120mm
90mm		 350mA

FEATURES

20° adjustable 355°rotation spotlight, it comprise LED light module(F5445) and a metal mounting frame. Remote LED Driver version. Super slim trim, High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. The spotlight offer homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimming from 0~100%, down to 0.01%.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
14W   350mA
15W   350mA
