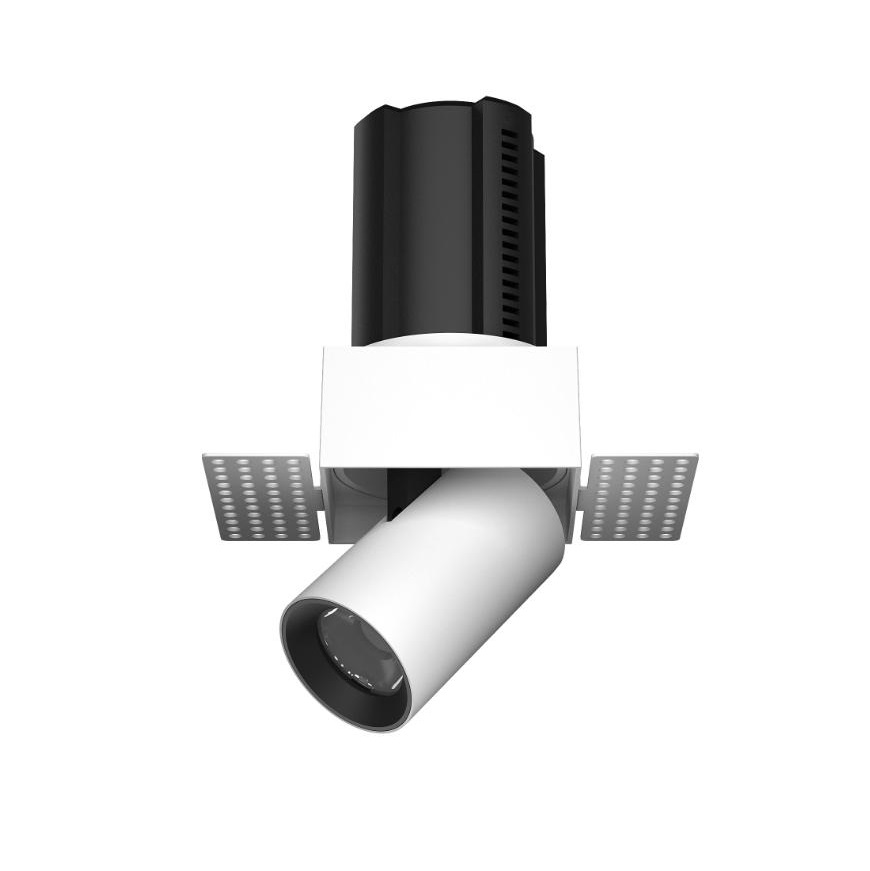

L04203 Spotlight    IP44

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , recessed light source. available for five different output beams 10/15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation trimless or with spring, A small downlight characterized by innovative and surprising solutions.The possibility to take it out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body of trimmed style can either be completely hidden into the ceiling or fully visible to aim it wherever you want. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

  • 630-1800lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • 90°adjustable 355°rotation, pull-out
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L04203

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed Installation

400-600mm cable with quick connector

COB LED I 3SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version.

90°adjustable 355°rotation, pull-out

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L04203-7 7W 630lm
58x58xH94mm
58x58mm
200mA
L04203-12 12W 1080lm
77x77xH116mm
77x77mm
300mA
L04203-20 25W 1800lm
97x97xH144mm
97x97mm
600mA

FEATURES

Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , recessed light source. available for five different output beams 10/15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation trimless or with spring, A small downlight characterized by innovative and surprising solutions.The possibility to take it out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body of trimmed style can either be completely hidden into the ceiling or fully visible to aim it wherever you want. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   200mA
12W   300mA
25W   600mA
