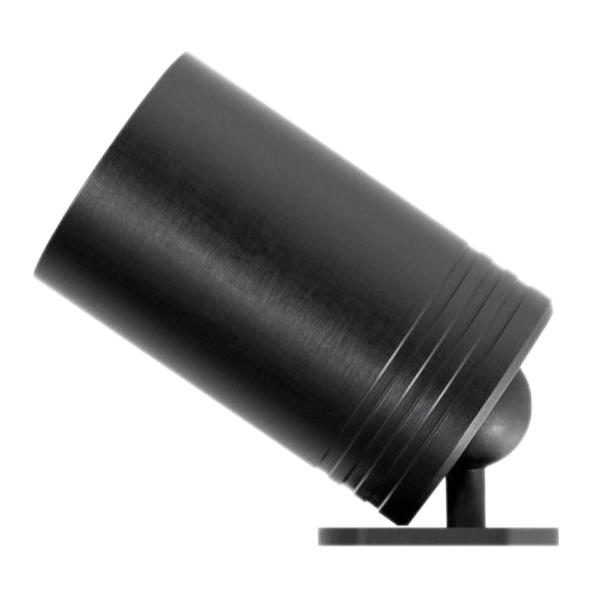

L01026 Spotlight    IP20

Spotlight, 120°adjustable 355°rotation, aluminium material and powder coating. -Romote LED driver version. -Flicker-Free

A few different optics available. Small dimensions. easy to highlight the beauty. Create your customized light atmosphere ,The variety of lighting elements allows to create different light compositions and scenarios in order to obtain customized lighting effects. Soft light . -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. matching the specific look and feel of your design. Series connection, match LTECH DALI 0.1-100% dimming driver V9DC 350mA, normally one piece LED Driver to connect three piece spots,

TECHICAL DATA

  • 225-150lm
  • Remote Driver
  • Aluminium lighting fixture
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V dimmable
  • CEILING RECESSED I SURFACE MOUNTED
  • Famous brand LED chips,- CRI90+ Dimmable- CRI<19

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L01026

IP20

CLASS III

CEILING RECESSED I SURFACE MOUNTED

400-600mm cable with quick connector.

Ceiling thickness 3-20mm

Eyes friendly CE certificate RoHS standard

CRI97 2SDCM CITIZEN COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

MINI SPOT LIGHTING UP EVERY DETAIL CUSTOMIZED LIGHTING EFFECT

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

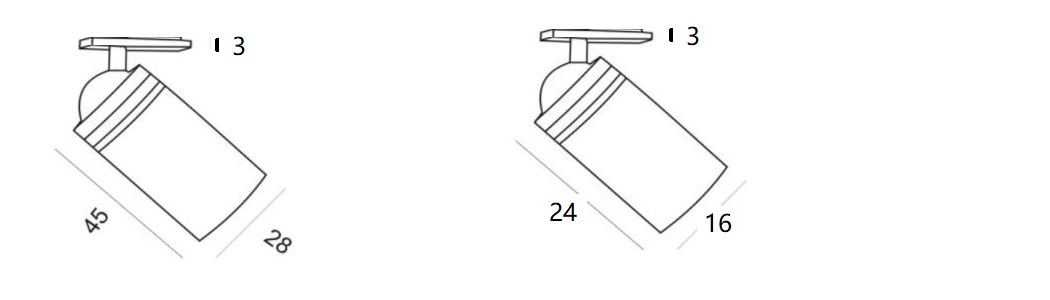

L01026-3 3W 225lm

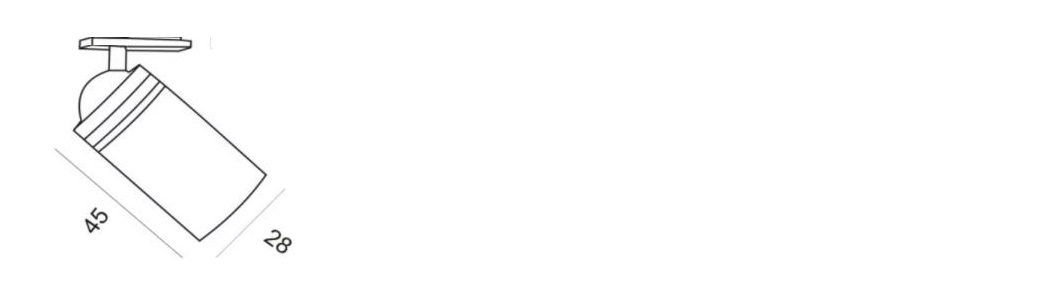

28xH45mm
mm
350mA
L01026-2 2W 150lm
16xH24mm
mm
350mA

FEATURES

Remote Driver Accessoires Beam Angle Color Temperature Finishes
3W   350mA
2W   350mA
