7-35W trimless

L06379 Directional Lighting    IP44

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. CRI97+

Trimless plaster-in installation I double adjustability 25°adjustable 355°rotation, Visual comfort low glare optic with recessed light source.

TECHICAL DATA

  • 600-3100lm
  • Remote LED Driver.
  • Aluminium housing and PMMA LENS, powder coated
  • 300-400mm cable with quick connector.
  • Wall, ceiling recessed
  • Trimless I Adjustable
  • DALI I Triac I 0/1-10V dimmable.

Product is Europe Standard & CE Certificate.

Code System Power
W
Output Lumen
lm

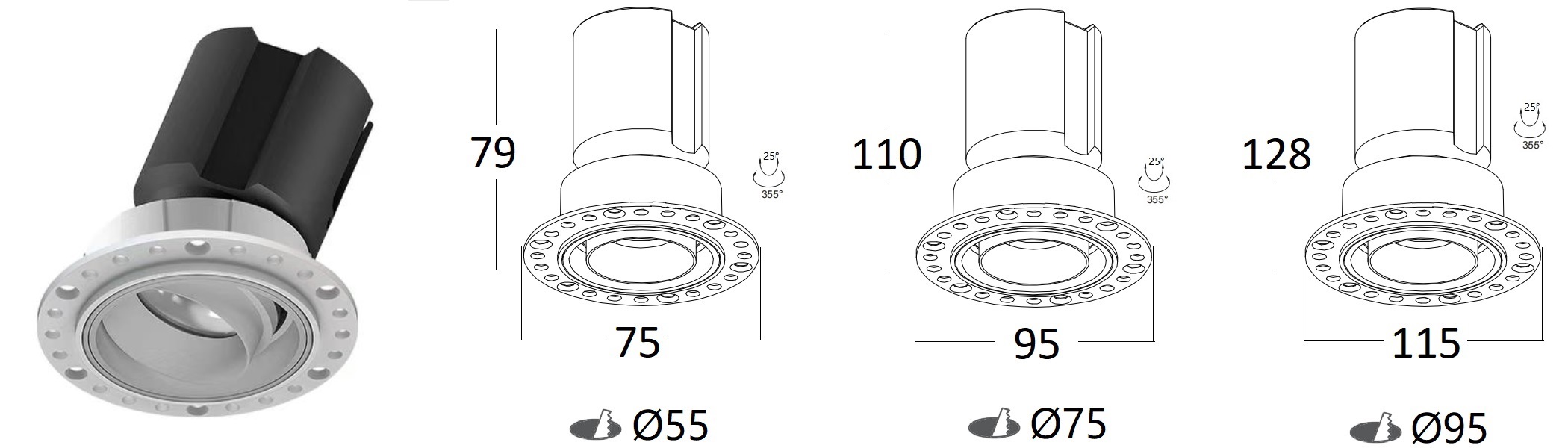

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06379 -7 7W 600lm
75xH79mm
55mm
150mA
L06379 -20 20W 1800lm
95xH100mm
75mm
400mA
L06379 -35 35W 3100lm
115xH128mm
95mm
900mA

FEATURES

Remote LED Driver. Accessoires Beam Angle Color Temperature Finishes
7W   150mA
20W   400mA
35W   900mA
