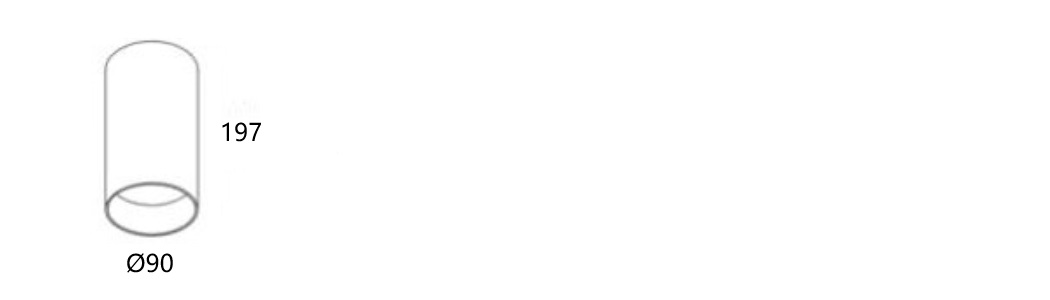

Ø90mm

L08018 Spotlight    IP20

Aluminium die-casting housing and PMMA diffuser, powder coated

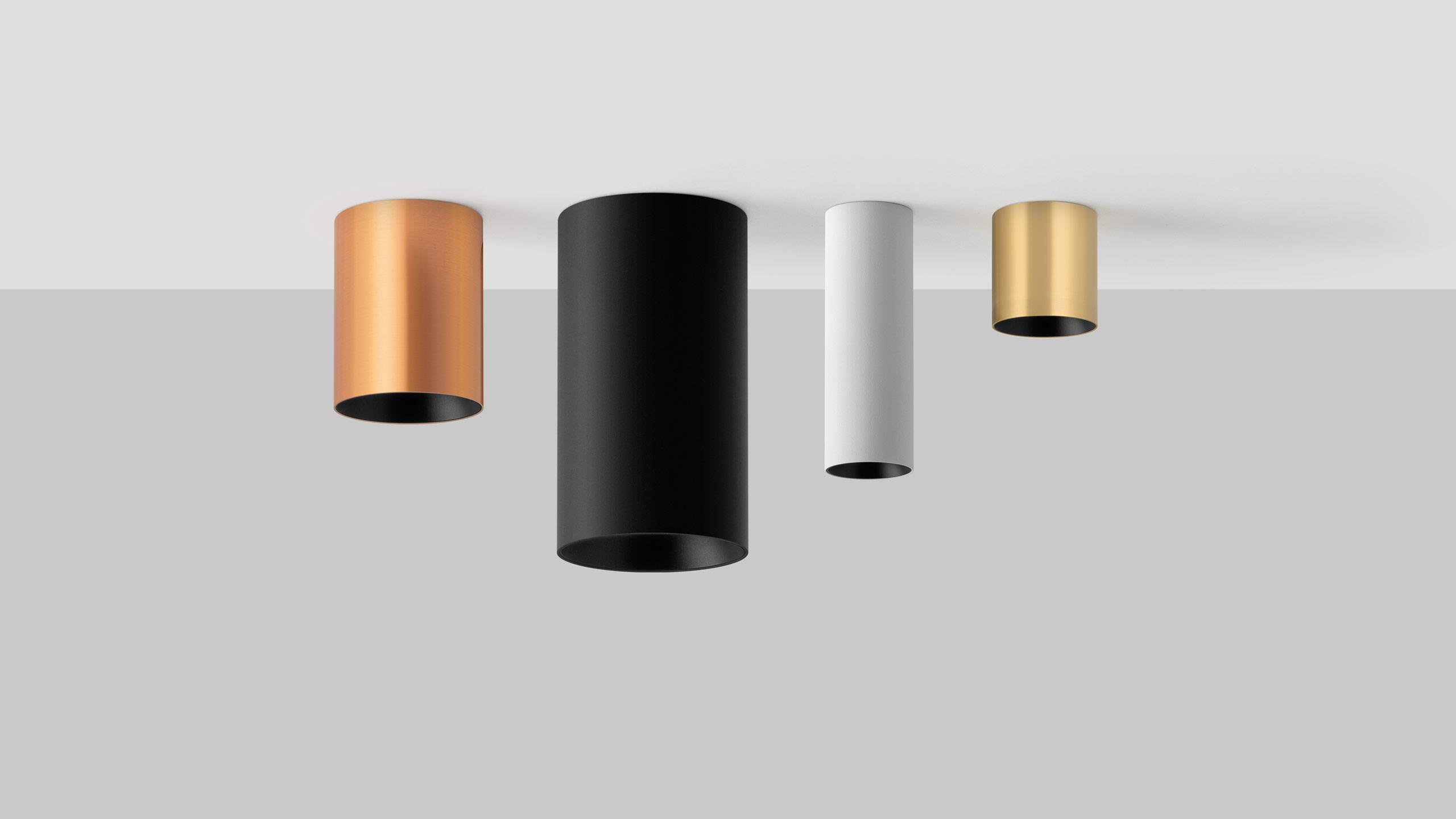

The fixing surface mounted ceilling luminaire, new lens optic creates homogeneous lighting. An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of the body and baffle are possible depending on the request and the quantity. Achieved DALl dimmable. The standard product including on/off LED Driver.

TECHICAL DATA

  • 2600lm
  • Built-in LED Driver
  • FIXED
  • Flicker Free CRI90+ UGR<19
  • 300-400mm cable with quick connector.
  • Surface Mounted
  • Famous brand LED chips CRI90+ 3steps

Product is Europe Standard & CE Certificate.

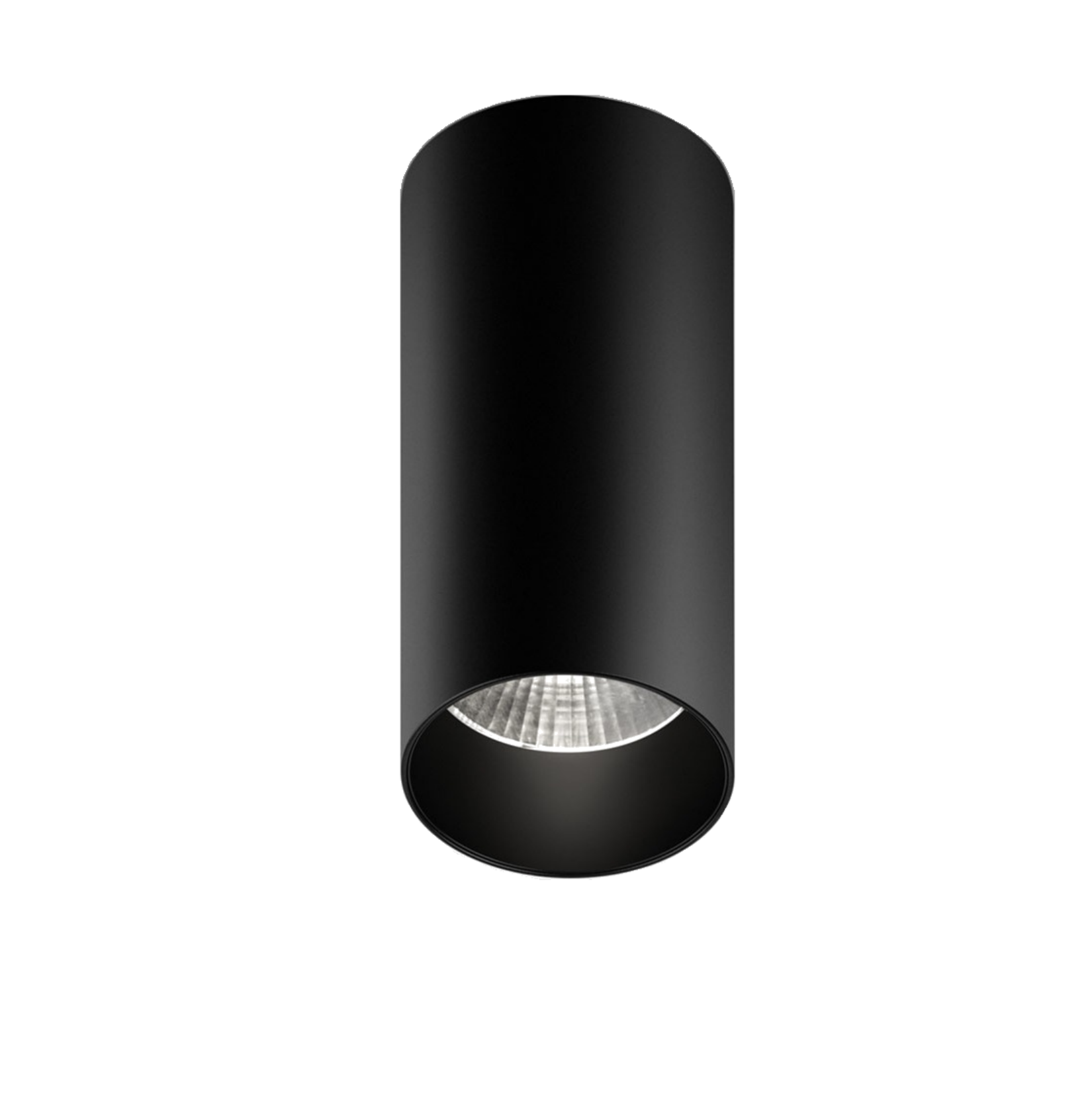

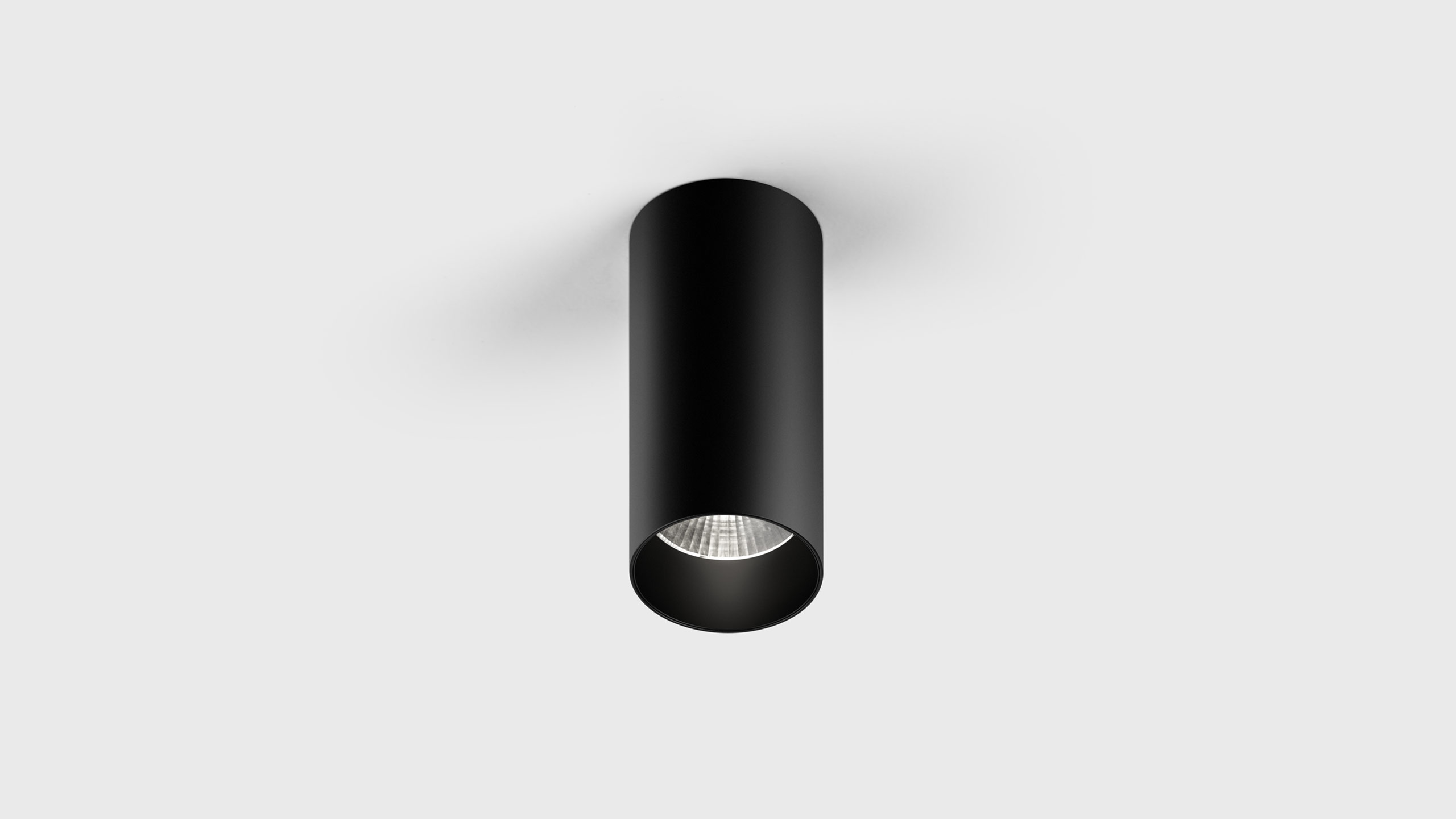

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L08018

IP20

CLASS III

Surface Mounted

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI97 3SDCM CREE COB LED

Europe Standard & CE Certificate. 220-240V 50/60Hz

400-600mm cable with quick connector

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L08018-20 20W 2600lm
90xH197mm
mm		 500mA

FEATURES

The fixing surface mounted ceilling luminaire, new lens optic creates homogeneous lighting. An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of the body and baffle are possible depending on the request and the quantity. Achieved DALl dimmable. The standard product including on/off LED Driver.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
20W   500mA
