Ø35 I Ø45 I Ø55 I Ø65

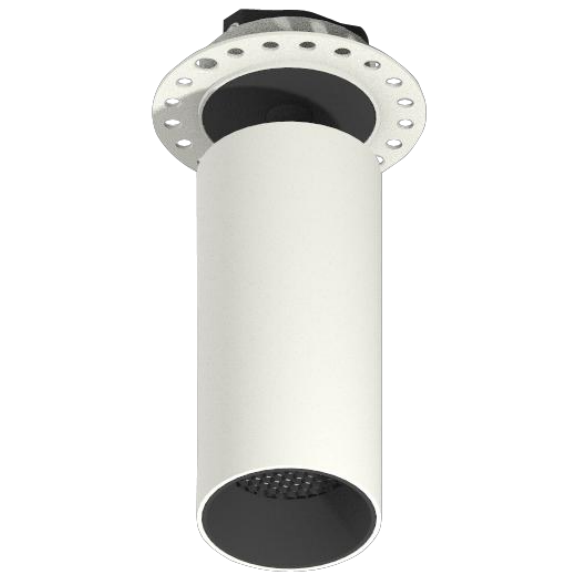

L03165 Spotlight    IP44

Aluminium material and powder coating. - lens version. -Flicker-Free-

The spotlight achieved 90°adjustable 355°rotation, An ideal accent lighting in residential or commercial. - it provides a high level of visual comfort, the high performances and flexibility for every project metal baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle.High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered.-Realize superior lighting space with a deep cut-off angle White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 450-1700lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed
  • Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWNLIGHT

L03165

IP44

CLASS III

Ceiling, wall recessed. Trimless I Plaster-in

Aluminium lighting fixture, powder coated.

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI97 3SDCM CITIZEN COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

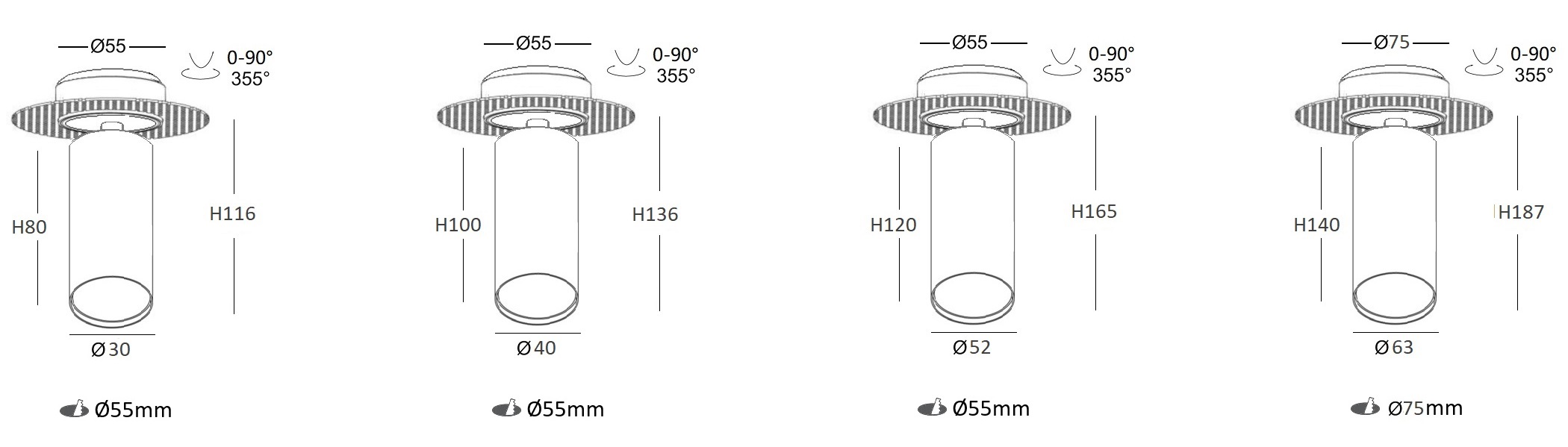

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03165-30 5W 450lm
30xH116mm
55mm
120mA
L03165-40 10W 900lm
40xH136mm
55mm
250mA
L03165-52 15W 1300lm
52xH165mm
55mm
350mA
L03165-63 20W 1700lm
63xH187mm
75mm
500mA

FEATURES

The spotlight achieved 90°adjustable 355°rotation, An ideal accent lighting in residential or commercial. - it provides a high level of visual comfort, the high performances and flexibility for every project metal baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle.High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered.-Realize superior lighting space with a deep cut-off angle White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
10W   250mA
15W   350mA
20W   500mA


>

Download
