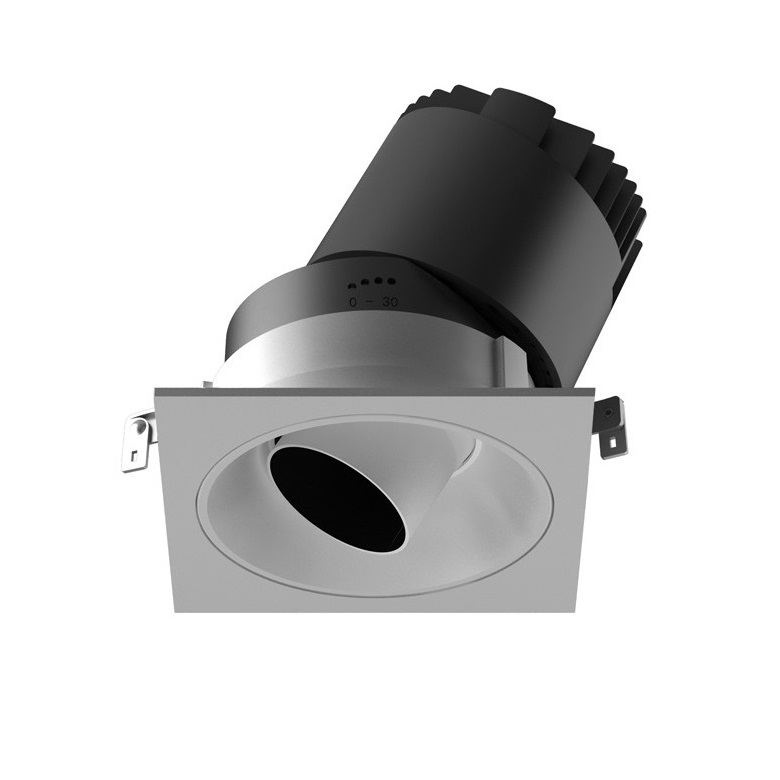

L06193 Directional Lighting    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. CRI90+

Ceiling recessed directional lighting, 30°adjustable 355°rotation . Remote LED driver version. High level of visual comfort. UGR<16 CRI90+ The spot lights offer uniform distribution. deeply recessed light source. High Definition optical reflector in aluminium material. 5years warranty. Flicker-Free. Dimmable. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 595-1300lm
  • Remote LED Driver.
  • Aluminium housing and PMMA LENS, powder coated
  • 300-400mm cable with quick connector.
  • Wall, ceiling recessed
  • 30°adjustable 355°rotation I UGR<16
  • DALI I Triac I 0/1-10V I TW Dimmable.

Product is Europe Standard & CE Certificate.


Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L06193-7 7W 595lm
86x86xH109mm
75mm
125mA
L06193-12 12W 1020lm
86x86xH109mm
75mm
300mA
L06193-15 15W 1300lm
86x86xH109mm
75mm
350mA

FEATURES

Remote LED Driver. Accessoires Beam Angle Color Temperature Finishes
7W   125mA
12W   300mA
15W   350mA
