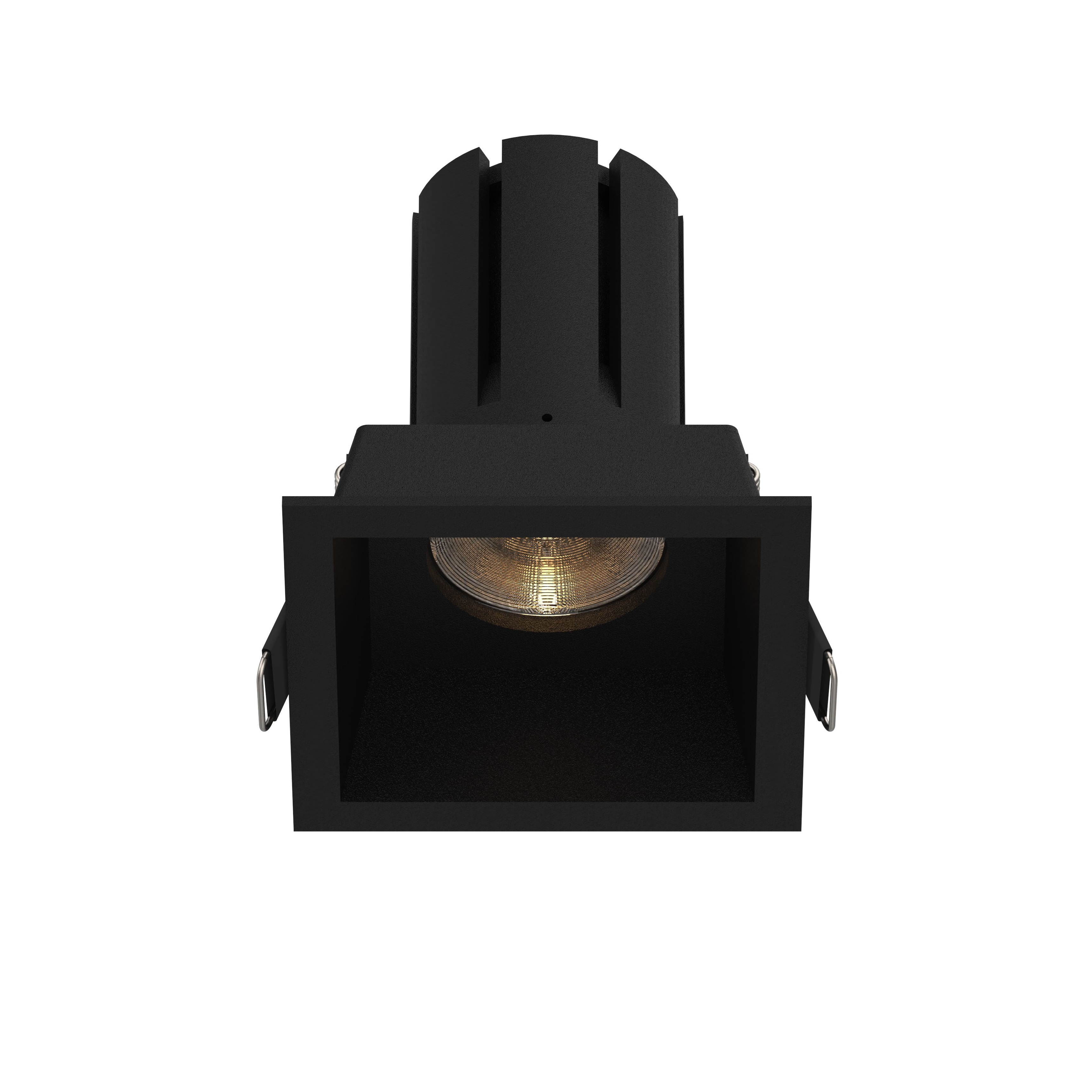

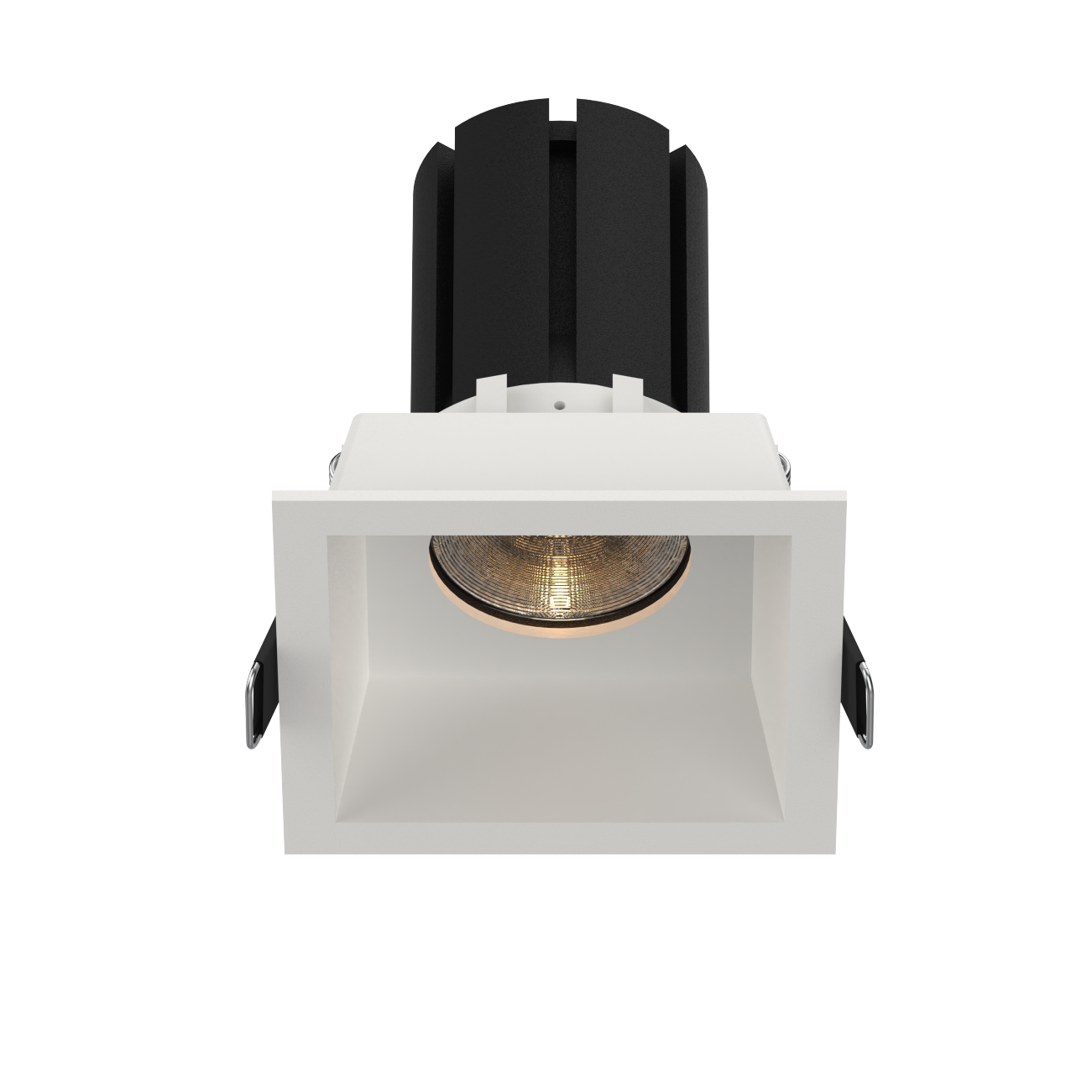

L03225 Spotlight    IP54

Aluminium die casting housing/heat-sink, powder coating. Remote LED driver version.

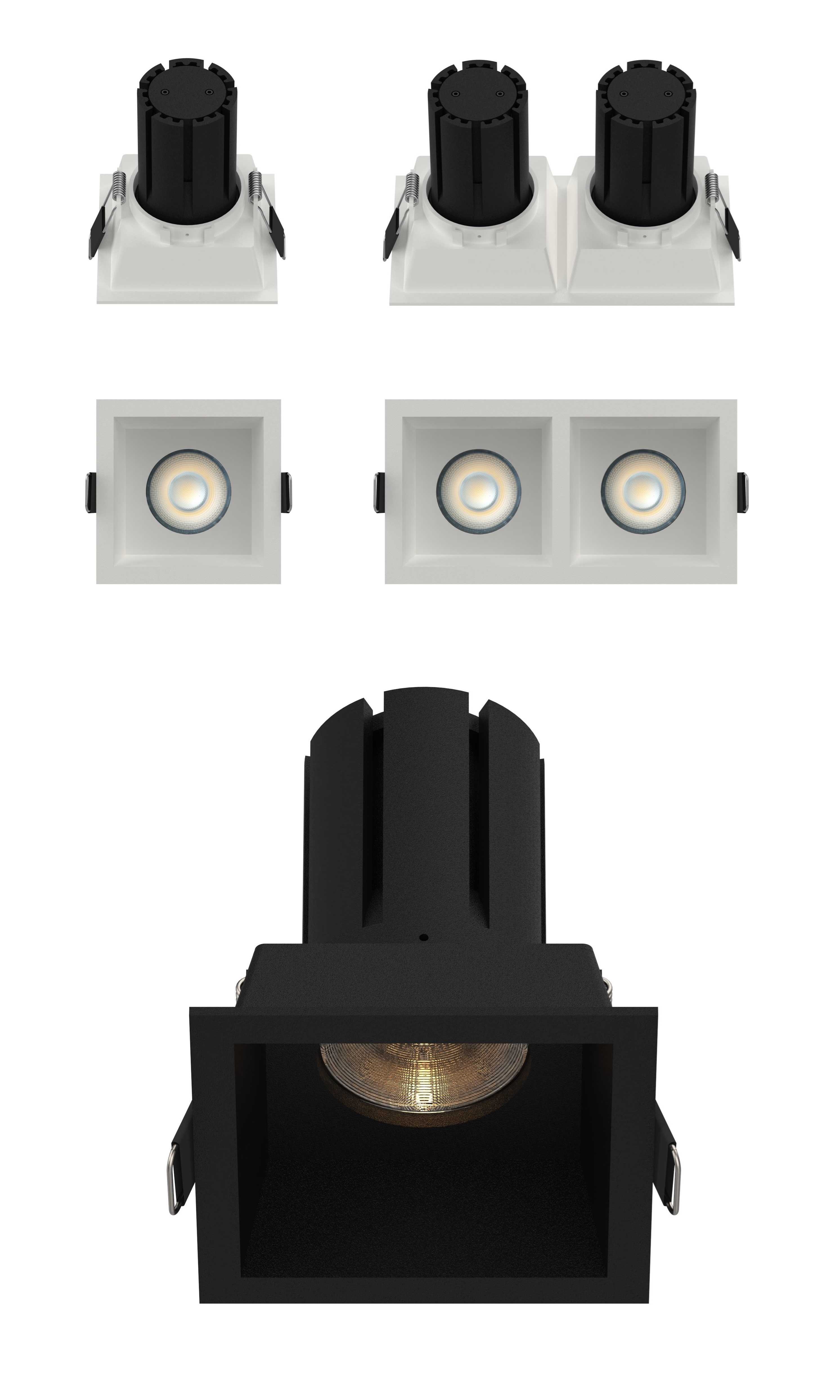

Fixing spotlight, recessed light source. Luminaires in this line have modular design. They comprise a LED light module and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 45°. easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. High-quality mixing effect achieved. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 1150-1450lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • DALI Tunable White 2700K-6500K CCT.
  • DALI I Triac I 0/1-10V I Tunable White dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03225

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

75x75mm

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

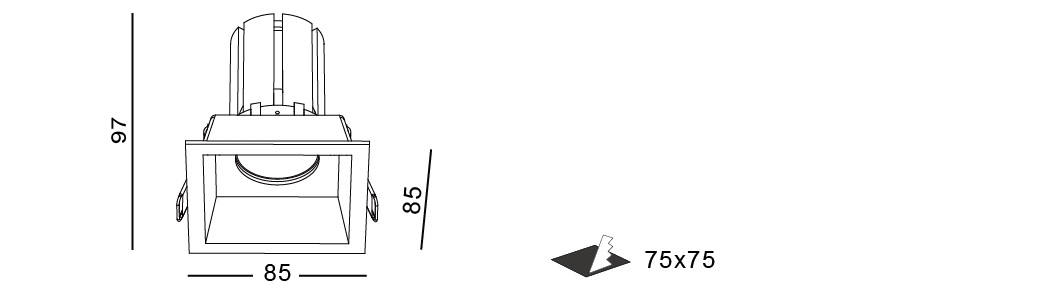

L03225-12 12W 1150lm
85x85xH90mm
75x75mm
300mA
L03225-15 15W 1450lm
85x85xH97mm
75x75mm
350mA

FEATURES

Fixing spotlight, recessed light source. Luminaires in this line have modular design. They comprise a LED light module and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 45°. easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. High-quality mixing effect achieved. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
15W   350mA
