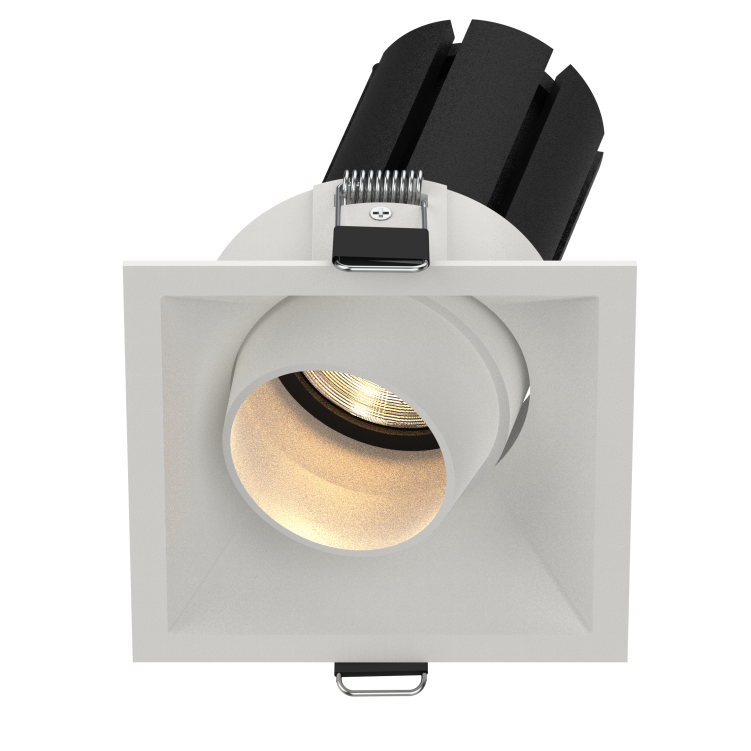

L03232 Spotlight IP44

Aluminium die-casting material and powder coating. Remote LED driver version. Dimmable. The standard product comes in RAL 9005 Black I RAL 9016 White I IP44 I Dimmable

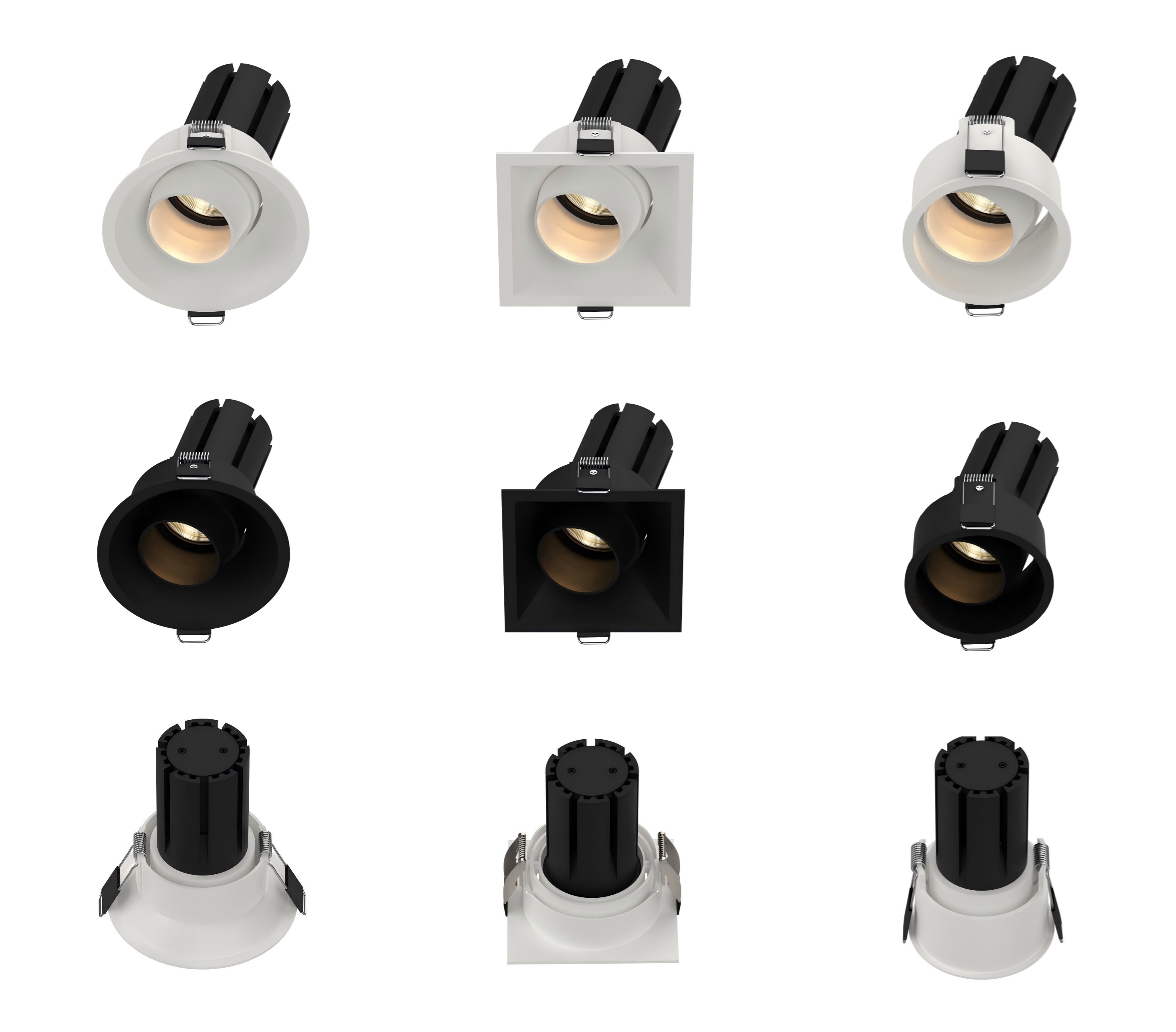

It's a family of projectors and downlights with minimum dimensions (Ø45mm) but with high lighting performance (650-1150 lm output), available in various configurations. The series, which offers designer multiple benefits, is unique in terms of flexibility and adaptability to a variety of contexts. Thanks to its new decorative rings, it's the ideal combination of technical performance and emotional reach. Visual comfort is guaranteed by the deeply recessed light source, and thanks to the easy-to-change clip. the system allows you to quickly modify any lighting scene. guarantee the professional great freedom of expression and customisation. An ideal solution for retail and residential use. A collection that’s in step with current trends and emotions.

TECHICAL DATA

650-1150lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Dimmable
Ceiling, wall recessed.
Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03232

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CREE COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

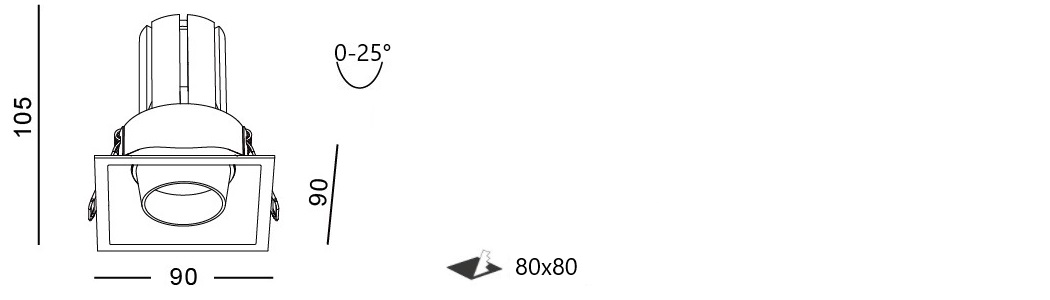

80x80mm

0/1-10V I Triac I DALI dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03232-7	7W	650lm	90x90xH75mm	80x80mm	150mA


L03232-12	12W	1150lm	90x90xH105mm	80x80mm	300mA

FEATURES

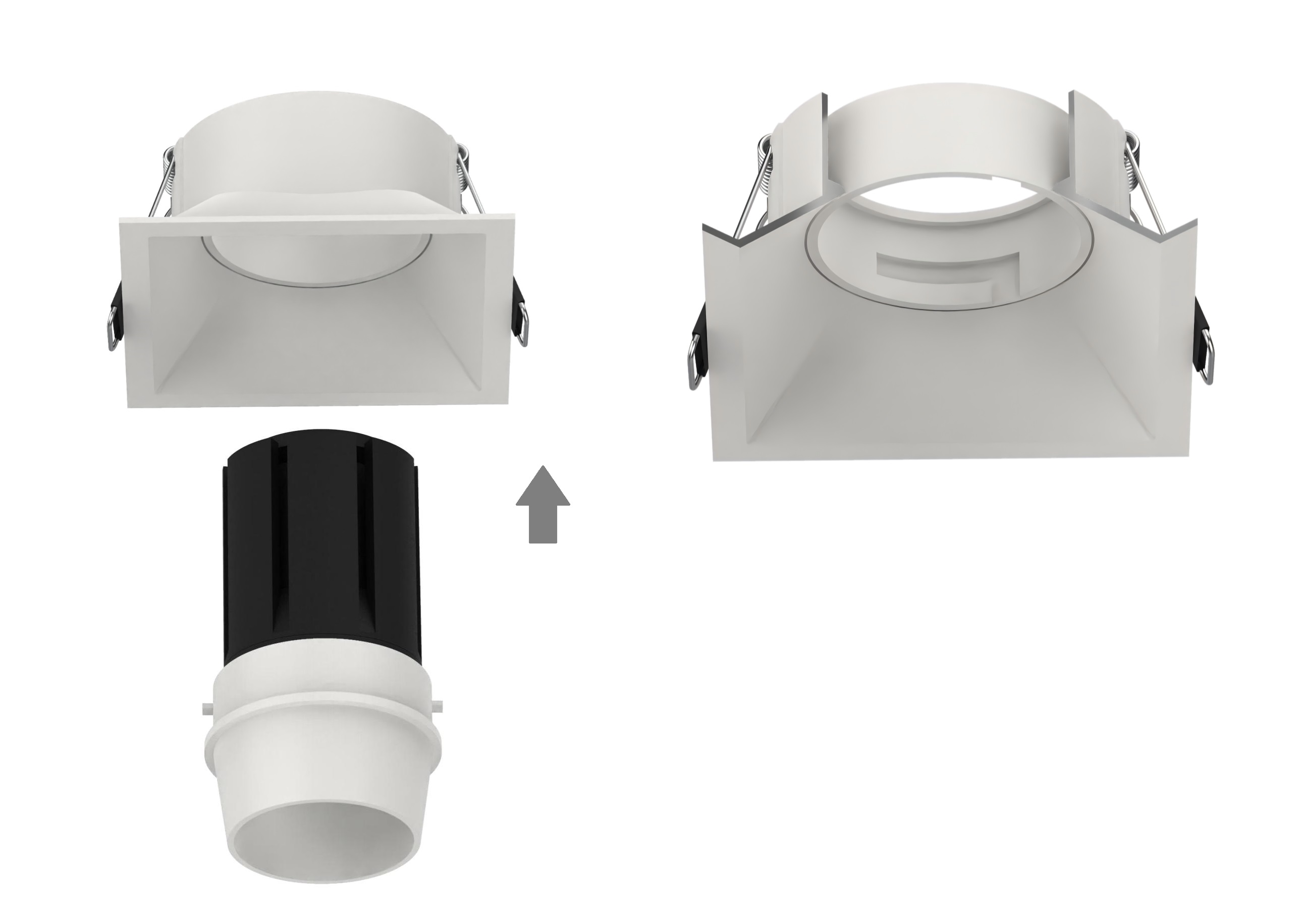

The spotlight comprise a LED light module(A4445) and a metal mounting frame. It achieved 25°adjustable. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. The spotlight offer homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. IP44 (customized IP54)rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. An ideal solution for retail and residential use.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
7W 150mA 12W 300mA

Data Sheet
