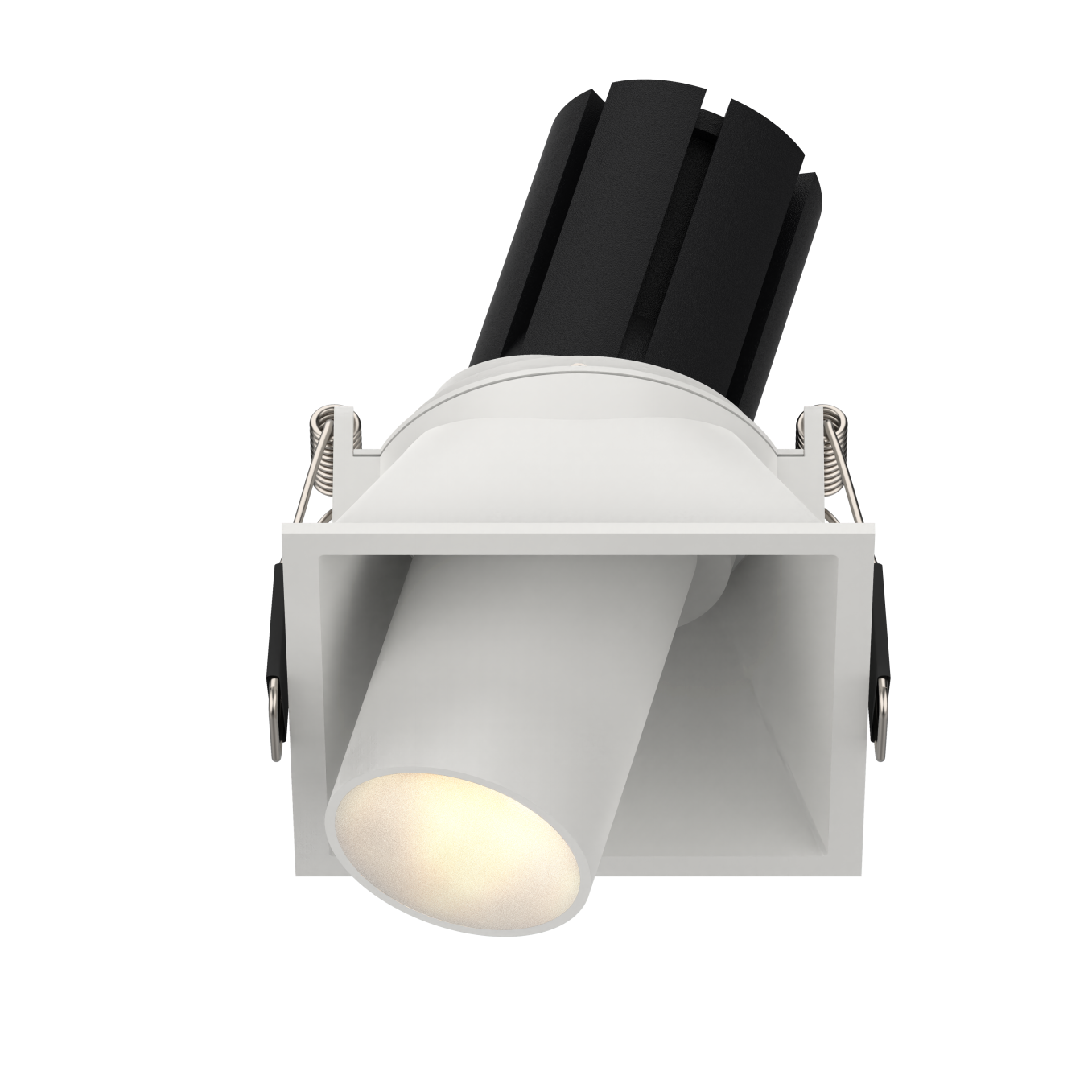

L03239 Spotlight IP44

Aluminium die-casting material and powder coating. Remote LED driver version. Dimmable. The standard product comes in RAL 9005 Black I RAL 9016 White I IP44 I DTW dimming

The spotlight comprise a LED light module(A4445) and a metal mounting frame. The spotlight achieved 25°adjustable 355°rotation, High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. The spotlight offer homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. DALI Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

490-840lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03239

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

85x85mm

0/1-10V I Triac I DALI dimmable

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

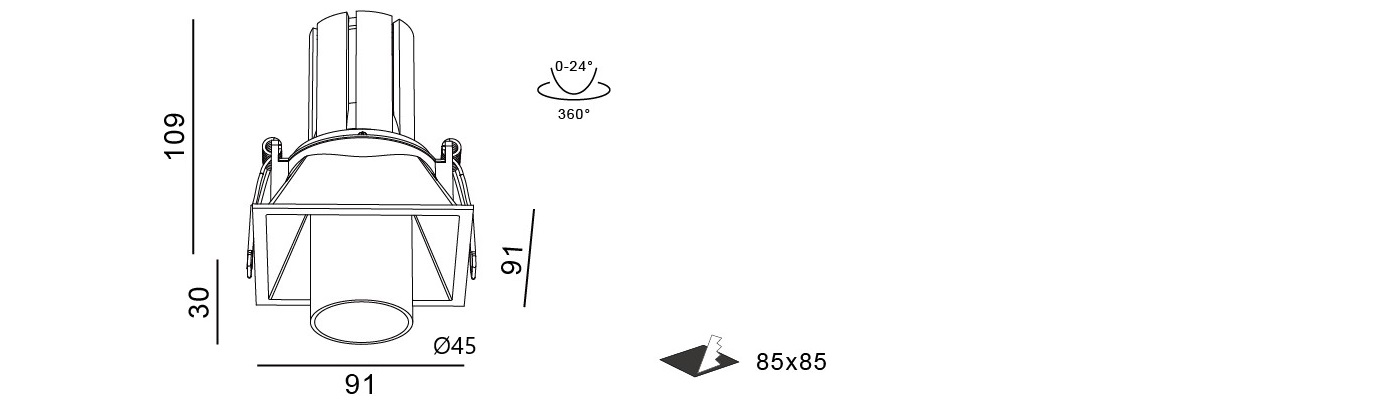

L03239-7	7W	490lm	91x91xH109mm	85x85mm	150mA


L03239-12	12W	840lm	91x91xH109mm	85x85mm	300mA

FEATURES

The spotlight comprise a LED light module(A4445) and a metal mounting frame. The spotlight achieved 25°adjustable 355°rotation, High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. The spotlight offer homogeneous and uniform light distribution. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. DALI Dimming from 0~100%, down to 0.01%.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
7W 150mA 12W 300mA
