100 I 125 I 150

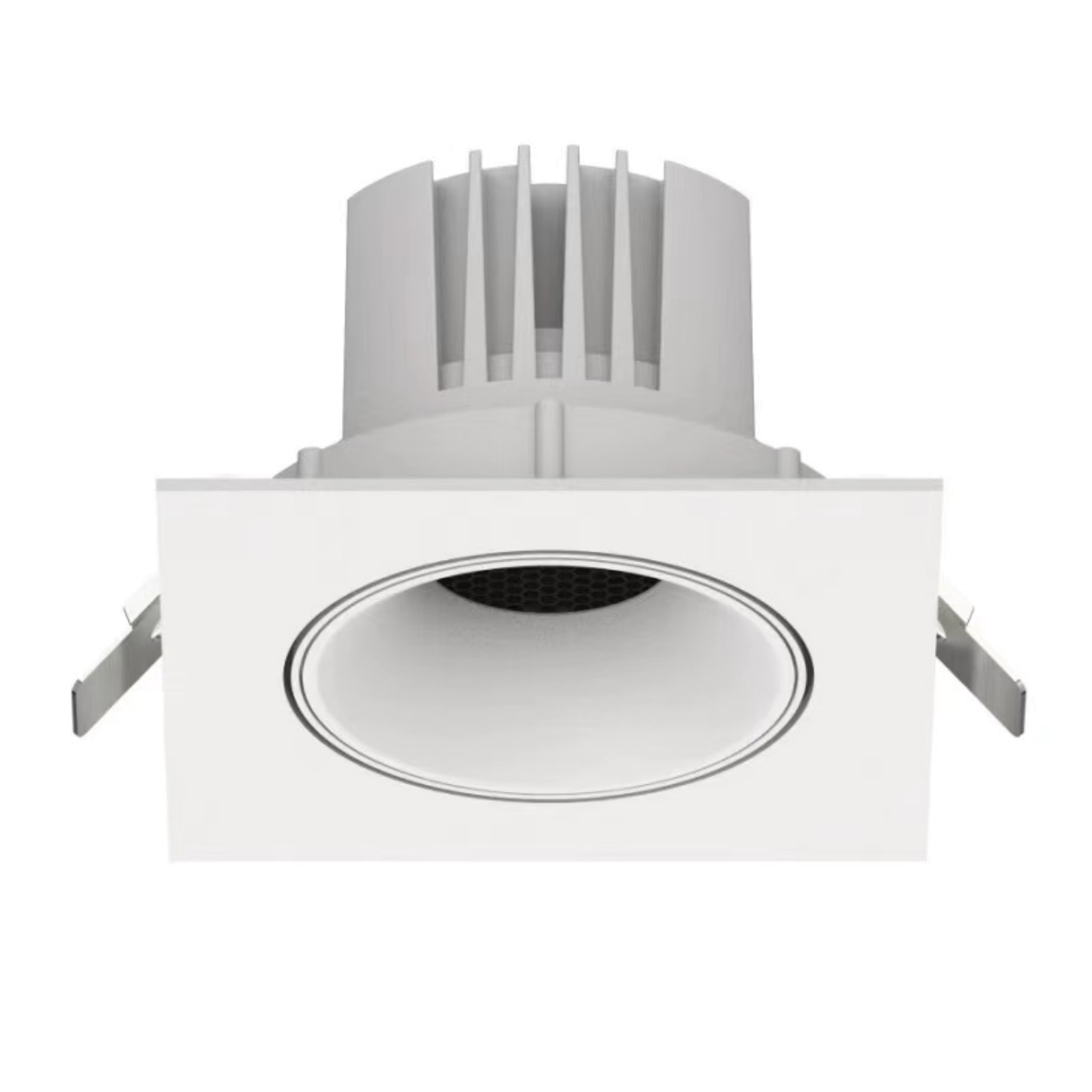

L02053 Spotlight    IP20

Aluminium die-casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

Adjustable spotlight, trim version, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, customized IP54 rating on same one luminaries is acceptable, it means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. 5 years warranty.

TECHICAL DATA

  • 1080-3150lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02053

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

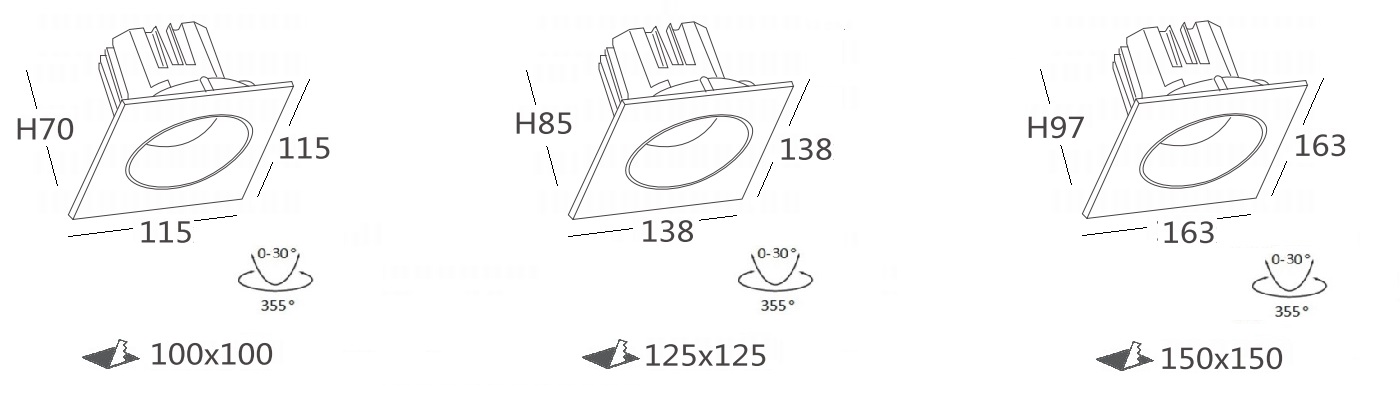

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02053-12 12W 1080lm
115x115xH70mm
100x100mm
300mA
L02053-20 20W 1800lm
138x138xH90mm
125x125mm
500mA
L02053-35 35W 3150lm
163x163xH100mm
150x150mm
900mA

FEATURES

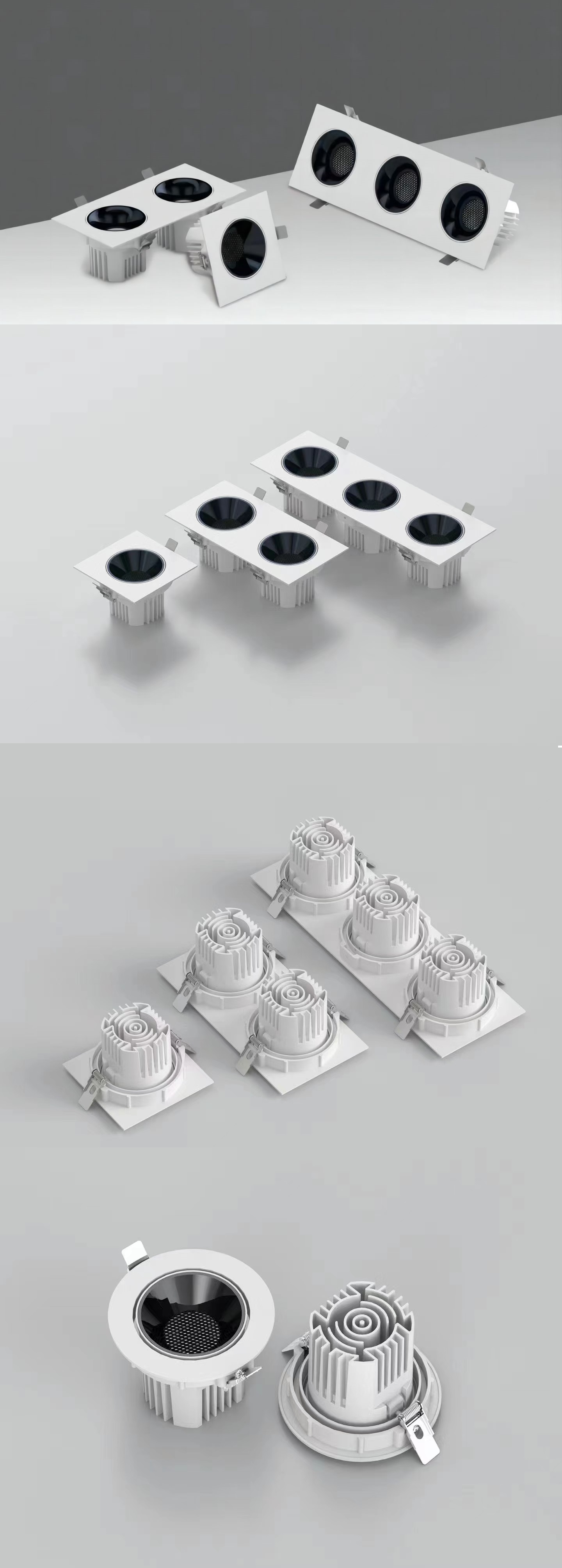

Famous brand COB LED Chips I 3SDCM I High CRI I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify installation I One housing, multiple options, with different light distributions for a wide varirty of applications. I Luminaires in this line is family design.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
20W   500mA
35W   900mA
