L06058 Spotlight IP20

Die-cast aluminum and thermoplastic

Linear miniaturised recessed luminaire with LED lamps - fixed optics - a few beam angle for option. Despite the ultra compact size of the product. the technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Version with perimeter surface frameless. High CRI. - Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. square spot/wall washer/rectangular spot.

TECHICAL DATA

90-1500lm
Remote LED Driver
Aluminium material lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed. slim trim
OSRAM LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06058

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling wall recessed,

5years warranty

OSRAM LED3030 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI dimmable

UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

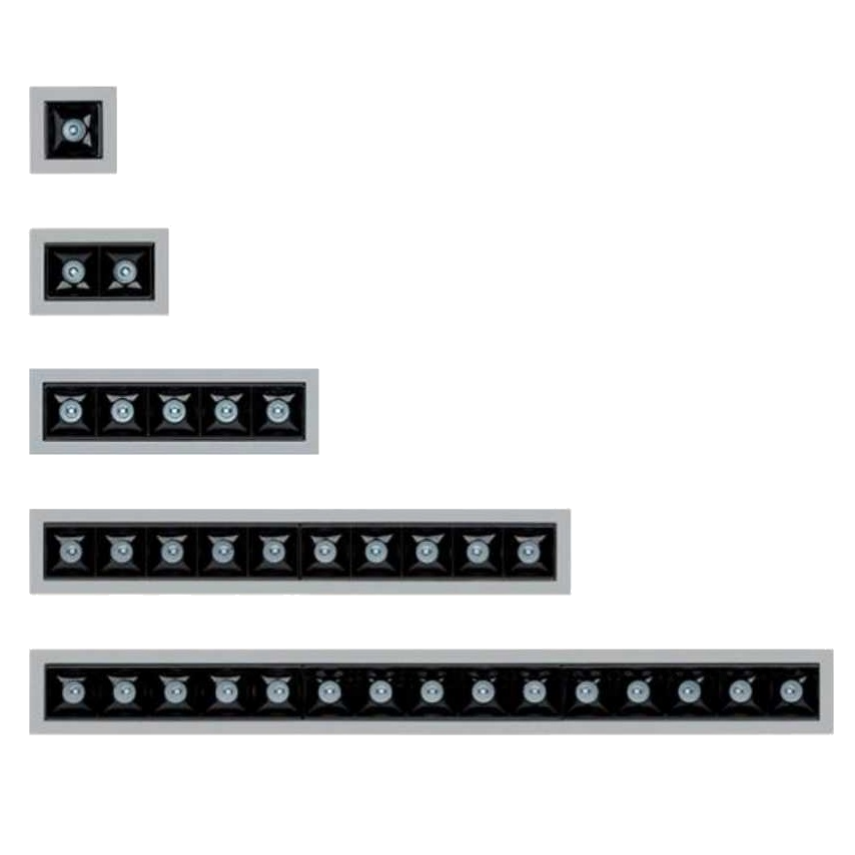

L06058-2	2W	90lm	45x45xH50mm	35x35mm	600mA


L06058-4	4W	200lm	75x45xH50mm	65x35mm	600mA


L06058-10	10W	550lm	147x45xH50mm	140x37mm	600mA


L06058-20	20W	1100lm	280x45xH50mm	270x35mm	600mA


L06058-30	30W	1500lm	410x45xH50mm	400x35mm	600mA

FEATURES

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
2W 600mA 4W 600mA 10W 600mA 20W 600mA 30W 600mA
