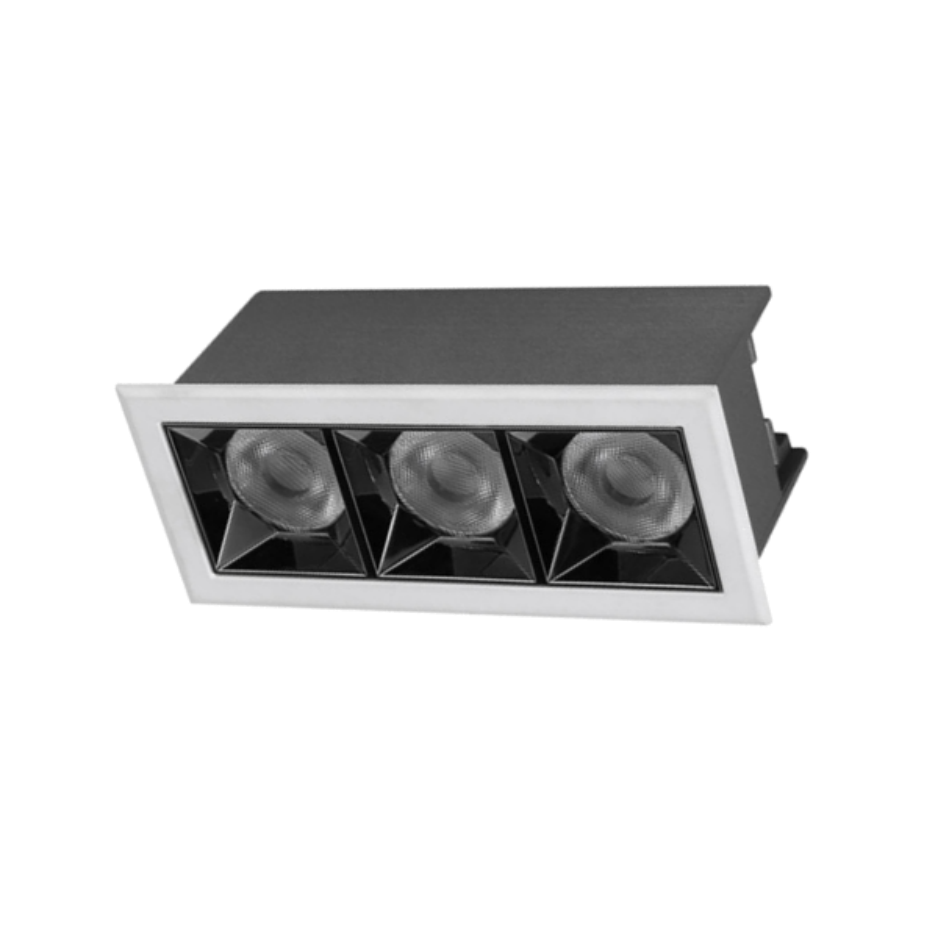

L03228 Spotlight IP20

Die-cast aluminum and thermoplastic

Linear miniaturised recessed luminaire with LED lamps - fixed optics - a few beam angle for option. Despite the ultra compact size of the product. the technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Version with perimeter surface frameless. High CRI. - Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. square spot/wall washer/rectangular spot. MAX.4W/LED

TECHICAL DATA

350-950lm
Remote LED Driver
Aluminium material lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
CREE LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03228

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling wall recessed,

5years warranty

CREE LED3030 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI dimmable

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code

System Power
W

Output Lumen
lm

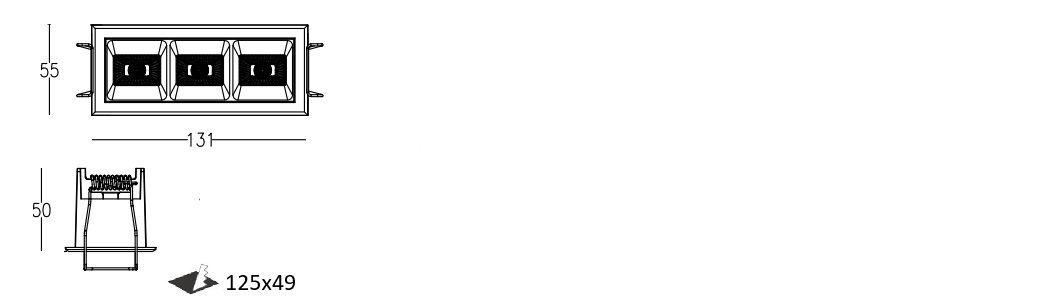

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03228-2	5W	350lm	55x131xH50mm	125x49mm	600mA


L03228-4	12W	950lm	55x131xH50mm	125x49mm	600mA

FEATURES

Linear miniaturised recessed luminaire with LED lamps - fixed optics - a few beam angle for option. Despite the ultra compact size of the product. the technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Version with perimeter surface frameless. High CRI. - Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. square spot/wall washer/rectangular spot. MAX.4W/LED

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
5W 600mA 12W 600mA
