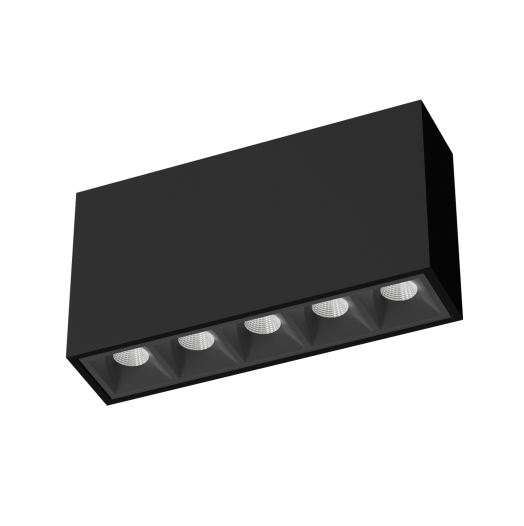

L07146 Spotlight    IP20

Surface mounted spotlight, aluminium die-casting material and powder coating. -BUILT-IN LED driver version. -Flicker-Free

Fixed spot, an ideal accent lighting in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances and flexibility for every project. -Constructed with module design allowing flexibility and variety in use. -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle and an eye-friendly light of the Glare-less downlight.-The effect of visible light and invisible fixture is achieved. UGR<16. 5 LED, osram 2W/LED High Definition optics. -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 700lm
  • Built-in Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • CEILING MOUNTED
  • Famous brand LED chips CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR SURFACE MOUNTED SPOTLIGHT

L07146

IP20

CLASS III

Surface Mounted

400-600mm cable with quick connector.

Ceiling thickness 3-20mm

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L07146-2 5x2W 700lm

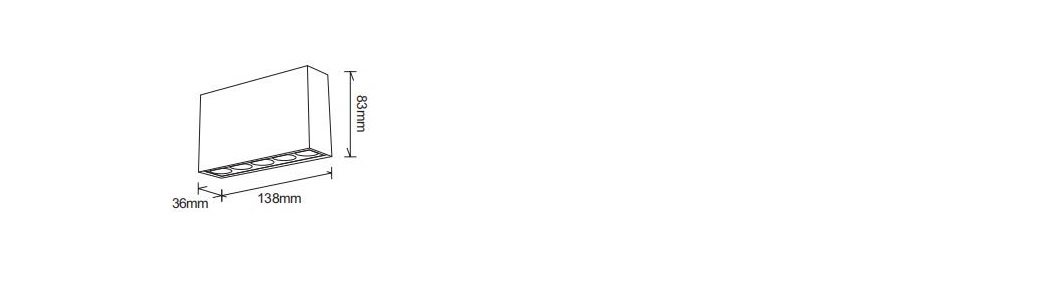

138xW36xH83mm
mm
600mA

FEATURES

Fixed spot, an ideal accent lighting in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances and flexibility for every project. -Constructed with module design allowing flexibility and variety in use. -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle and an eye-friendly light of the Glare-less downlight.-The effect of visible light and invisible fixture is achieved. UGR<16. 5 LED, osram 2W/LED High Definition optics. -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Built-in Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
