Ø80 I Ø110

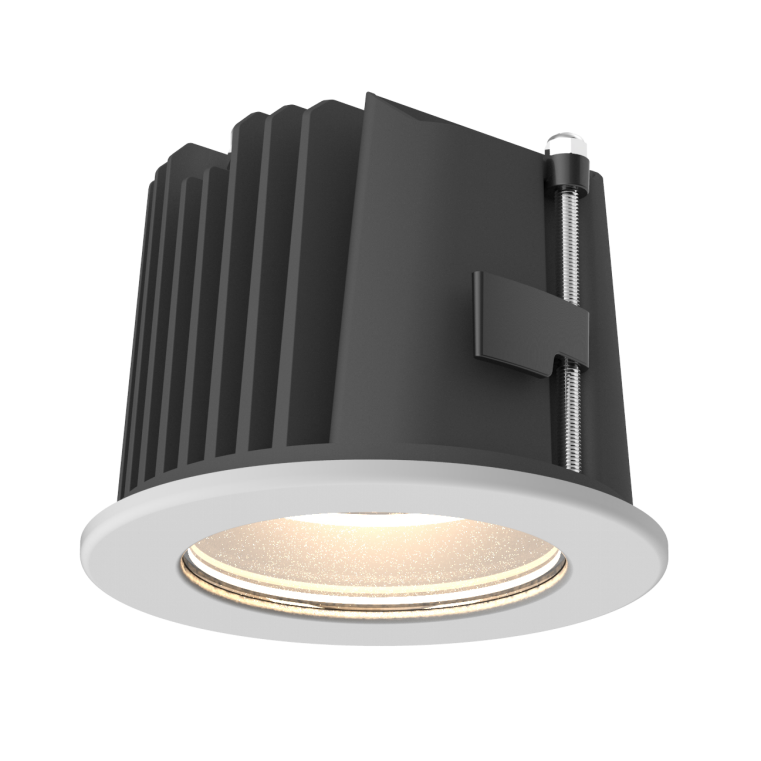

L03243 Spotlight    IP65

Aluminium die casting heat-sink, powder coating. Remote LED driver version.

Fixing spotlight , recessed light source. high efficiency of the LED module and reflector, it meets the needs of your residential and commercial projects. protection type IP65. the housing with a separate IP RATED control gear unit. It means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. The standard product comes in RAL 9005 Black I RAL 9016 White. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 1300-3600lm

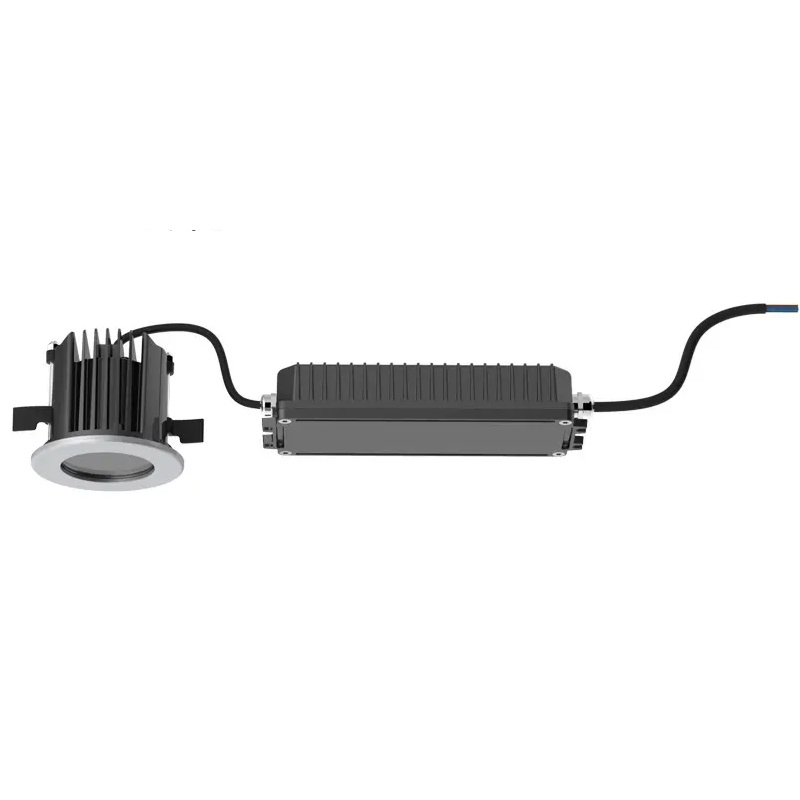

  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03243

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

UNIFORM DISTRIBUTION I IP65

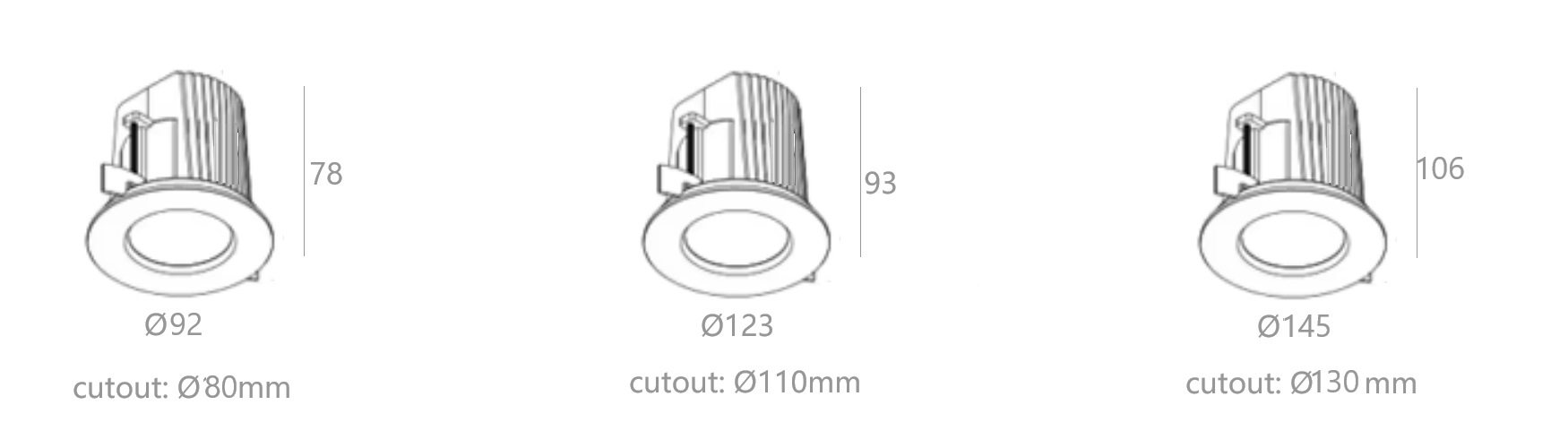

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03243-15 15W 1300lm
92xH78mm
80mm		 350mA
L03243-25 25W 2250lm
123xH93mm
110mm		 650mA
L03243-40 40W 3600lm
145xH106mm
130mm		 1000mA

FEATURES

Fixing spotlight , recessed light source. high efficiency of the LED module and reflector, it meets the needs of your residential and commercial projects. protection type IP65. the housing with a separate IP RATED control gear unit. It means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. The standard product comes in RAL 9005 Black I RAL 9016 White. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
25W   650mA
40W   1000mA
