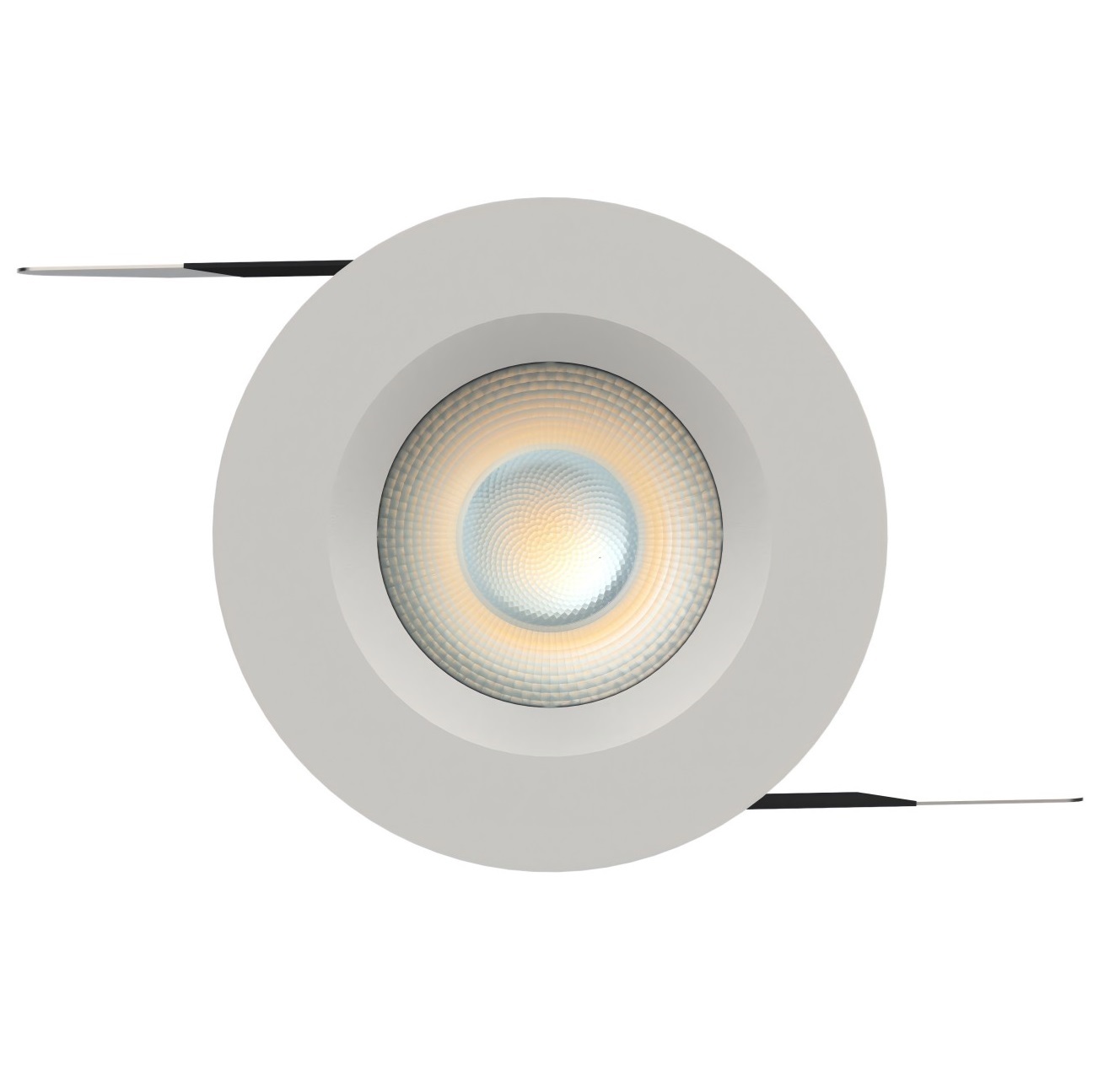

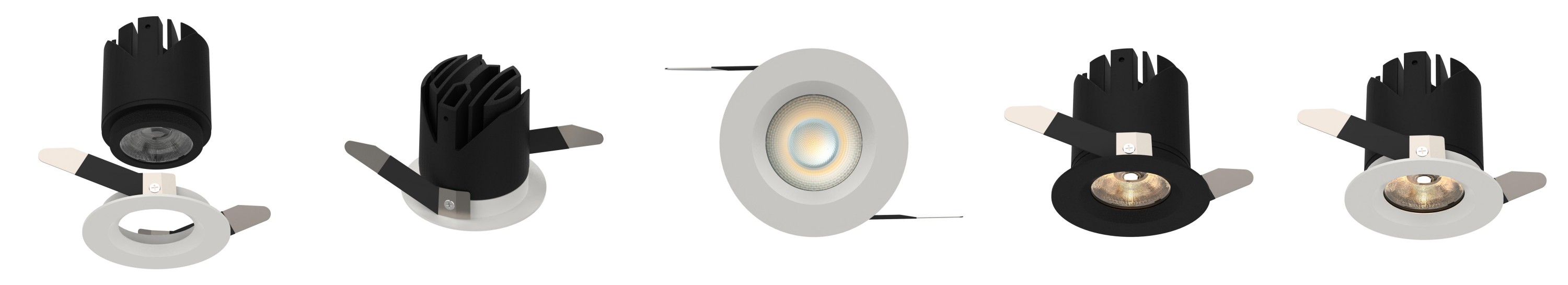

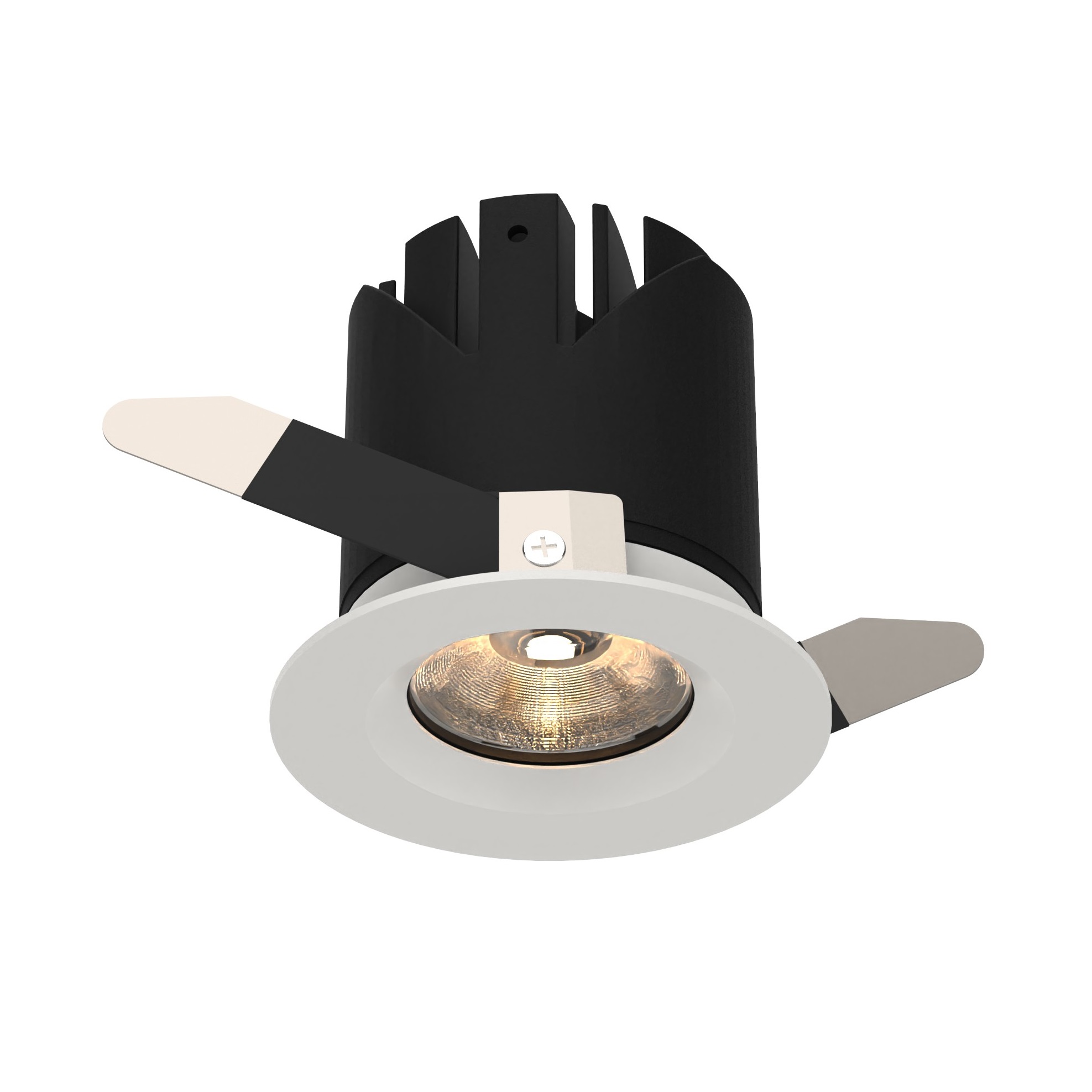

L03242 Spotlight IP54

Aluminium die casting heat-sink, powder coating. Remote LED driver version.

Fixed spotlight , recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, it meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High-quality mixing effect achieved. Dimming from 0~100%, down to 0.01%. High Definition optical lenses in thermoplastic material Ø45mm. Specialized optics and optical filters can be ordered. The standard product comes in RAL 9005 Black I RAL 9016 White. Customized color finishing, power changes are possible depending on the request and the quantity. IP54 It means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

TECHICAL DATA

650-1400lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03242

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

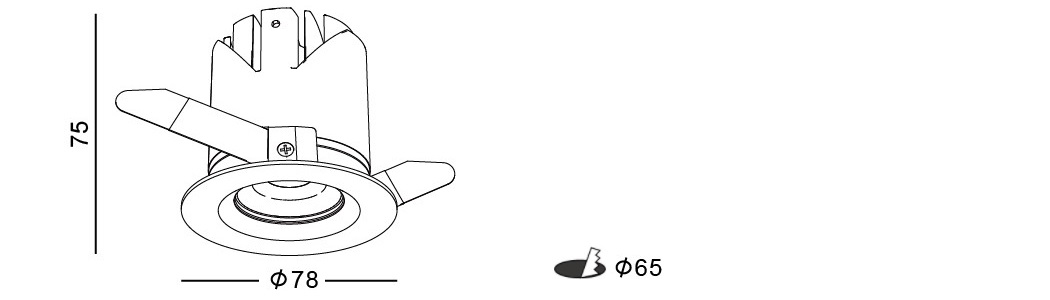

Ø65mm

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

UNIFORM DISTRIBUTION I HIGH EFFICIENCY

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03242-7	7W	650lm	78xH75mm	65mm	200mA


L03242-12	12W	1100lm	78xH75mm	65mm	300mA


L03242-15	15W	1400lm	78xH75mm	65mm	350mA

FEATURES

Fixed spotlight , recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, it meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High-quality mixing effect achieved. Dimming from 0~100%, down to 0.01%. High Definition optical lenses in thermoplastic material Ø45mm. Specialized optics and optical filters can be ordered. The standard product comes in RAL 9005 Black I RAL 9016 White. Customized color finishing, power changes are possible depending on the request and the quantity. IP54 It means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
7W 200mA 12W 300mA 15W 350mA

Data Sheet

Download

Installation
