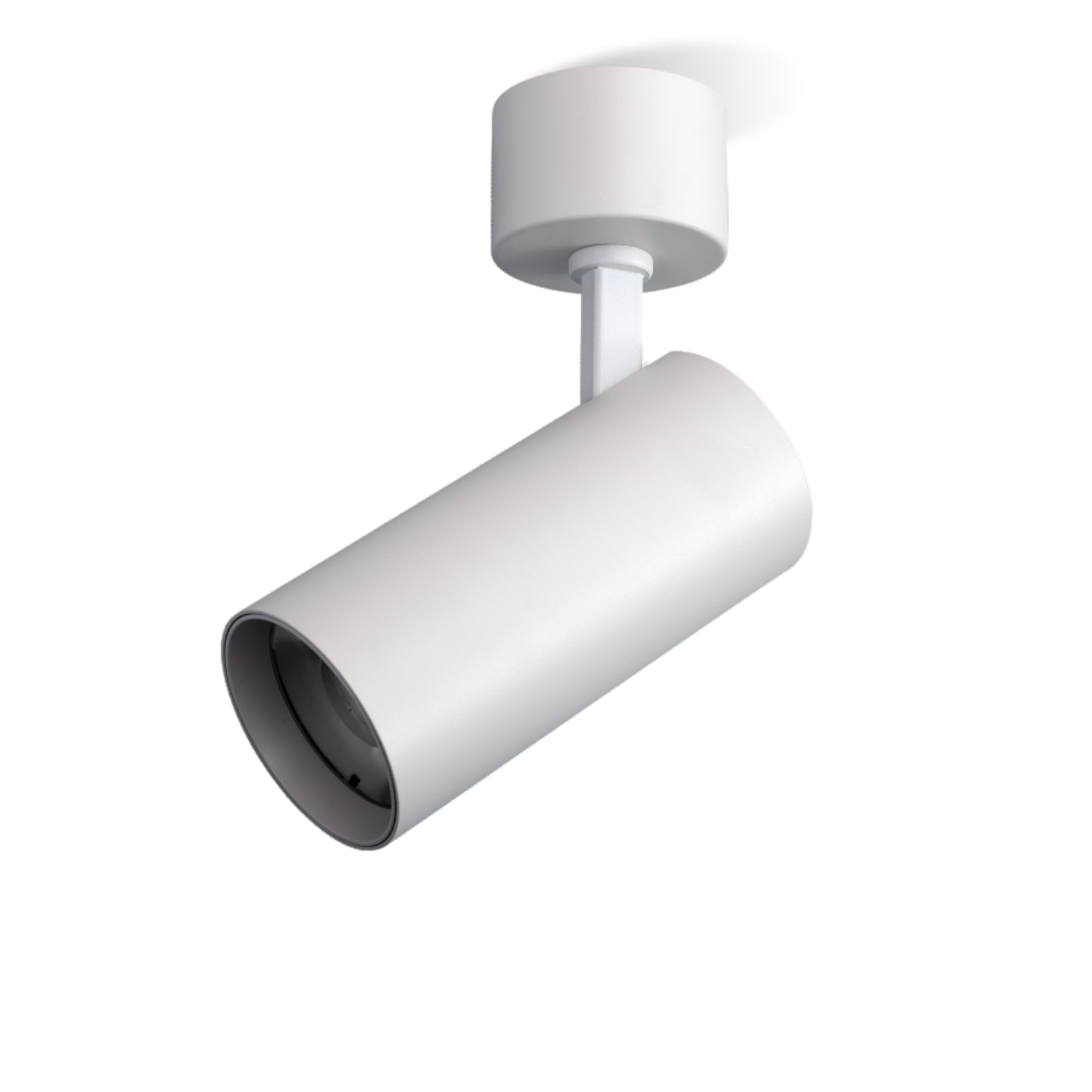

L03254 Spotlight    IP20

Aluminium material and powder coating. - lens version. -Flicker-Free-

The spotlight achieved 90°adjustable 355°rotation, The high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. - The surface mounted luminaire with a decorative metal baffle. The new lens optic creates homogeneous lighting Uniform distribution. An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of body and baffle or length of tube are possible depending on the request and the quantity. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 3600-4000lm
  • Built in LED driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming
  • Surface Mounted.
  • Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L03254

IP20

CLASS III

Surface Mounted

Aluminium lighting fixture, powder coated.

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM CREE COB LED

Triac I 0/1-10V I DALI dimmable

300-400mm cable with quick connector.

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code System Power
W
Output Lumen
lm

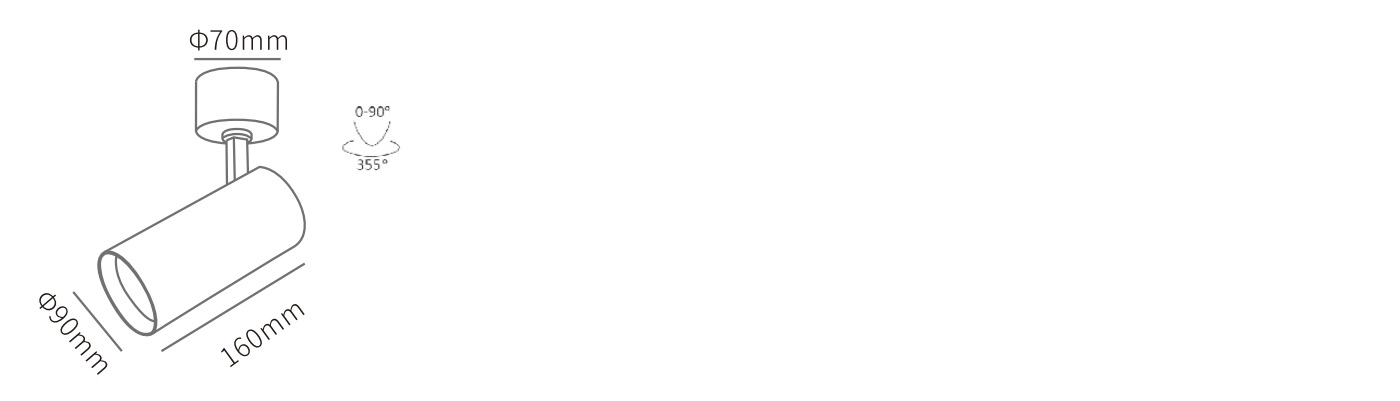

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03254-36 36W 3600lm
90xH235mm
mm
900mA
L03254-40 40W 4000lm
90xH235mm
mm
1000mA

FEATURES

The spotlight achieved 90°adjustable 355°rotation, The high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. - The surface mounted luminaire with a decorative metal baffle. The new lens optic creates homogeneous lighting Uniform distribution. An ideal solution for accent lighting in residential or commercial. The basic model comes in white and black colors. Specialised optical filters can be ordered. Customized the color finishing of body and baffle or length of tube are possible depending on the request and the quantity. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Built in LED driver Accessoires Beam Angle Color Temperature Finishes
36W   900mA
40W   1000mA
