Ø81 I 12W

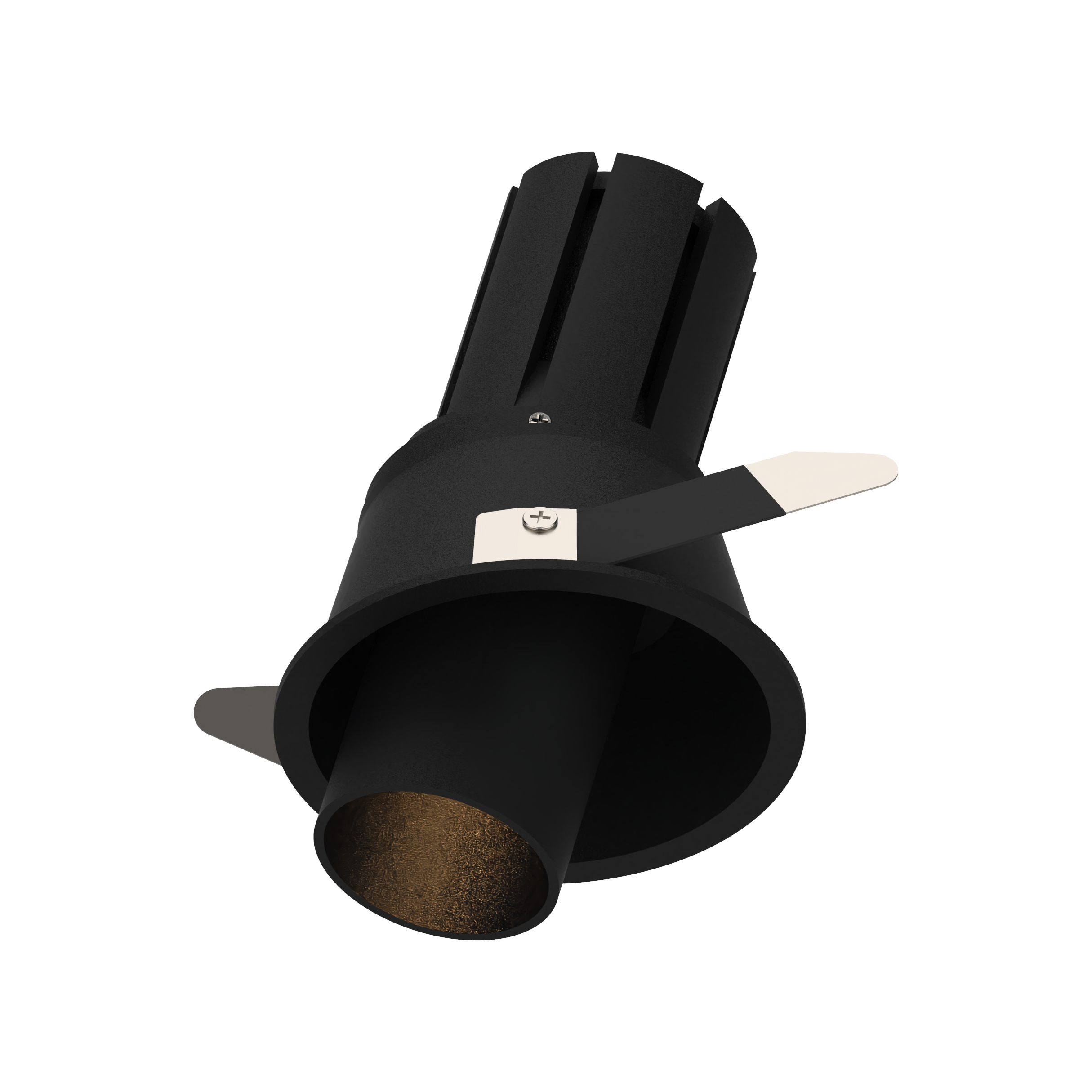

L03245 Spotlight    IP54

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort.

The spotlight comprise a LED light module Ø45 , a metal baffle and a metal mounting frame. 20°adjustable 360°rotation, Its principle is equivalent to modularity and flexibility at its best. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. Easy installations. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. dimmable, dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 620lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03245

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating I Slim trim

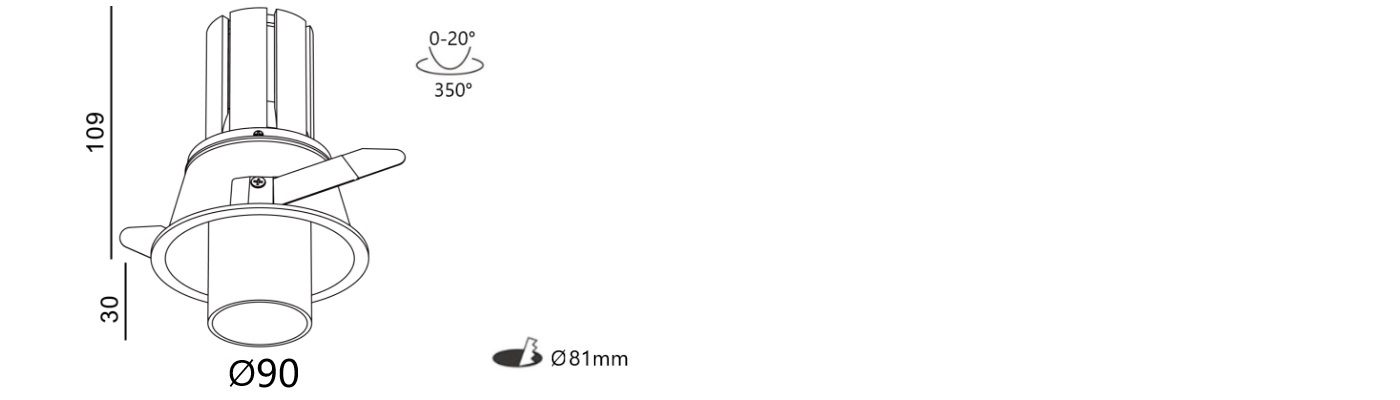

81mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version. PF0.95

Recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

UNIFORM DISTRIBUTION DIRECTIONAL LIGHTING

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03245-12 12W 620lm
90xH110mm
81mm		 300mA

FEATURES

The spotlight comprise a LED light module Ø45 , a metal baffle and a metal mounting frame. 20°adjustable 360°rotation, Its principle is equivalent to modularity and flexibility at its best. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. Easy installations. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Excellent colour rendering , it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. dimmable, dimming from 0~100%, down to 0.01%.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
