Ø56 I 6W I pull-out

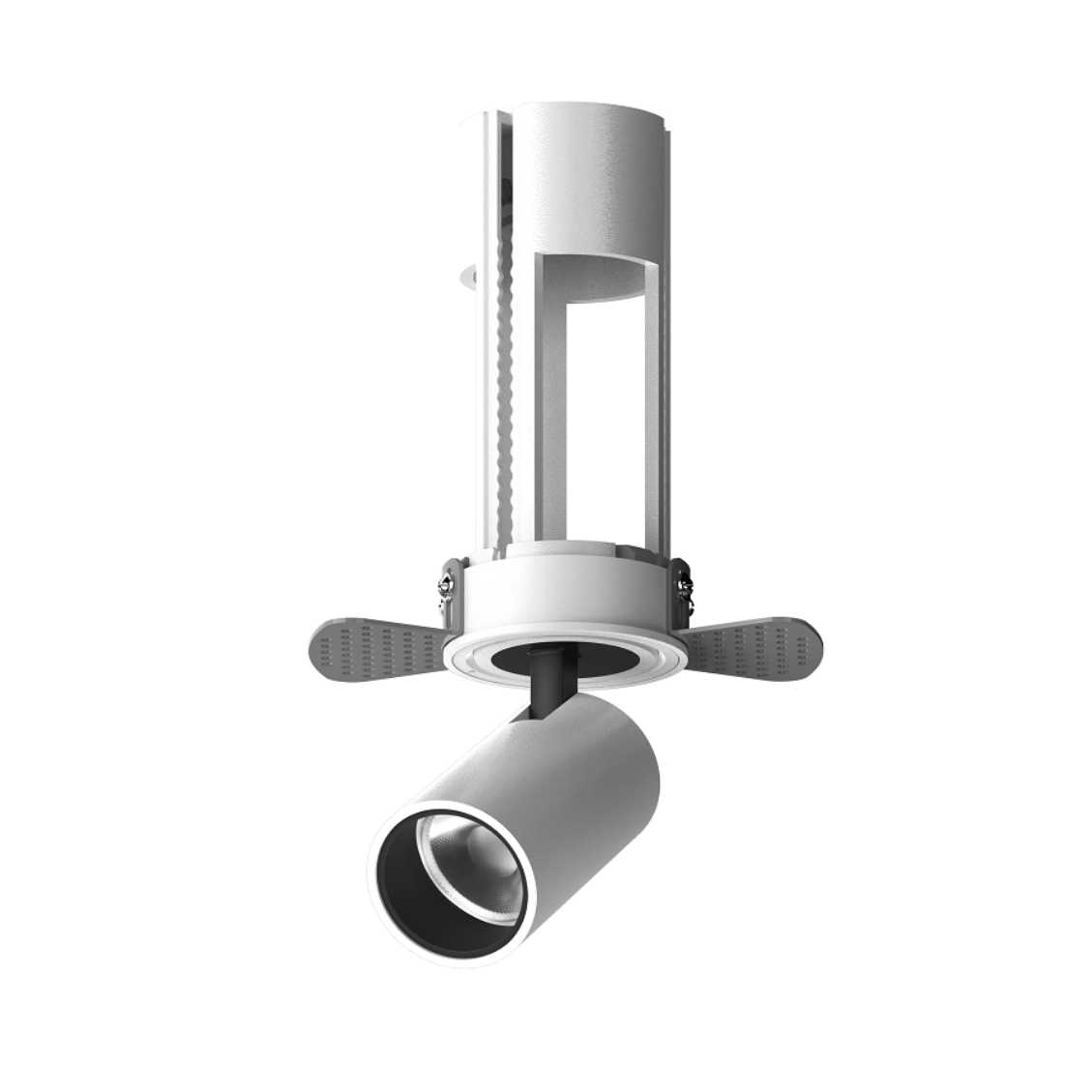

L04230 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

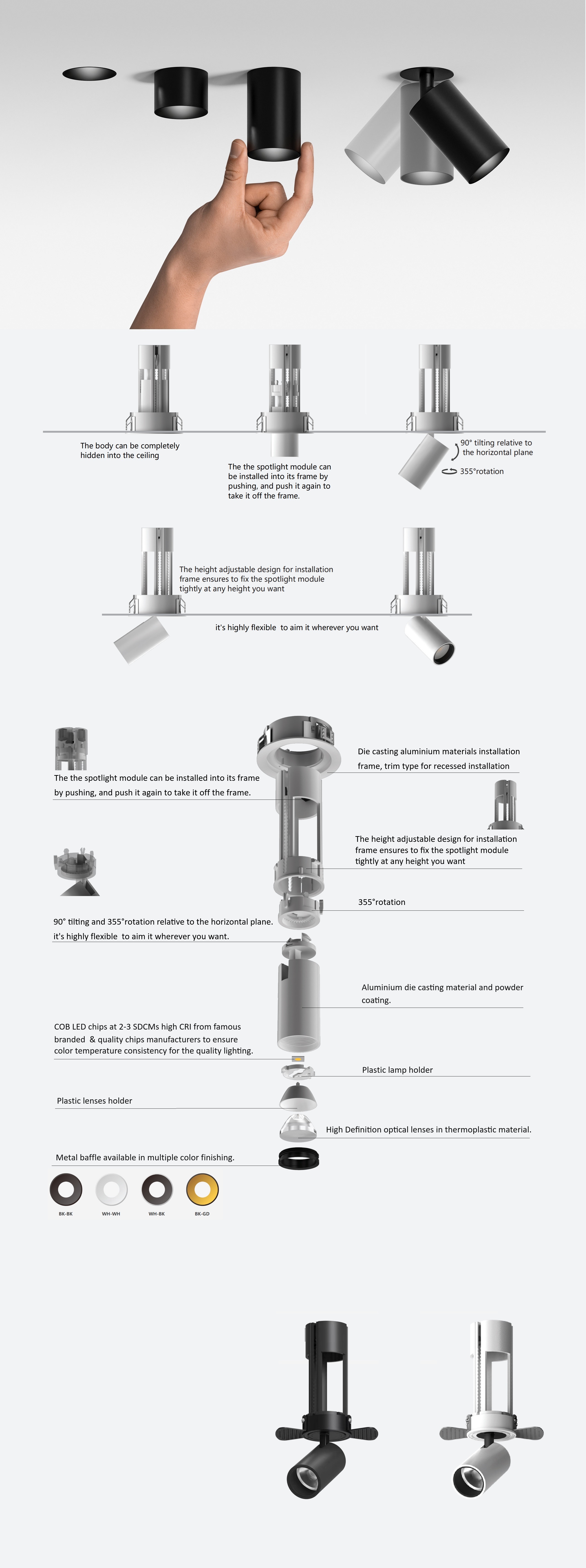

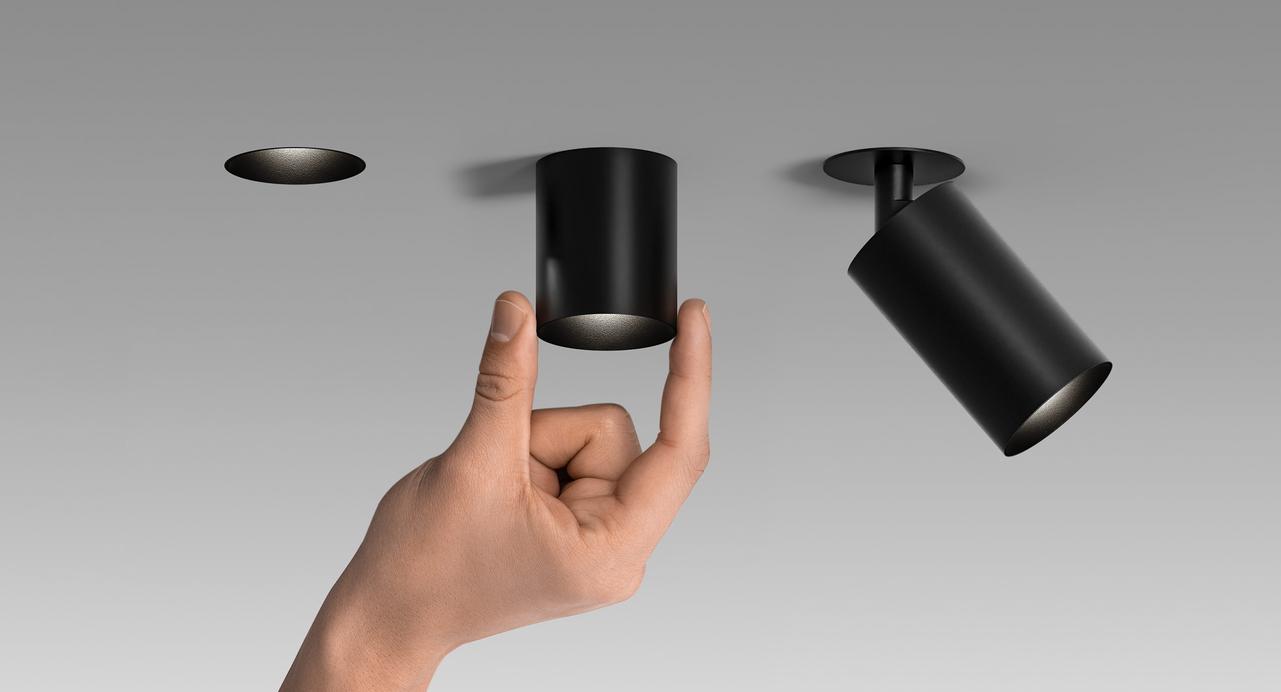

Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , recessed light source. available for different output beams 15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation trimless or with spring, The spotlight is modular design. They comprise a LED light module and a metal+ABS materials mounting frame. A small downlight characterized by innovative and surprising solutions. The the spotlight module can be installed into its frame by pushing, and push it again to take it off the frame. then possibility to take the spotlight out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body can either be completely hidden into the ceiling or fully visible to aim it wherever you want. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

  • 550lm
  • Remote LED Driver
  • 90°adjustable 355°rotation, pull-out
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling Recessed I Trimless
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L04230

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed I Trimless

400-600mm cable with quick connector

COB LED I 3SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version.

90°adjustable 355°rotation I pull-out

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

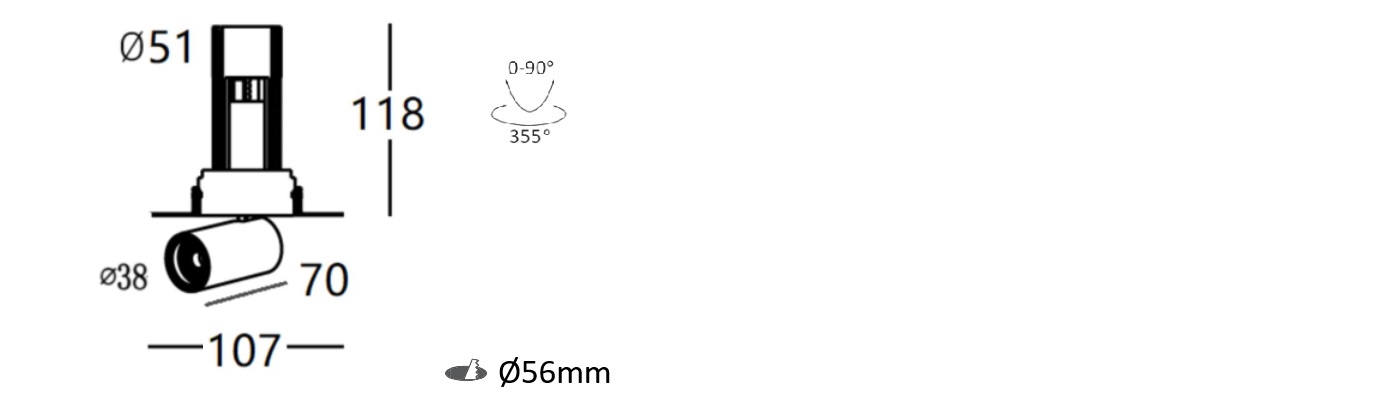

Dimension
mm
Cut Hole
mm
Power Supply
mA
L04230-6 6W 550lm
107xH117mm
56mm
150mA

FEATURES

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out. Double adjustability tube pull-out spotlight , uniform distribution . Visual comfort low glare optic , recessed light source. available for different output beams 15/24/36/50°. Specialized optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation trimless or with spring, The spotlight is modular design. They comprise a LED light module and a metal+ABS materials mounting frame. A small downlight characterized by innovative and surprising solutions. The the spotlight module can be installed into its frame by pushing, and push it again to take it off the frame. then possibility to take the spotlight out from its frame , the rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body can either be completely hidden into the ceiling or fully visible to aim it wherever you want. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
6W   150mA
