Ø50 Ø75 Ø95 Ø120

L06170 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing spotlight with slim trim, visual comfort low glare optic. Uniform distribution. Metal reflector ，Available for a few different output beams 15/24/36/60°. Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 400-2600lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated. RAL9010
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

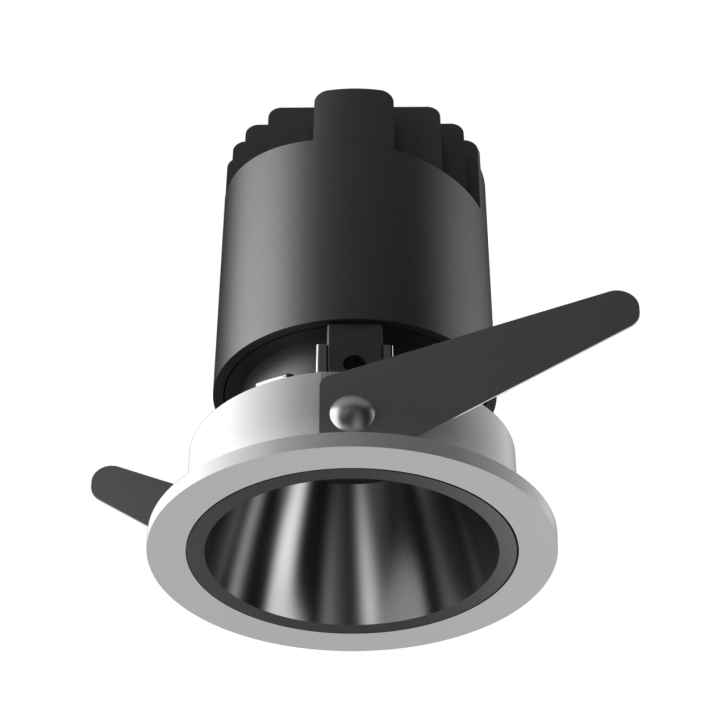

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06170

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

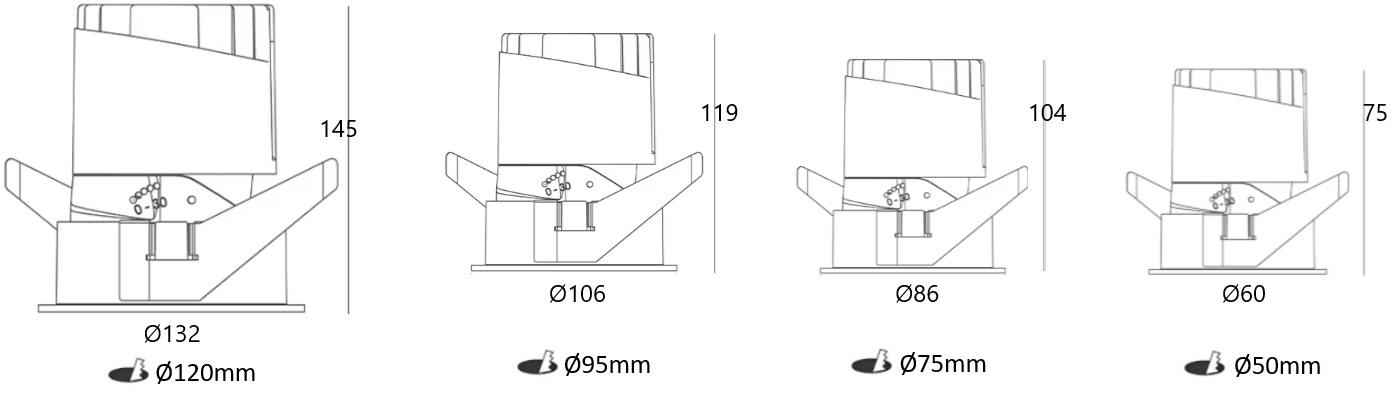

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L06170-6 6W 400lm
60xH75mm
50mm		 150mA
L06170-15 15W 1200lm
86xH104mm
75mm		 350mA
L06170-23 23W 1850lm
106xH119mm
95mm		 550mA
L06170-35 35W 2600lm
132xH145mm
120mm		 750mA

FEATURES

The fixing spotlight with slim trim, visual comfort low glare optic. Uniform distribution. Metal reflector ，Available for a few different output beams 15/24/36/60°. Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
6W   150mA
15W   350mA
23W   550mA
35W   750mA
