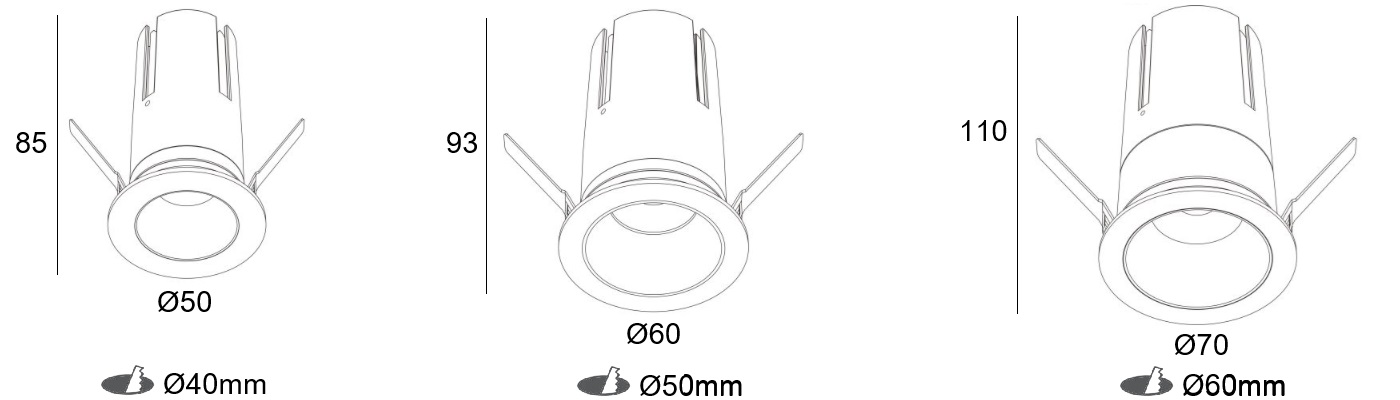

Ø30 I Ø40 I Ø50 I Ø60

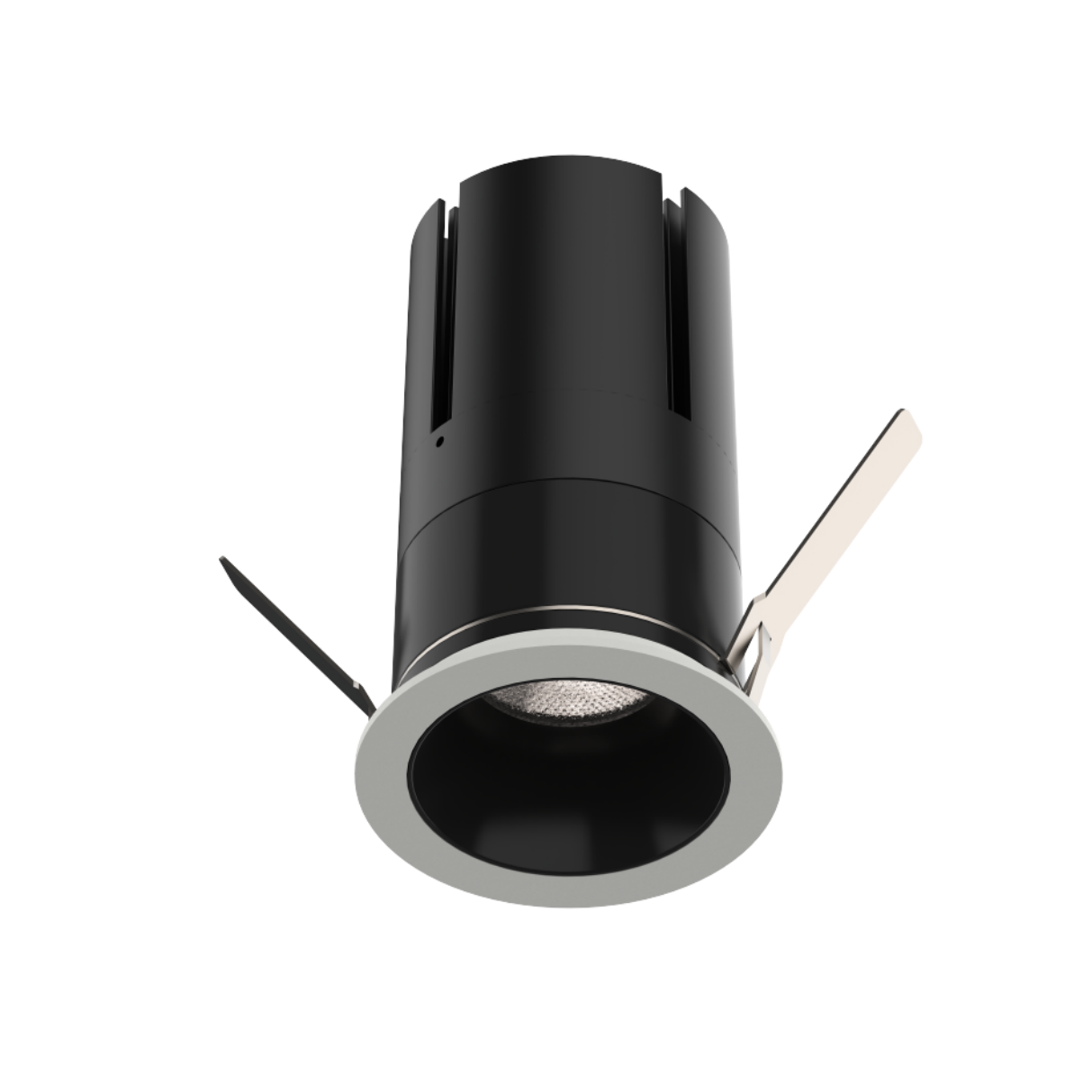

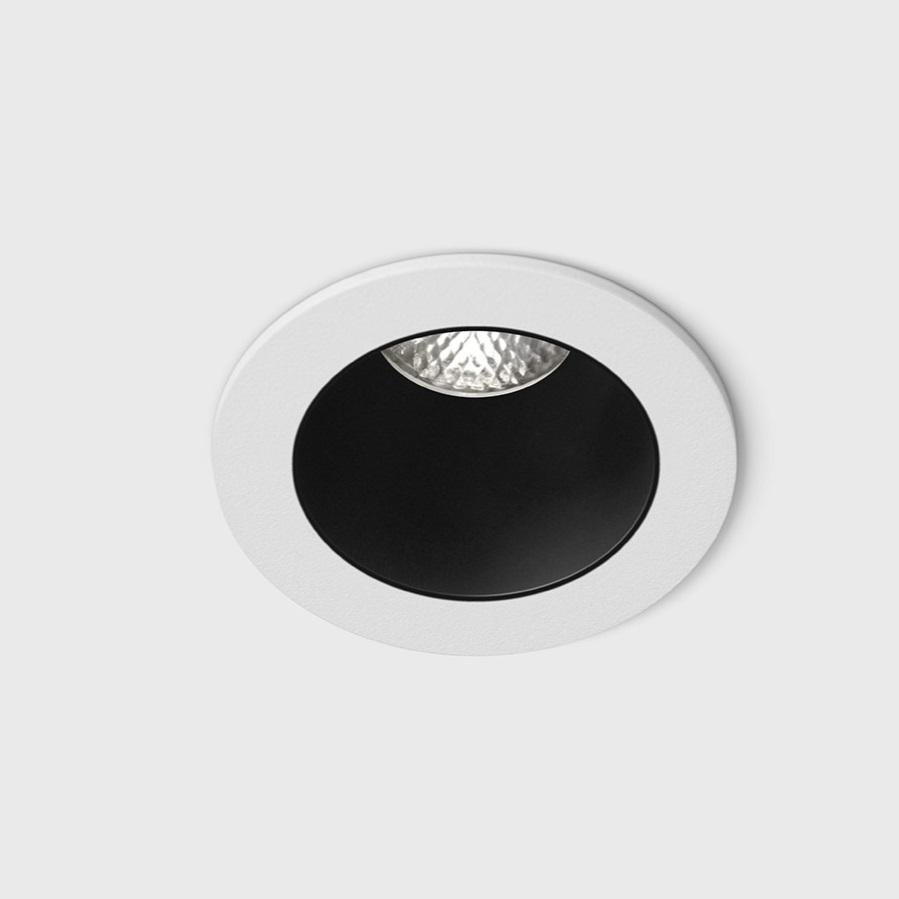

L03617 Spotlight    IP44

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

The fixing spotlight with decorative metal baffle and trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 410-950lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03617

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03617-7 7W 410lm
40xH76mm
30mm		 200mA
L03617-10 10W 650lm
50xH85mm
40mm		 300mA
L03617-12 12W 700lm
60xH93mm
50mm		 350mA
L03617-15 15W 950lm
70xH110mm
60mm		 400mA

FEATURES

Famous brand COB LED Chips I 3SDCM I High CRI I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation I Deeply recessed light source. I High Definition optical lenses in thermoplastic material.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   200mA
10W   300mA
12W   350mA
15W   400mA
