triple trimless

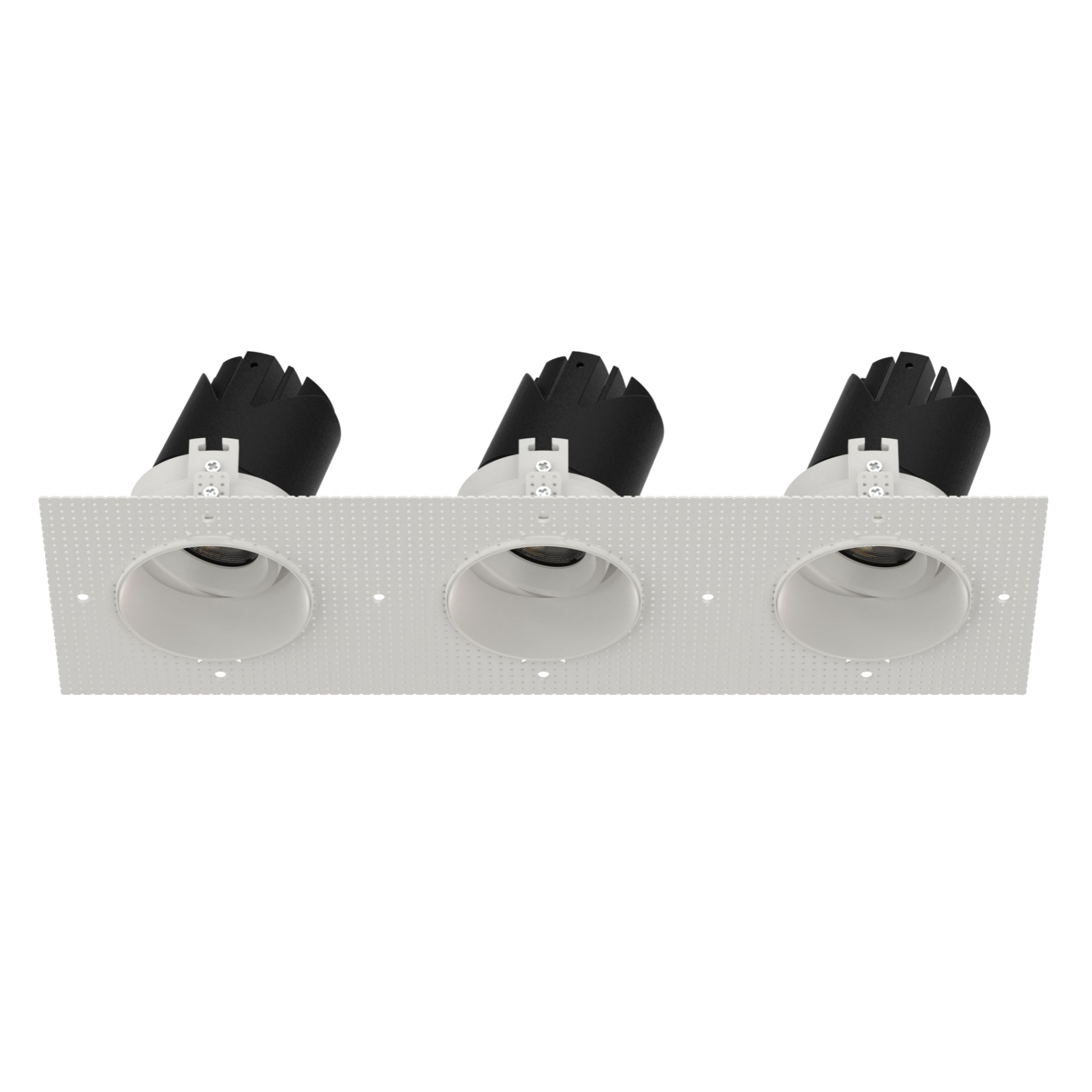

L03216 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort.

Adjustable triple spotlight, LED modular design, comprise a LED light module, a metal baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. it's easy to take the spotlight out from it's frame, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 2100-3600lm
  • Remote LED Driver
  • Aluminium die casting material and powder coating.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. Trimless
  • CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03216

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling recessed, Triple Trimless

5years warranty

CREE COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version. PF0.95

Recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI Tunable white dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03216-7 3x7W 2100lm

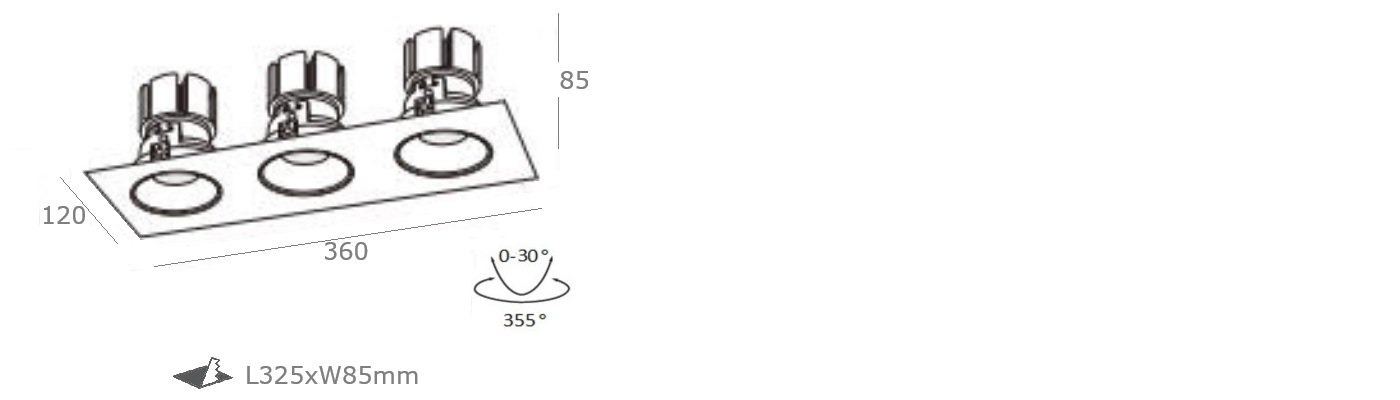

L360xW120xH85mm
325x85mm		 150mA
L03216-12 3x12W 3600lm
L360xW120xH95mm
325x85mm		 250mA

FEATURES

Adjustable triple spotlight, LED modular design, comprise a LED light module, a metal baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. it's easy to take the spotlight out from it's frame, Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   250mA
