2x12W I 口155x80

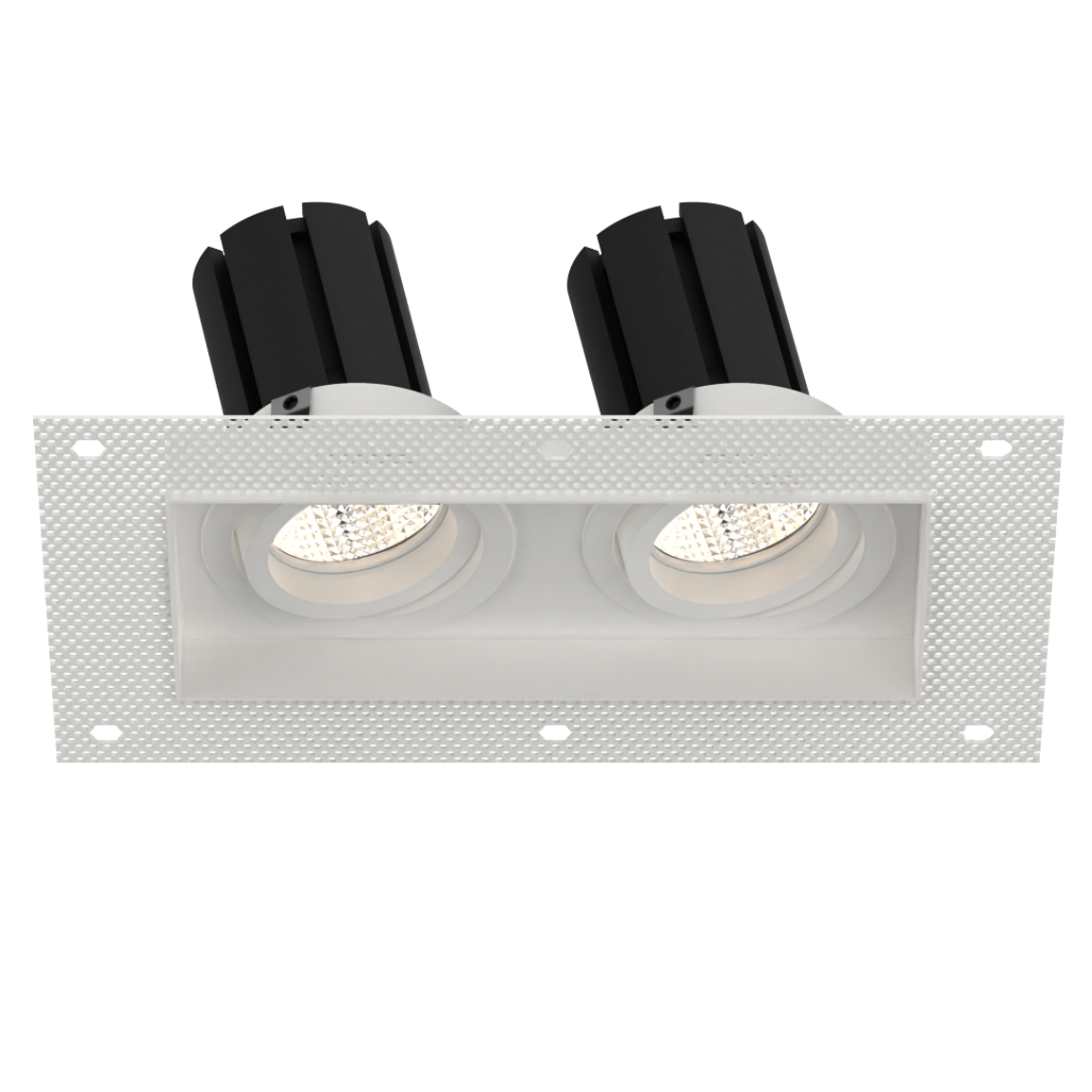

L03741 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. visual comfort.

Trimless double spot, Luminaires in this line have modular design. They comprise a LED light module, a metal baffle and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 45°. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, IP54 means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. ( IP65- 2x13W - 215x127xH105mm)

TECHICAL DATA

  • 1412-2424lm
  • Remote LED Driver
  • Aluminium die casting material , powder coated.
  • 300-400mm cable with quick connector.
  • DALI Dimming from 0~100%, down to 0.01%.
  • Ceiling, wall recessed. I Double Trimless
  • Famous brand LED chips CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03741

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting and powder coating.

Ceiling recessed I Double Trimless

5years Warranty

CREE COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Deeply recessed light source. Visual comfort.

DALI Dimming from 0~100%, down to 0.01%.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W
Output Lumen
lm

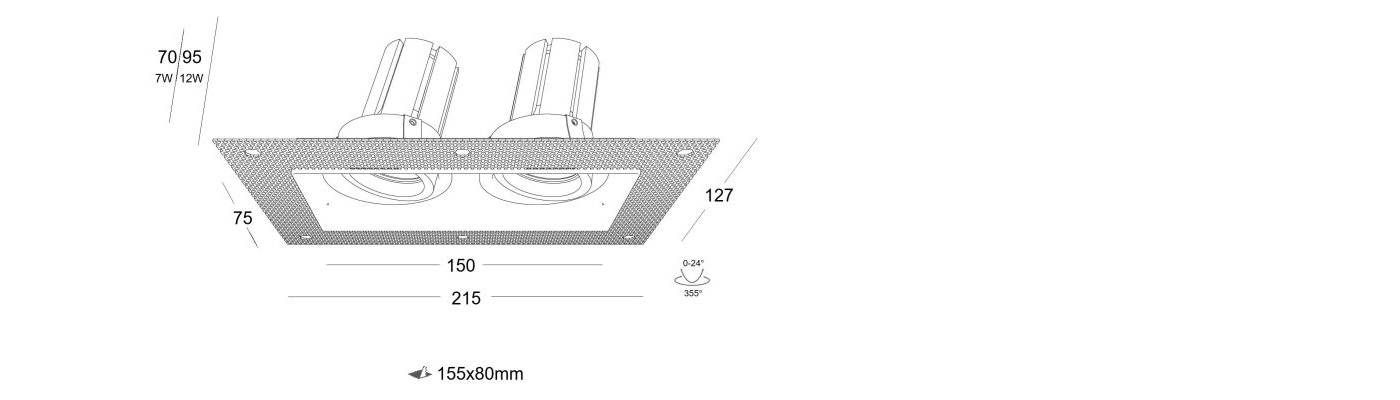

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03741-7 2x7W 1412lm
215x127xH75mm
155x80mm
150mA
L03741-12 2x12W 2424lm
215x127xH95mm
155x80mm
300mA

FEATURES

Luminaires in this line have modular design. They comprise a LED light module, a metal baffle and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 45°. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, IP54 means that they can be used even in bathroom or other damp indoor locations. 7W-CREE CMB1306 I 12W-CREE CMB1510

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   300mA
