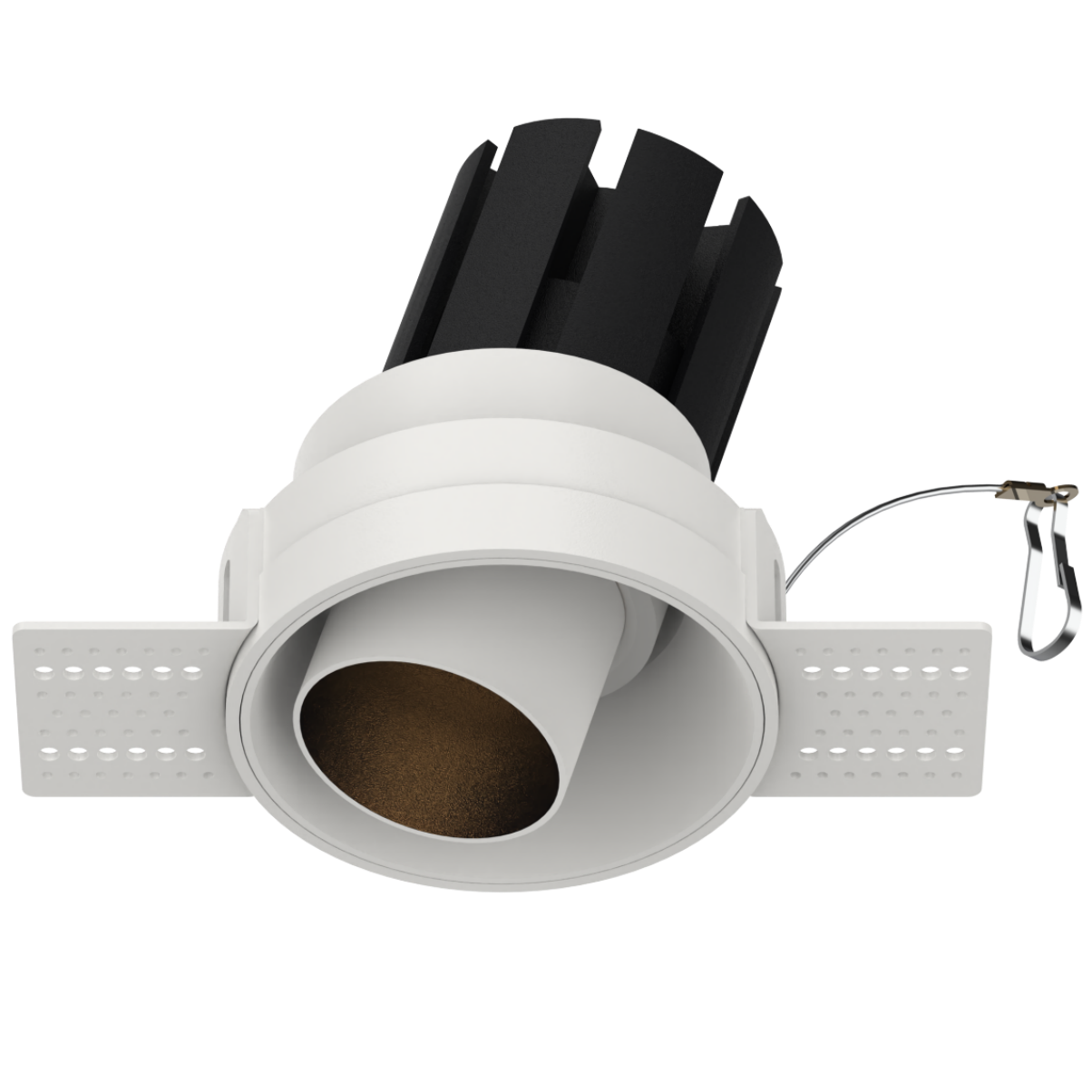

L03248 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. An ideal solution for accent lighting.

Round-shaped in cast aluminum with mounting frame for trimless installation on ceiling. Luminaires in this line have modular design. They comprise a LED light module, a metal baffle, snoot and a metal mounting frame. I It facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the LED light module in further finishing of the room, as the modules can be fixed into the installation frame afterwards by snap-in catch action. I Luminaire body inclusive of snoot-in aluminum, easy relamping via removable front ring by snap-in catch action. I The spotlight is vertical tiltable ±30° and 355° rotation. Its principle is equivalent to modularity and flexibility at its best and easy to handle, the light is emitted exactly where you want it. I The standard product comes in RAL9005 Black color or RAL9016 White color. On the request it can be offered in any RAL color, matching the specific look and feel of your design. I IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.  One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Excellent colour rendering, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. An ideal solution for accent lighting. Dimming from 0~100%, down to 0.01%.

TECHICAL DATA

  • 700lm
  • Remote LED Driver
  • Aluminium die casting material , powder coated.
  • 300-400mm cable with quick connector.
  • DALI Dimming from 0~100%, down to 0.01%.
  • Ceiling, wall recessed. I Trimless
  • Famous brand LED chips CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03248

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting and powder coating.

Ceiling recessed, Plaster-in. Trimless

5years Warranty

Famous brand LED chips CRI90+ 3SDCM

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source I Visual comfort I Snoot

DALI Dimming from 0~100%, down to 0.01%.

AN IDEAL SOLUTION FOR ACCENT LIGHTING

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03248-12 12W 700lm

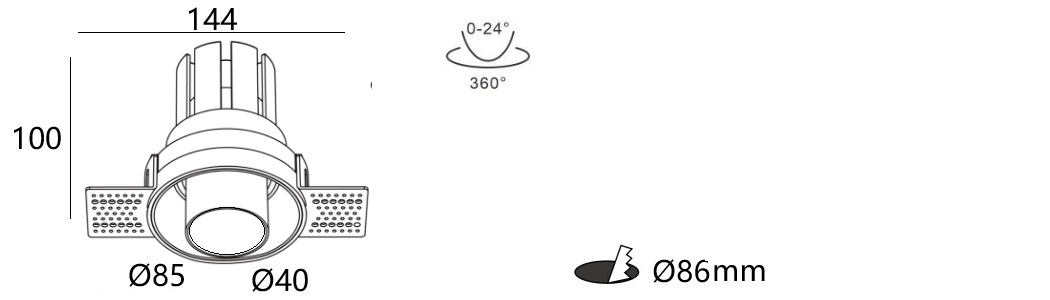

144xH100mm
86mm
300mA

FEATURES

Round-shaped in cast aluminum with mounting frame for trimless installation on ceiling. Luminaires in this line have modular design. They comprise a LED light module, a metal baffle, snoot and a metal mounting frame. I It facilitates the installation by giving the opportunity to the installer to place the metal frame in advance. No need to worry for the LED light module in further finishing of the room, as the modules can be fixed into the installation frame afterwards by snap-in catch action. I Luminaire body inclusive of snoot-in aluminum, easy relamping via removable front ring by snap-in catch action. I The spotlight is vertical tiltable ±30° and 355° rotation. Its principle is equivalent to modularity and flexibility at its best and easy to handle, the light is emitted exactly where you want it. I The standard product comes in RAL9005 Black color or RAL9016 White color. On the request it can be offered in any RAL color, matching the specific look and feel of your design. I IP54 rating on same one luminaries means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.  One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Excellent colour rendering, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. An ideal solution for accent lighting. Dimming from 0~100%, down to 0.01%.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
