Ø115 I Ø75 I DALI

L08115 Spotlight    IP20

Aluminium die-casting material and powder coated. easy installation. -Flicker-Free- High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered.-

The spot was designed for real high quality lighting, High CRl, An ideal lighting solution in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances for every projec,ABS baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle of 60°. High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered. Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 800-2450lm
  • Built-in Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V dimming
  • Ceiling Suspended I Ceiling Mounted
  • Famous brand LED chips

Product is Europe Standard & CE Certificate.

INTERIOR LED SUSPENDED SPOTLIGHT

L08115

IP20

CLASS III

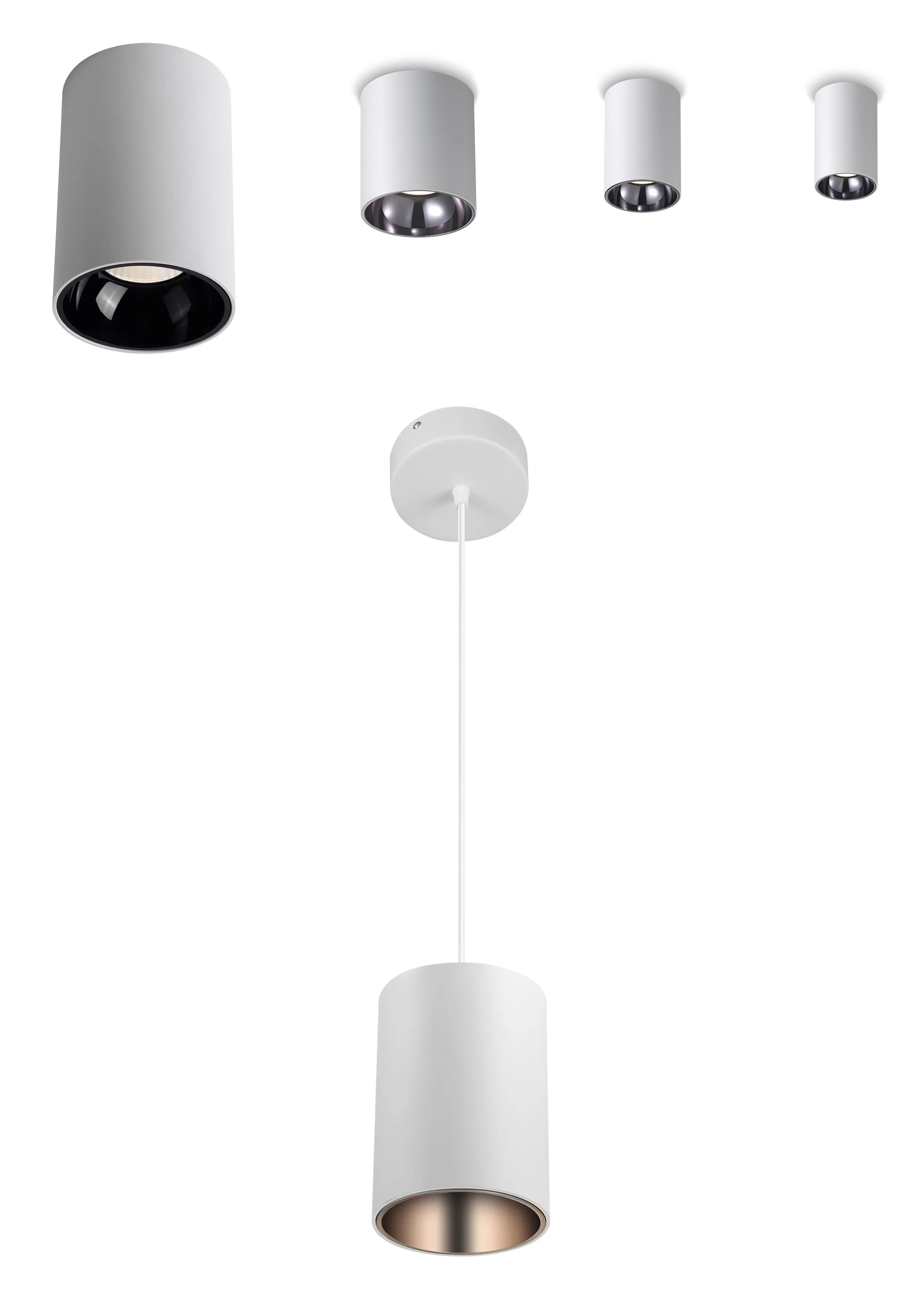

Ceiling Suspended I Ceiling Mounted

Standard length of cable 1200mm with quick connector.

ECO Energy Saving Aluminium materials

Eyes friendly CE certificate RoHS standard

Famous brand LED Chips

Triac I 0/1-10V I DALI dimmable

Customized color finishing.

Warranty 5 Years

High Definition optical lenses Uniform distribution

Code System Power
W
Output Lumen
lm

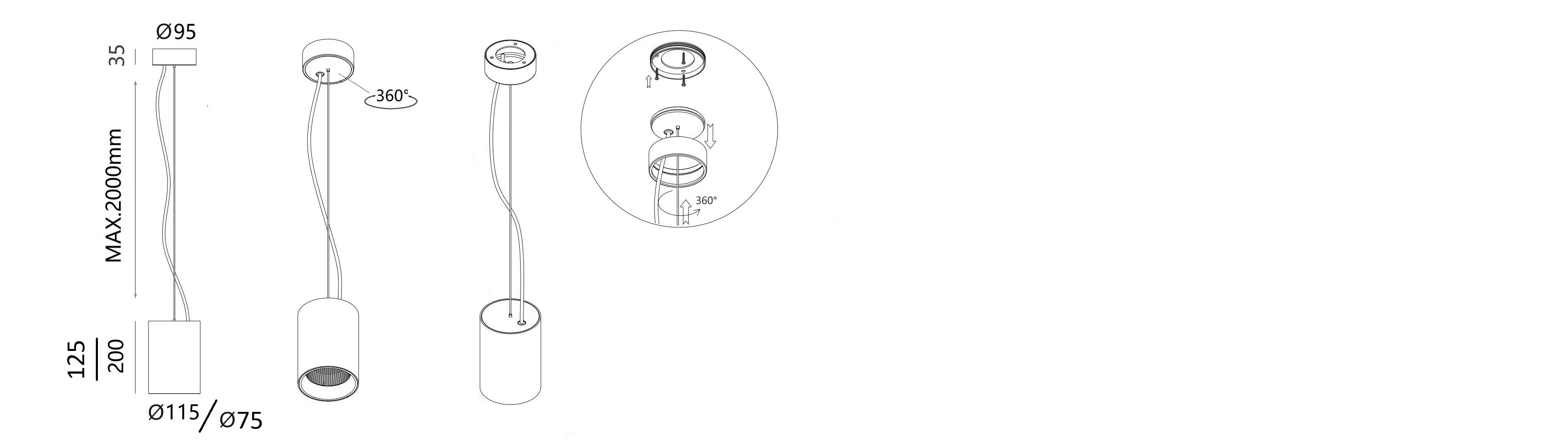

Dimension
mm
Cut Hole
mm
Power Supply
mA
L08115-10 10W 800lm
75xH125mm
mm
300mA
L08115-20 20W 1650lm
95xH150mm
mm
500mA
L08115-25 25W 2000lm
115xH200mm
mm
650mA
L08115-30 30W 2450lm
115xH216mm
mm
750mA

FEATURES

The spot was designed for real high quality lighting, High CRl, An ideal lighting solution in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances for every projec,ABS baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle of 60°. High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered. Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Built-in Driver Accessoires Beam Angle Color Temperature Finishes
10W   300mA
20W   500mA
25W   650mA
30W   750mA
