L08301 Decorative lighting IP44

The luminaire with a decorative diffuser. The standard height of the diffuser is 27 mm. Models are available in different sizes and different length,

Multiple installations, surface mounted I recessed I plaster-in I pendant. Height of tube can be customized. The is modular, customized color finishing is acceptable. The standard height of the diffuser is 27mm. Built-in Driver for tube Ø40, Remote Driver for tube Ø30mm.

TECHICAL DATA

290-450lm
Built-in Driver Ø40, Remote Driver Ø30
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<16
DALI I Triac I 0/1-10V dimming
Multiple Installations
Famous brand LED chips

Product is Europe Standard & CE Certificate.

INTERIOR LED DECORATIVE LIGHTING

L08301

IP44

CLASS III

Multiple Installation

Standard length of cable 2000mm with quick connector.

ECO Energy Saving Aluminium materials

Eyes friendly CE certificate RoHS standard

Famous branded LED Chips

Triac I 0/1-10V I DALI dimmable

Height- adjustable cable, customized color finishing.

Warranty 5 Years

Multiple installations to meet multiple lighting requirements

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

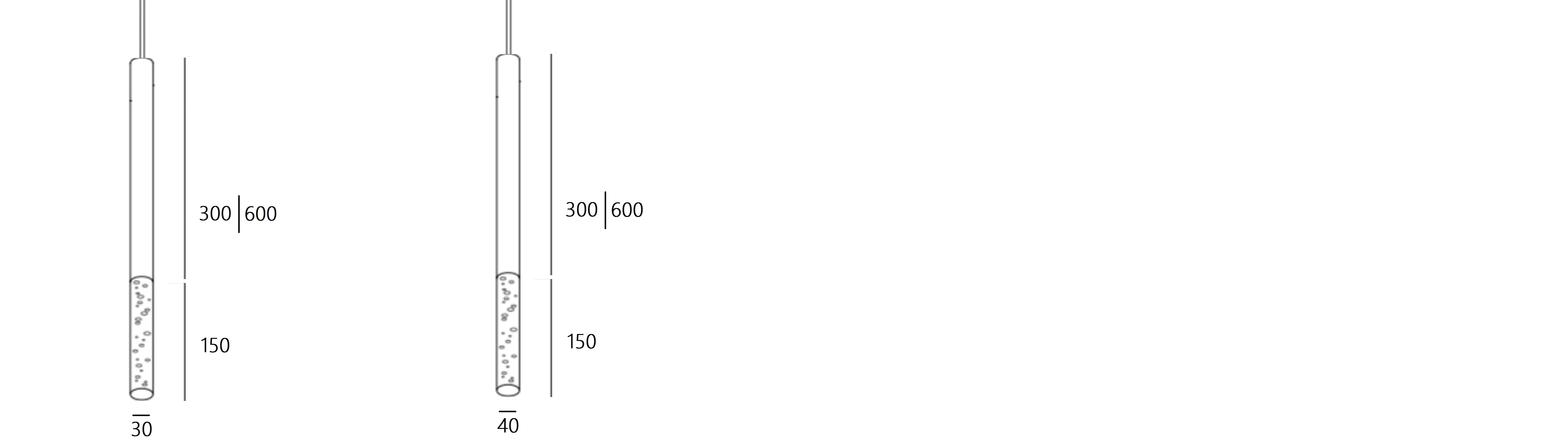

L08301-4	4W	290lm	30xH600mm	mm	125mA


L08301-7	7W	450lm	40xH600mm	mm	150mA

FEATURES

The luminaire with a decorative diffuser. The standard height of the diffuser is 27 mm. Models are available in different sizes and different length, Multiple installations, surface mounted I recessed I plaster-in I pendant. Height of tube can be customized. The is modular, customized color finishing is acceptable. The standard height of the diffuser is 27mm. Built-in Driver for tube Ø40, Remote Driver for tube Ø30mm.

Built-in Driver Ø40, Remote Driver Ø30	Accessoires	Beam Angle	Color Temperature	Finishes
4W 125mA 7W 150mA
