Ø60

L08023 Spotlight    IP20

Aluminium extrusion and powder coating I electroplating or paint housing

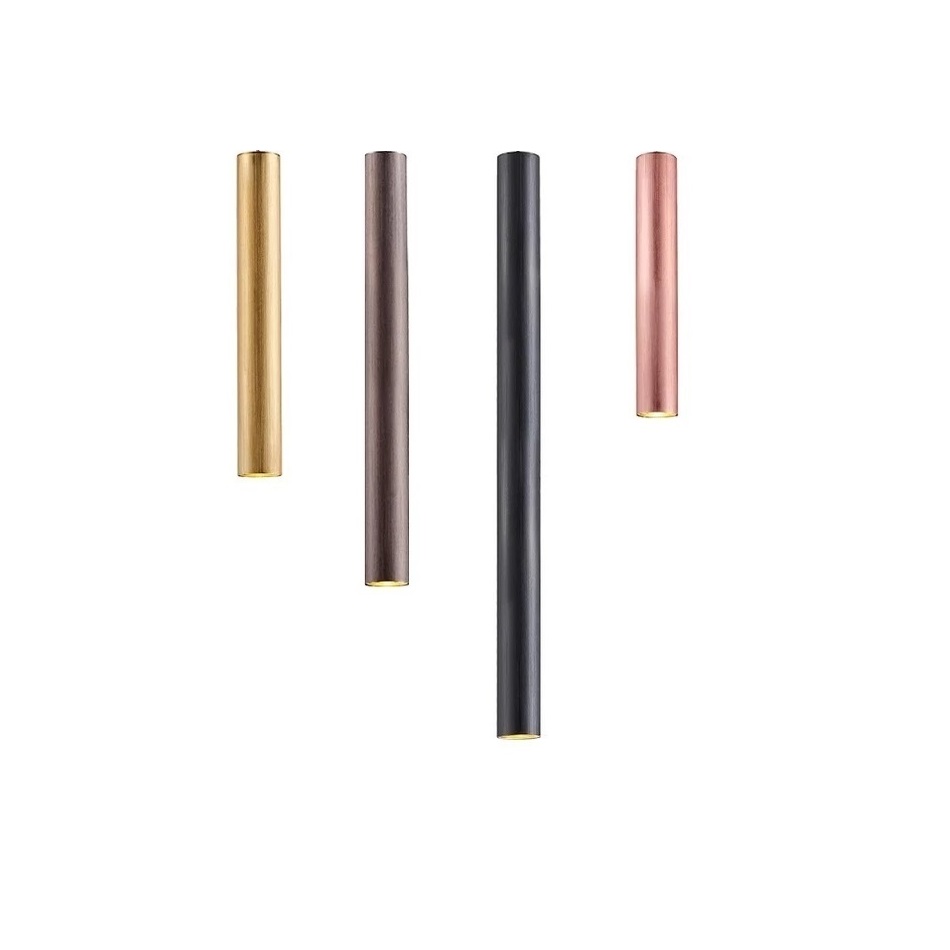

Surface mounted spotlight with Ø60mm diameter with an elongated cylindrical housing. Three installation options: trimless, with a decorative trim and surfaced. Aluminium extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. White OR Black color finishing as standard. -- Power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 450-900lm
  • Built-in LED Driver
  • Ø60mm diameter
  • Flicker Free CRI90 3SDCM
  • DALI I Triac I 0/1-10V dimming
  • Surface Mounted I Multiple installations.
  • Famous brand LED chips

Product is Europe Standard & CE Certificate.

INTERIOR LED CEILING MOUNTED SPOTLIGHT

L08023

IP20

CLASS III

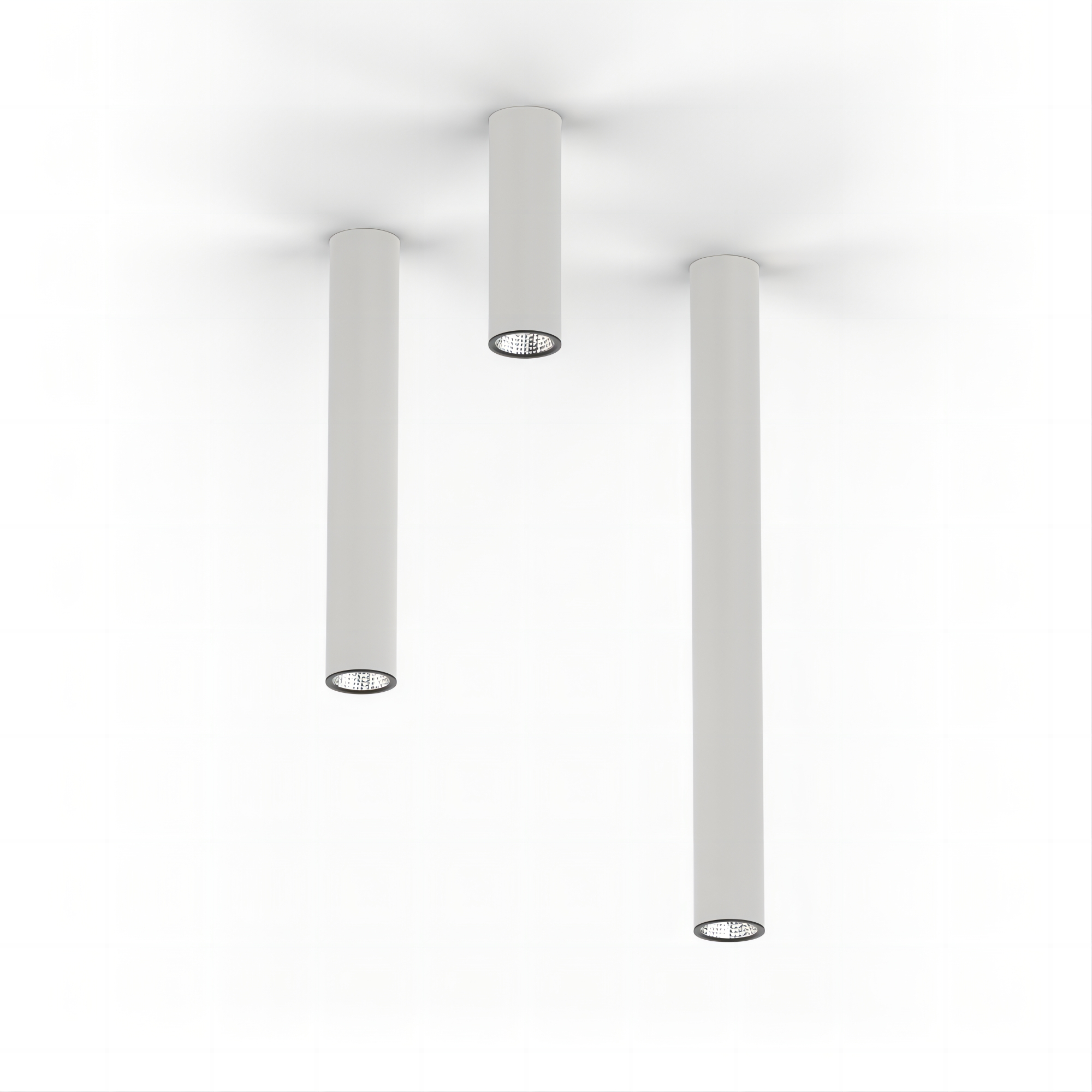

Ceiling Mounted Installation

Aluminium lighting fixture, powder coated.

Customized the length of tube is possible

Eyes friendly CE certificate RoHS standard

CRI90 3SDCM CITIZEN COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

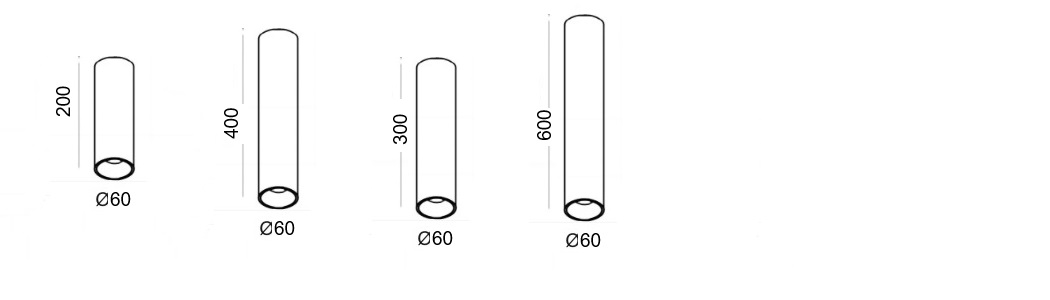

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L08023-5 5W 450lm
60xH200mm
mm		 130mA
L08023-7 7W 630lm
60xH300mm
mm		 150mA
L08023-9 9W 800lm
60xH400mm
mm		 200mA
L08023-10 10W 900lm
60xH600mm
mm		 250mA

FEATURES

Surface mounted spotlight with Ø60mm diameter with an elongated cylindrical housing. Three installation options: trimless, with a decorative trim and surfaced. Aluminium extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. White OR Black color finishing as standard. -- Power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

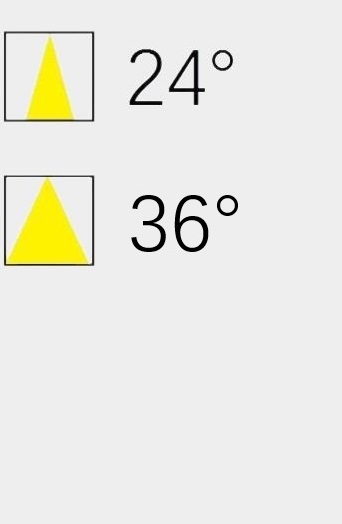

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   130mA
7W   150mA
9W   200mA
10W   250mA
