110lm/W

L05075 General Lighting    IP20

Aluminium extrusion material and powder coating.

Aluminum material with a thickness of 1.0mm -Built in LED Driver -economical version- OSRAM 2835LED CRI85 (192pcs L1200mm), Excellent cooling system. Uniform distribution. The basic model comes in matt white or matt black color finishing, and in length of L1000/L1200,  Ceiling Suspended I Ceiling Mounted installation. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design. Cuttable PC diffuser, it allows installers to cut it to the desired length. The seamless connection creates a uniform appearance without any dark areas or dark point. Standard length of cable L1500mm for ceiling suspended installation. Standard CCT 2700K I 3000K I 3500K I 5000K I 5700K I 6500K Customized Up and Down light.

TECHICAL DATA

  • 2200-3900lm
  • Built-in Driver
  • Aluminium extrusion material and powder coating.
  • OSRAM branded 2835 LED CRI85
  • Ceiling Suspended I Surface Mounted
  • 110lm/W diffuser version
  • DALI I Triac I 0/1-10V Dimmable

Product is Europe Standard & CE Certificate.



INTERIOR LED LINEAR DOWN LIGHTING

L05075

IP20

CLASS III

Surface Mounted I Ceiling Suspended (cable L1500mm)

220-240V 50/60Hz 20V-54V DC

Aluminium extrusion material and powder coating

Eyes friendly CE certificate RoHS standard

OSRAM branded 2835 LED CRI85

Triac I 0/1-10V I DALI dimmable

Customized color finishing is acceptable

Warranty 5 Years

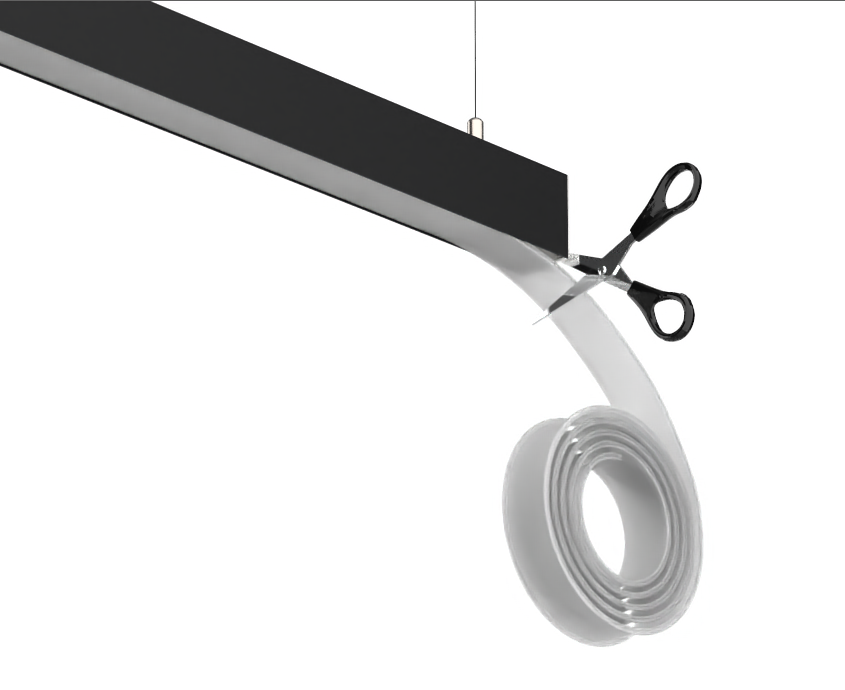

CUTTABLE PC DIFFUSER I UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L05075-20 20W 2200lm
50x75xL1000mm
mm		 500mA
L05075-30 30W 3300lm
50x75xL1200mm
mm		 600mA
L05075-36 36W 3900lm
50x75xL1200mm
mm		 700mA

FEATURES

Aluminum material with a thickness of 1.0mm -Built in LED Driver -economical version- OSRAM 2835LED CRI85 (192pcs L1200mm), Excellent cooling system. Uniform distribution. The basic model comes in matt white or matt black color finishing, and in length of L1000/L1200,  Ceiling Suspended I Ceiling Mounted installation. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design. Cuttable PC diffuser, it allows installers to cut it to the desired length. The seamless connection creates a uniform appearance without any dark areas or dark point. Standard length of cable L1500mm for ceiling suspended installation. Standard CCT 2700K I 3000K I 3500K I 5000K I 5700K I 6500K Customized Up and Down light. LC 38/400-700/54 flexC lp SNC4

Built-in Driver Accessoires Beam Angle Color Temperature Finishes
20W   500mA
30W   600mA
36W   700mA
